• Model NO.：HW
• Drilling Way：Rotary
• Type：Four-Wheel trailer
• Model Number：Hw2000,660
• Drilling Depth：2000
• Max. Output Torque of Rotary Table (Kn：21
• Max. Hoisting Capacity of Single Rope：90
• Input Rotating Speed of Clutch (R/Min：730
• Traveling System：4*5
• Diesel Motor：6135an 150PS
• Electric Motor：Y315s4 110kw

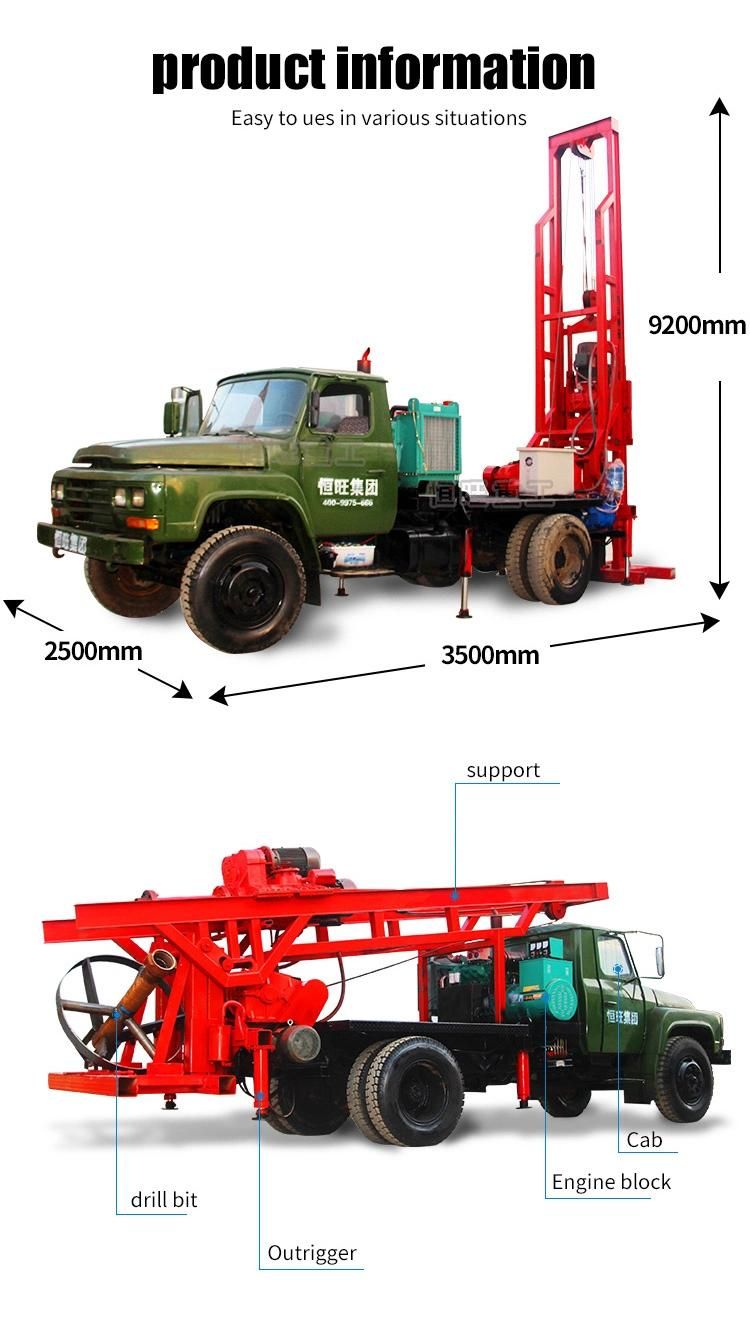

• Overall Dimensions (L*W*H) (mm)：4320*2300*1290
• Net Weight (Exclude Power) (Kg)：7820
• Transport Package：Wooden Case or According to Customer′s Demands
• Specification：CE,ISO
• Trademark：HW
• Origin：Shangdong China
• HS Code：8430412100
• Production Capacity：1000sets,Year

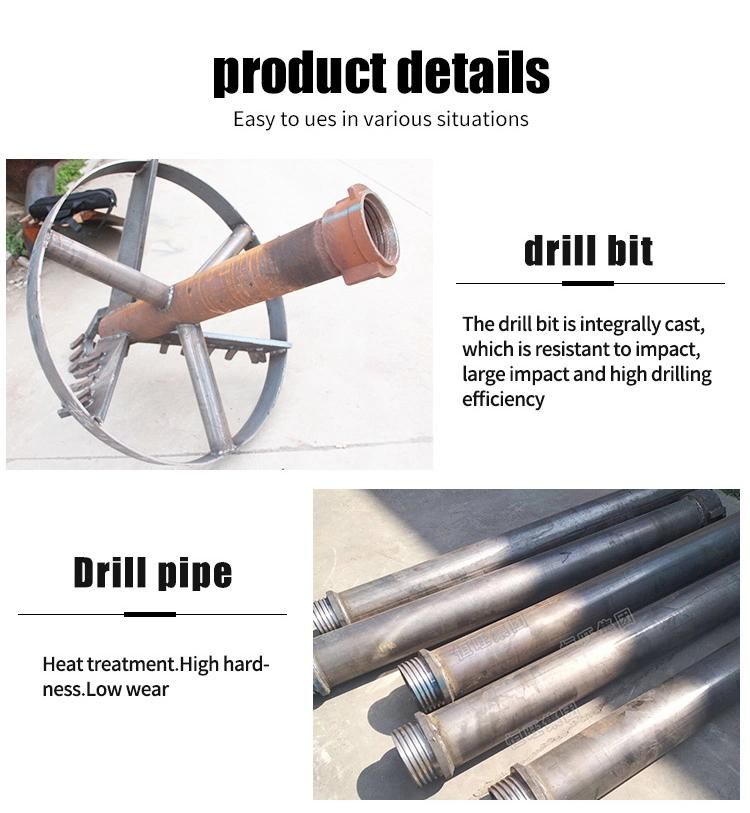

Drilling depth(Φ89mm drill pipe )    (m)
  2000
2000
ID of rotary table                 (mm)
Φ435
Φ660
Rotating speed of rotary table(forward ,reverse)         (r/min)
48  69  110  190
37  52  84  145
Max. output torque of rotary table   (kN.m)
18
21
Max. hoisting capacity of single rope   (kN)
90
90
Hoisting speed of winch(second layer)  (m/s)
0.84  1.90  3.3
0.84  1.90  3.3
Input rotating speed of clutch    (r/min)
730
730
Traveling system
4*5
4*5
Matching Power
Diesel motor
6135AN     150Ps
6135AN     150Ps

Electric motor
Y315S4    110kW
Y315S4     110kW
Overall dimensions  (L*W*H)   (mm)
4000*2300*1290
4320*2300*1290
Net weight (exclude power)    (kg)
