• Model NO.：GS6000-TS
• Type：Trailer
• Engine Power：3*410 kW
• Max Torque：173000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Transport Package：Nude Packing
• Specification：20400*2500*3740 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS6000-TS Type Trailer Engine Power 3*410 kW Max Torque 173000 N·m Max Mud Pump Flow Extra Mud Pump Transport Package Nude Packing Specification 20400*2500*3740 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

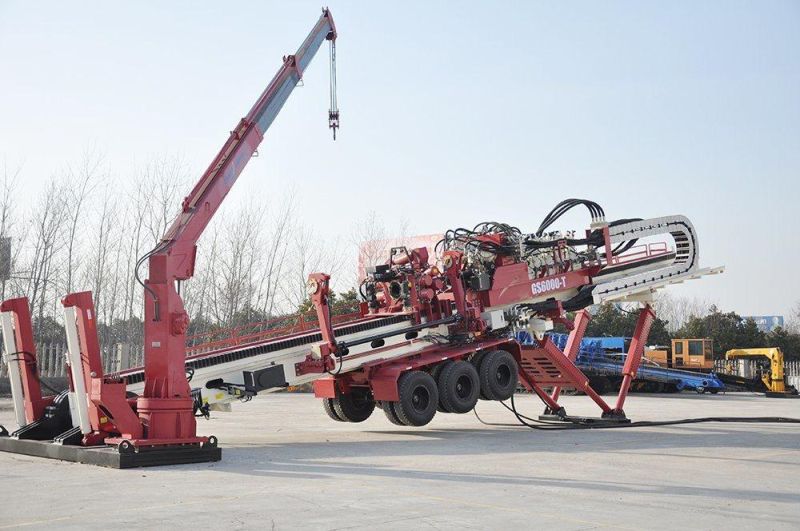

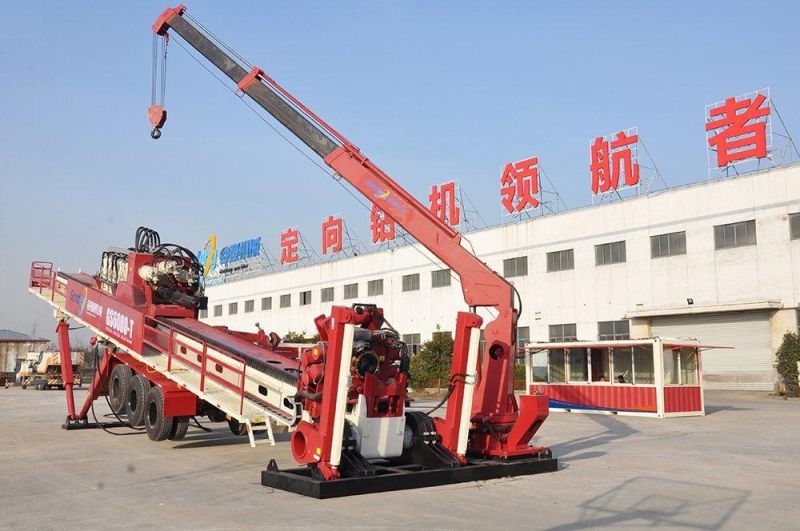

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.Main power

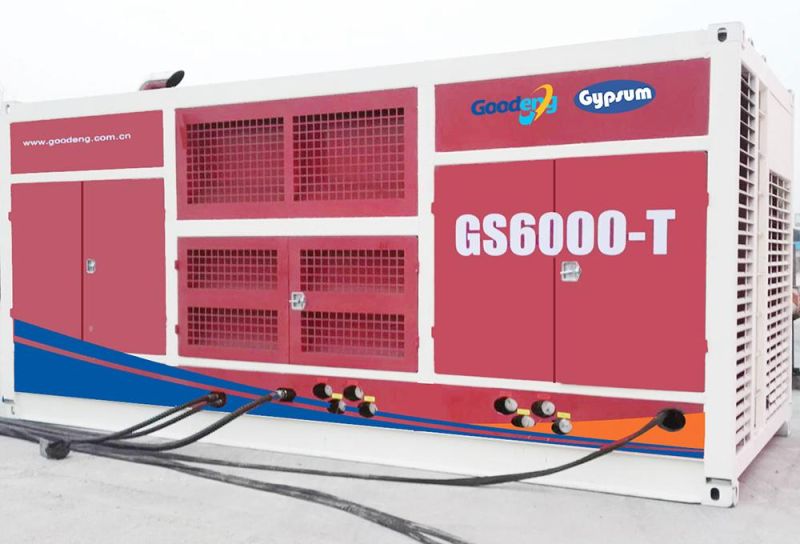

a) The machine is equipped with 410kW*3 sets of Dongfeng Cummins engine, and the electrical-control power control system realizes perfect coordination with hydraulic system power in all kinds of project condition, with strengths of strong power and saving energy. With separated power station, the structure is designed according to container dimension, which is convenient to transport.
b) It realizes the combination of single engine working and double engine working according to project requirements.
c)The diesel engine monitor system is based on several safety protection measures, which is easy to observe, record diesel engine status, and can protect the diesel engine immediately when there is problem or the operation condition is not good for diesel engine.
2.Hydraulic system-
a) Main drive oil pump: It is equipped with originally imported German Rexroth high-pressure large-flow swash plate axial plunger pump, with electronic control of constant power, pressure cutting off, as well as electric proportional displacement control, which realizes flow supply according to the require, avoiding pressure loss and flow loss, and it contains pressure automatic protection, making hydraulic system operation much safer and energy saving.
b) Main control valve: The main switch valve is independently designed according to construction feathers with patent protection. Simple and reliable structure ensures trouble-free operation, with big drift diameter design, less throttling loss, lower temperature, energy saving effect, compact shape, reasonable layout being used to rig power system.
c) Rotation and push-pull hydraulic motor: The well-known and leading standard German Rexroth high pressure axial plunger motor is used for high pressure and low speed condition, and under the condition of pulling pipe it is strong and stable, which can ensure safety and reliability of the construction.
d) Main Hydraulic System: Main hydraulic system compared with closed-circuit system, for high-pressure electric proportional control open-circuit system; there is no pressure difference loss because of no-oil-adding pressure. So the system is more energy saving and the rig ability is much improved.
e) Push-pull rotation control: The speed of power head rotation and push-pull is full proportional linear infinitely variable speed. Working pressure can be regulated by remote control voltage, so it is easy to adjust torque and push-pull force at any time to ensure the safety of project and drilling tools.
f) Walking Reducer Assembly:  Compact high-pressure heavy-loaded walking reducer assembly used in track system with higher reliability and bigger torque provides strong walking and climbing ability, which can adapt to worse ground and slope condition.
g) Auxiliary Hydraulic System: The open-circuit is composed of classic Sauer high-pressure load sensitive oil pump plus proportional control multi-way valve, to ensure unscrewing capacity of clamping. Meanwhile, all auxiliary movement control is more accurate, reliable and stronger.
h) Hydraulic Accessory: Best quality filters with high filtration ability ensures the cleanness of system and extends maintenance interval. Key tube is originally imported from Italy with high-pressure steel wire hose.
i) Quick Tube Connection System: It is originally imported from Italy with high-pressure big diameter quick connector and high-pressure steel wire hose, to ensure quick and reliable connection and disconnection between rig and power station, and during the process small oil leakage can meet crucial environment requirements.
3.Electrical system
a) Software: The software includes a series of independent design of safety control system and auxiliary control software, such as "vehicle self-diagnosis system", "automatic pendulum drilling system", "electrical pressure cutting system (automatic pressure protection)", and "temporary limit automatic cancelling function", which is characterized with more humanized design and strong debugging ability, making full use of rig capacity and enhancing work efficiency.
b) Hardware: It is originally imported from America with controller specialized in construction machine, which can adapt to bad project environment, and it is waterproof, shockproof, and dustproof. Besides, it can also prevent electromagnetic interference, which has already been fully approved of safety of operation, to ensure reliable operation of electrical control.
4.Structure design characteristics
a) Main rig, power station, and operation cabin are detached. Main rig is designed as a crawler to meet the transport regulation.
b) Power station and operation cabin are skid-mounted, and the design of joint conforms to container requirements.

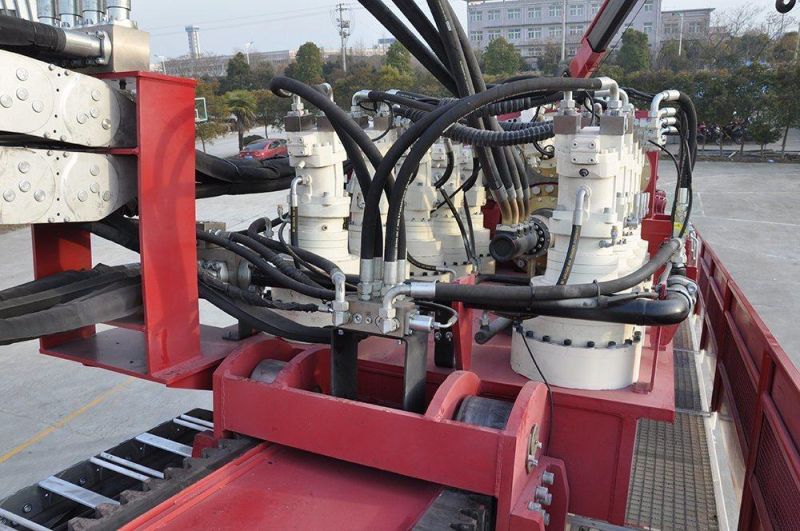

c)10 sets of push & pull motors are equipped with manually high-strength large-torque clutch, so it can be performed alternatively to extend the lifespan of motor and reducer, and rotation motor is equipped with two clutches.
d) Rack & pinion is adopted for the transmission type of driving head.

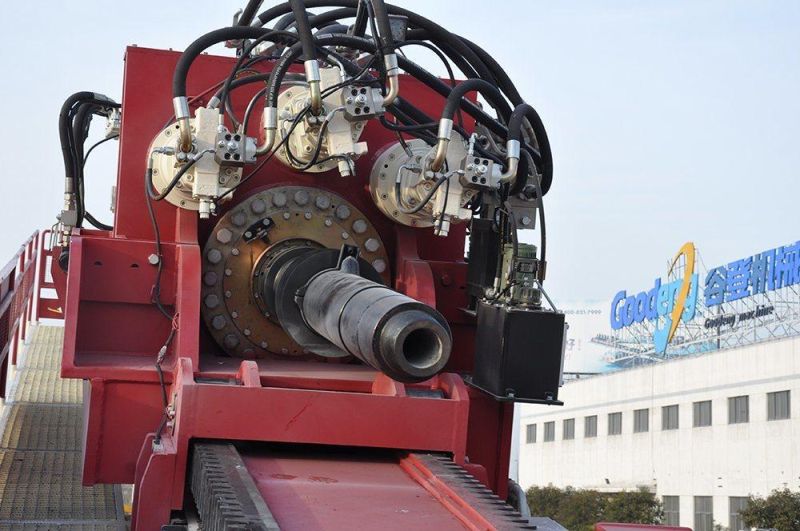

e) The main shaft is floating for conveniently unbuckling and eliminating alternating stress to extend lifespan of rods.

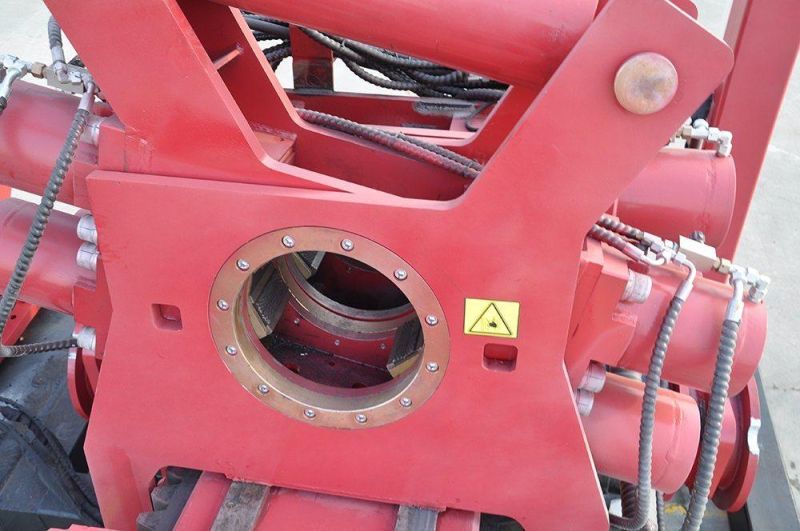

f) Clamp is floating in the whole process and rear and front clamp can be separated. The grip holder can be change according to rod dimension.
g) Onboard Wireline system.
h) Equipped with slurry pressure release device.

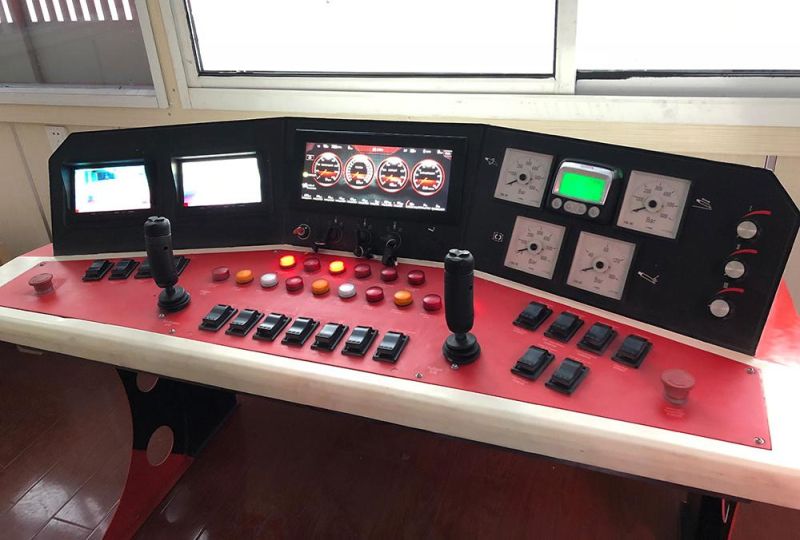

i) Independent operation cabin can accommodate a few people, spacious, wide-view, and equipped with air-conditioner.
j) Equipped with aisle and guardrail on the side and end of the beam for safety purpose.
k) Optional separated Mud pump station and mud mixing system.

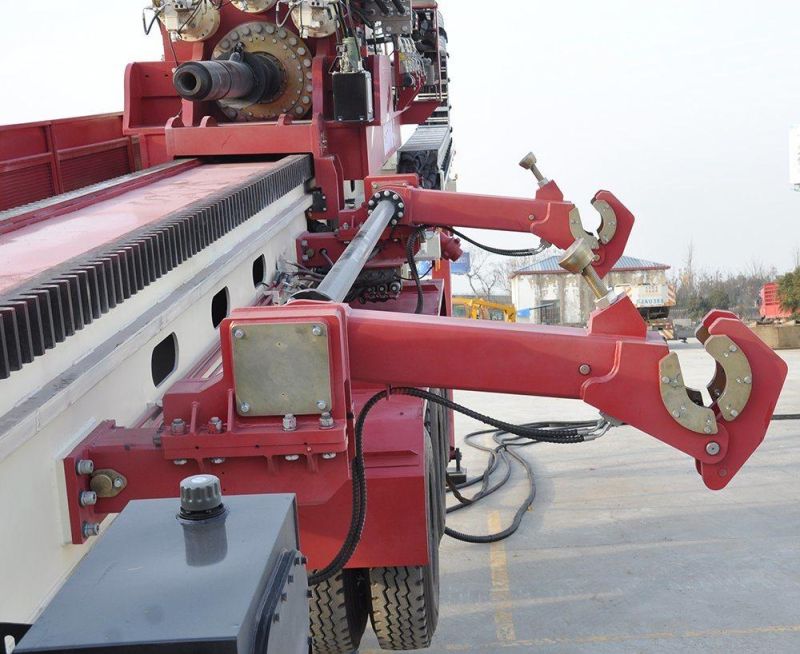

l) Equipped with manipulator to enhance the efficiency of loading/unloading drill rods.
m) Equipped with high wear-resistance and shock-resistance alloy steel rack & pinion


[Main Technical Parameters]


Rig Weight	52 t	Rig Dimension(L*W*H)	20400*2500*3740 (mm)
Engine Power	3*410 kW	Max. Working Pressure	35 MPa
Max. Torque	173000 N·m	Max. Push & Pull Force	6700 kN
Max. Rotation Speed	90 rpm	Max. Push & Pull Speed	40 m/min
Max. Clamping Force	1500 kN	Max. Unscrewing Force of Pipe Jaw	420000 N·m
Drill Pipe Diameter	Φ168mm-Φ194mm	Max. Length of Drill Pipe	9.6 m
Drill Incidence Angle	8°-18°	Max. Mud Pressure	20 MPa
Main Spindle Floating Distance	110 mm	Max. Mud Flowing Volume	3000 L/min
Power Station Size(L*W*H)	6100*2500*2700 (mm)	Mud Pump Channel Diameter	4''
Permitted Enviroment Humidity	> 90%	Permitted Working Temperatue	-30°~50°C
Max. Aperture Diameter	Φ2000mm(Soil Depended)	Max. Crossing Length	2500m(Soil Depended)

[Product Photos]

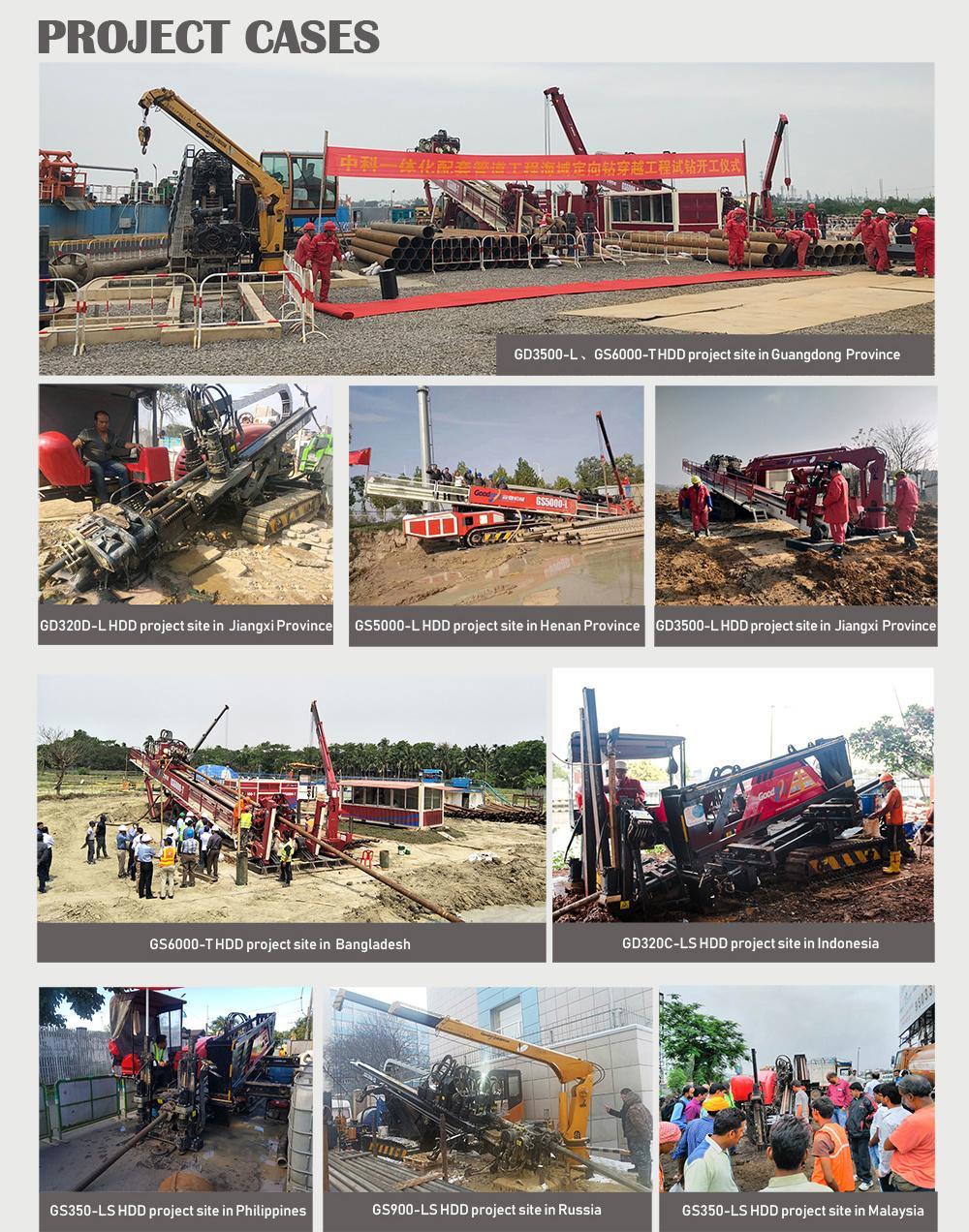

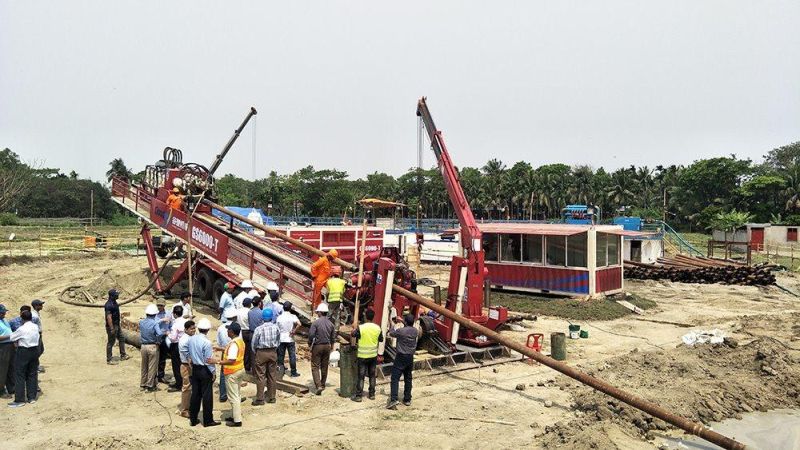

[Cases]




[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is a national high-tech enterprise, which is specialized in research & development, manufacturing, sales and service for trenchless equipment. Our main products are GD/GS series of horizontal directional drilling machine and accessories. As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which has filled in multiple domestic and foreign technical blanks. Many kinds of products have obtained national and provincial progress prize in science and technology of machinery industry. In 2018, "Goodeng Machine" had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.

[Competitive Advantage]
  1. Competitive Price:  We are the professional manufacturer of horizontal directional drilling machine. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occurs first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
