Photovoltaic Pile Driver Use for Solar PV Project
Taian Longye Import and Export Trade Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
Base Info
- Model NO.：MZ130Y-2
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Screw Pile Length：0-3m
- Screwing Power：5600nm
- Pile/Drill Diameter：90-400mm
- Work Efficiency：200-450, Day
- Transport Package：20" Container
- Specification：4500*1970*2440mm
- Trademark：LongYe
- Origin：Shandong
- HS Code：8430419000
Description
Basic Info.
Model NO. MZ130Y-2 Drill Hole Depth <100m Bit Type Diamond Bit Drilling Way Rotary Screw Pile Length 0-3m Screwing Power 5600nm Pile/Drill Diameter 90-400mm Work Efficiency 200-450/ Day Transport Package 20" Container Specification 4500*1970*2440mm Trademark LongYe Origin Shandong HS Code 8430419000Product Description
Product IntroductionMZ130Y-2 Photovoltaic Pile Driver Use For Solar Pv Project
- Drill maximum 3m long ground screw piles.
- Drill 130-400mm diameter auger spiral soil holes.
- Drill 90-350mm diameter DTH stone rocky ground holes .
- Working on flat ground or maximum 15 degree slope ground
| Air pressure (Mpa) | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
| Air consumption (m3/min) | 10-26 |
| Bore diameter(hammer) (mm) | 90-300mm |
| Bore depth (m) | 20-100 |
| Once promotion(mm) | 2000 |
| Screw pipe diameter (mm) | 76/89 |
| For rock | F=6-20 |
| Bore diameter(screw)(mm) | Max 400mm |
| Skid pitch(.) | 100 |
| Swinging angle of skid(.) | Left and right total 40° |
| Bore depth(m) | 0-30 |
| Screw pipe diameter(mm) | 130-400 |
| Rotation speed<=""> | 0-70 |
| Host power(kw) | 56 |
| Climb ability(.) | 35 |
| Walk speed(kw/h) | 0-2.5 |
| weight(Kg) | 4710 |
| Dimension(L*W*H)mm | 4460*1950*2460 |

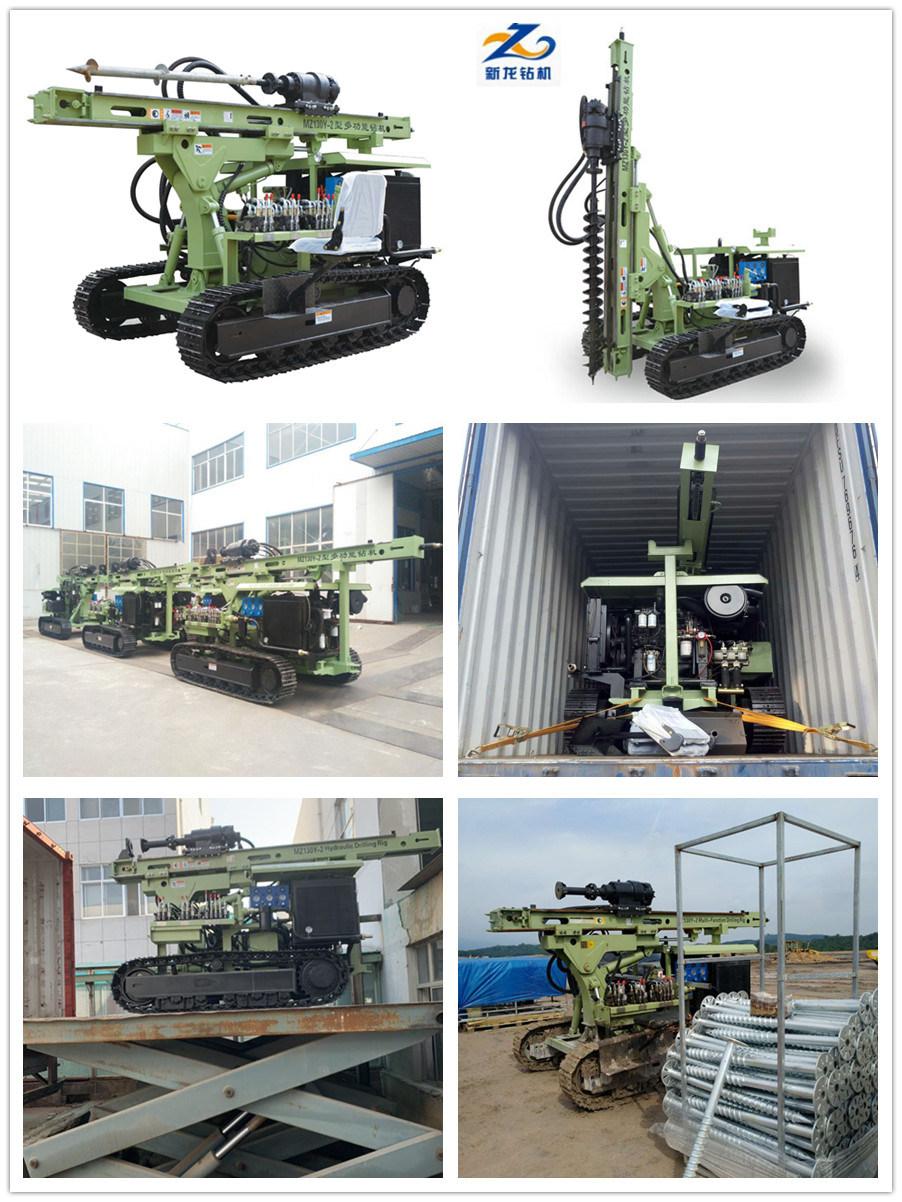

Machine photos
