Drilling Rig

Hard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting Hole

Taian Longye Import and Export Trade Co., Ltd.
  • After-sales Service:Available
  • Warranty:1 Year
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Drill Hole Diameter:90-150mm
  • Drill Hole Depth:0-30m

Base Info

  • Model NO.:D100YA2-2
  • Bit Type:Diamond Bit
  • Drilling Way:Rotary
  • Drilling Diameter(mm):90-130
  • Drilling Depth(M):30
  • Weight:2900kg
  • Dimension(L*W*H)mm:4100X2030X2020
  • Travelling Speed(Km/H):2
  • Once Promotion(M):2
  • Climb Ability:30 Degree
  • Chassis Ground Clearance:260mm
  • Diesel Power(Kw):33
  • Skid Pitch:100degree
  • Skid Swing:Left35,Right10
  • for Rock:F=6-20
  • Transport Package:20" Container
  • Trademark:LongYe
  • Origin:Shandong, China
  • HS Code:8430419000
  • Production Capacity:30 Sets,M

Description

Bore diameter(mm)

90-130

Bore depth(m)

30

Walk speed(km/h)

2

Once promotion(mm)

2000

Grade ability (°)

30

Air pressure(Mpa)

0.7-1.4

Chassis ground clearance(mm)

260

Air consumption(m³/min)

7-15

Skid pitch(°)

100

Host Power (Kw)

33

Skid tilt swing (°)

L35,R10

For rock(F)

6-20

Skid compensation(mm)

900

Dimension(L*W*H)(mm)

4300*2130*2160

Weight(Kg)

2900


       D100YA2-2Fcrawler hydraulic drilling rig, adopts new type hydraulic rotary motor, hashigh rotary speed, large torque and low failure rate. This rig has low airconsumption, convenient for shifting holes, uses air filter and oil filtertotalthree-stage filters to reduceengine wearing , increase working life of the diesel engine. The rig structureis compact, the minimum moving radius is 2.8m, and the skid mast has compensationfunction. when drilling, the skid mast supported on the ground that guarantee gooddrilling stability.

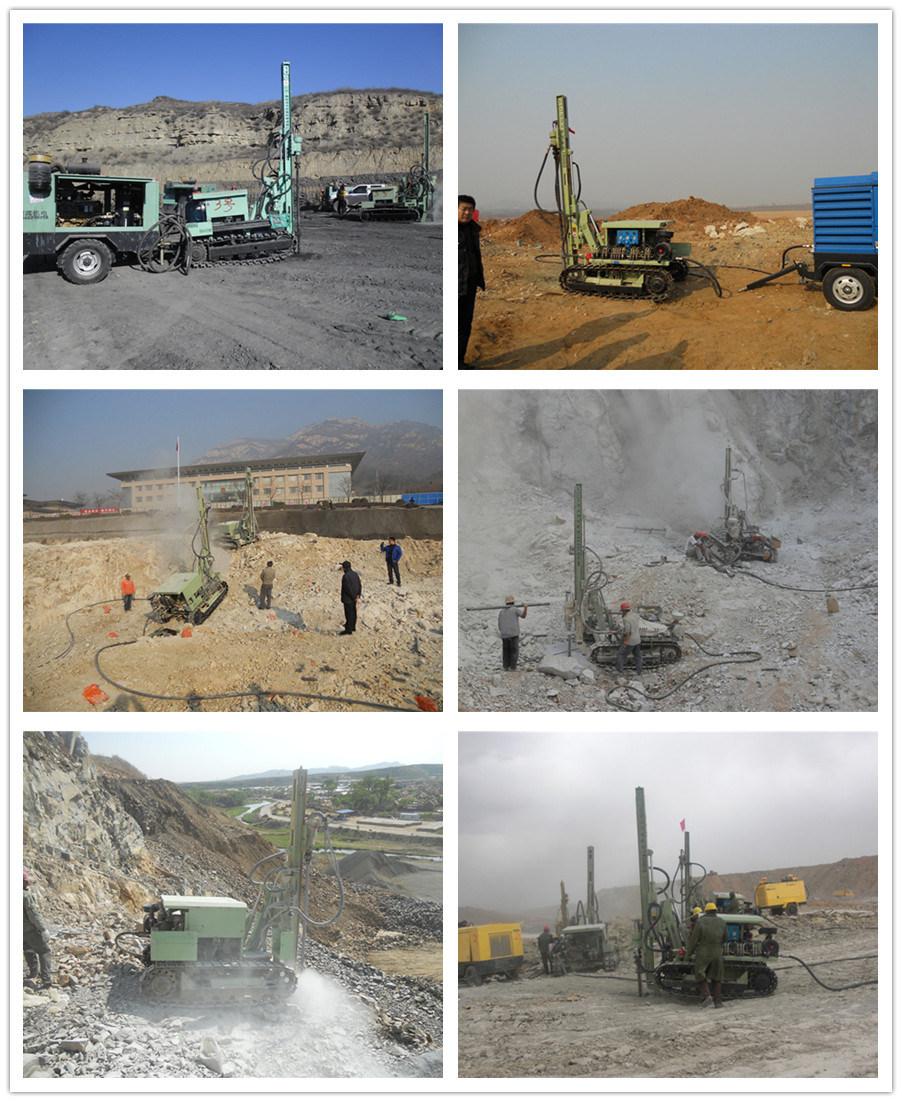

The drilling rig is mainly capable for open mining, water conservancy, power plants, roadbuilding and other rock blasting holes drilling .



Hard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting Hole

Hard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting HoleHard Rock Quarry Drilling Rig Machine Used for Quarry Mining Mountain Blasting Hole

Remark:

1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days;  Machine manufacturing time: 5-7 days;
4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 2 sets.

....................................................................................................... .

R F Q



Q1: What's your delivery time?

A: 15 days to produce, within 3 days if in stock.



Q2: What's methods of payments are accepted?

A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.



Q3: What about the shipments and package?

A: 40' container
Machine in nude packing, spare parts in standard export wooden box.



Q4: Have you got any certificate?

A:We have got ISO,CE certificate.



Q5: How to control the quality?

A: We will control the quality by ISO and CE requests.



Q6: Do you have after-sale service and warranty service ?

A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.

Warranty is one year for the machine.



Q7: Can I trust your company ?

 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !

      We are factory manufacturer, and we have our own export license .
