Hydraulic Micropile Drilling Machine with Low Cost

Taian Longye Import and Export Trade Co., Ltd.
  • After-sales Service：Available
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Screw Pile Length：0-3m

Base Info

  • Model NO.：MZ130Y-2
  • Screwing Power：5600nm
  • Pile/Drill Diameter：90-400mm
  • Work Efficiency：200-450, Day
  • Transport Package：20" Container
  • Specification：4500*1970*2440mm
  • Trademark：LongYe
  • Origin：Shandong
  • HS Code：8430419000

Description

Basic Info.

Model NO. MZ130Y-2 Screwing Power 5600nm Pile/Drill Diameter 90-400mm Work Efficiency 200-450/ Day Transport Package 20" Container Specification 4500*1970*2440mm Trademark LongYe Origin Shandong HS Code 8430419000

Product Description

Product Introduction

MZ130Y-2 Hydraulic Micropile Drilling Machine With Low Cost
  • Drill maximum 3m long ground screw piles.
  • Drill 130-400mm diameter auger spiral soil holes.
  • Drill 90-350mm diameter DTH stone rocky ground holes .
  • Working on flat ground or maximum 15 degree slope ground
Technical Data
Air pressure  (Mpa)0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Air consumption (m3/min)10-26
Bore diameter(hammer)  (mm)90-300mm
Bore depth  (m)20-100
Once promotion(mm)2000
Screw pipe diameter  (mm)76/89
For rockF=6-20
Bore diameter(screw)(mm)Max 400mm
Skid pitch(.)100
Swinging angle of skid(.)Left and right total 40°
Bore depth(m)0-30
Screw pipe diameter(mm)130-400
Rotation speed<="">0-70
Host power(kw)56
Climb ability(.)35
Walk speed(kw/h)0-2.5
weight(Kg)4710
Dimension(L*W*H)mm4460*1950*2460

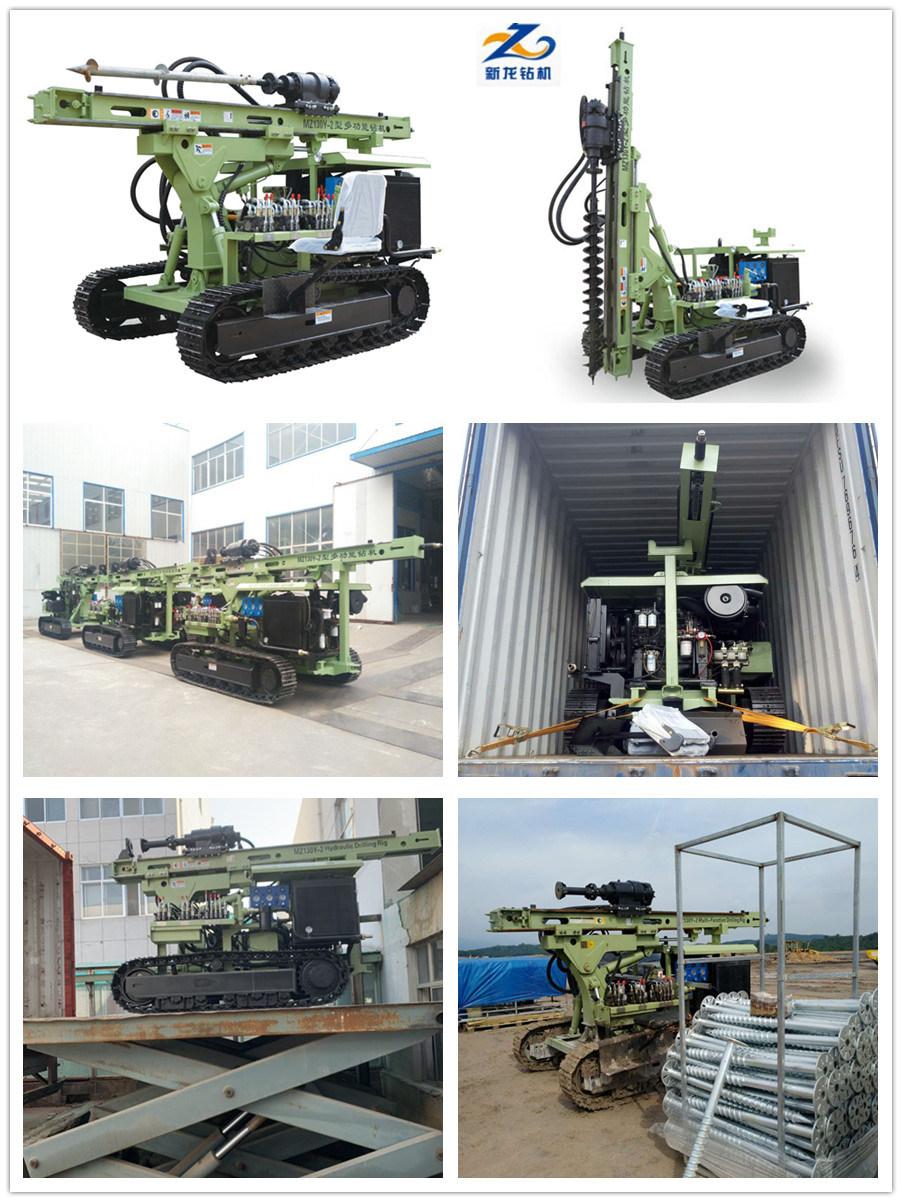

Machine photos
