• Model NO.：HW200D
• Drilling Way：Impactor
• Type：Crawler
• Drilling Diameter：110-303mm
• Drill Pipe Length：3m
• Lifting Force：20t
• Skateboard Travel：4440mm
• Slow Lifting Speed：4.2m , Min
• Rotary Output Speed：57 ~ 94turn , Minute
• Walking Speed：0 ~ 2km , H
• Transport Package：Container
• Origin：Shandong
• Production Capacity：1000

Basic Info.

Model NO. HW200D Drilling Way Impactor Type Crawler Drilling Diameter 110-303mm Drill Pipe Length 3m Lifting Force 20t Skateboard Travel 4440mm Slow Lifting Speed 4.2m / Min Rotary Output Speed 57 ~ 94turn / Minute Walking Speed 0 ~ 2km / H Transport Package Container Origin Shandong Production Capacity 1000

Product Description

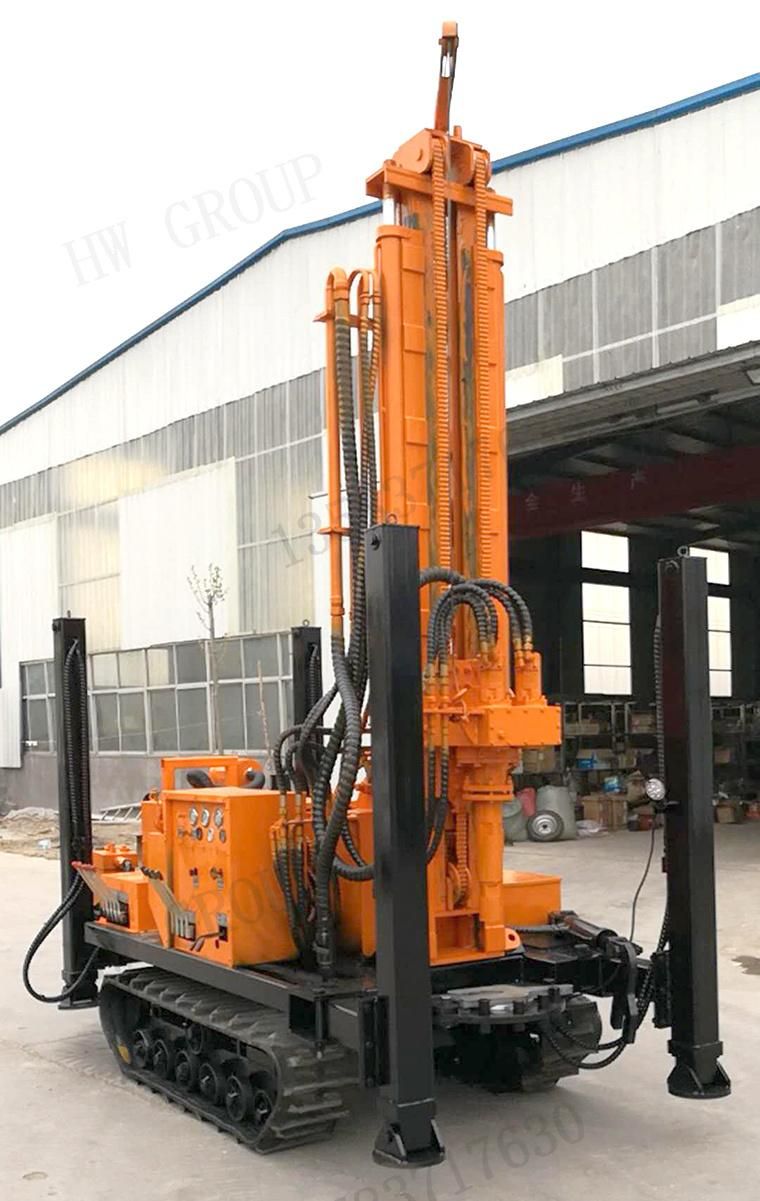

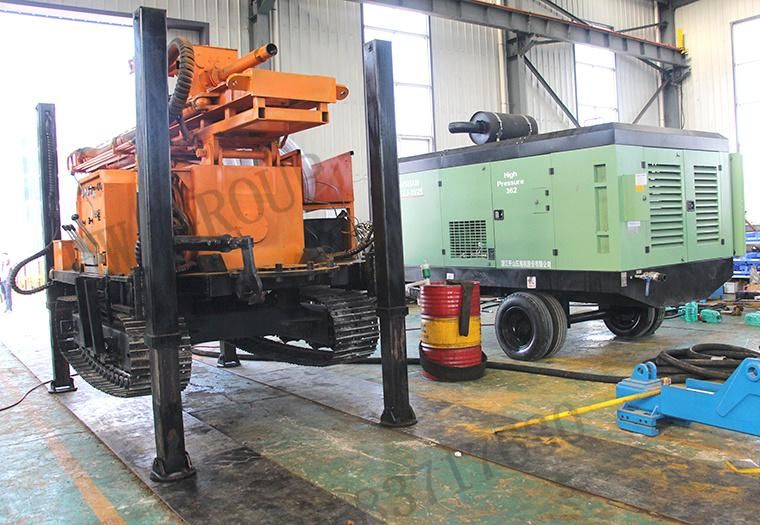

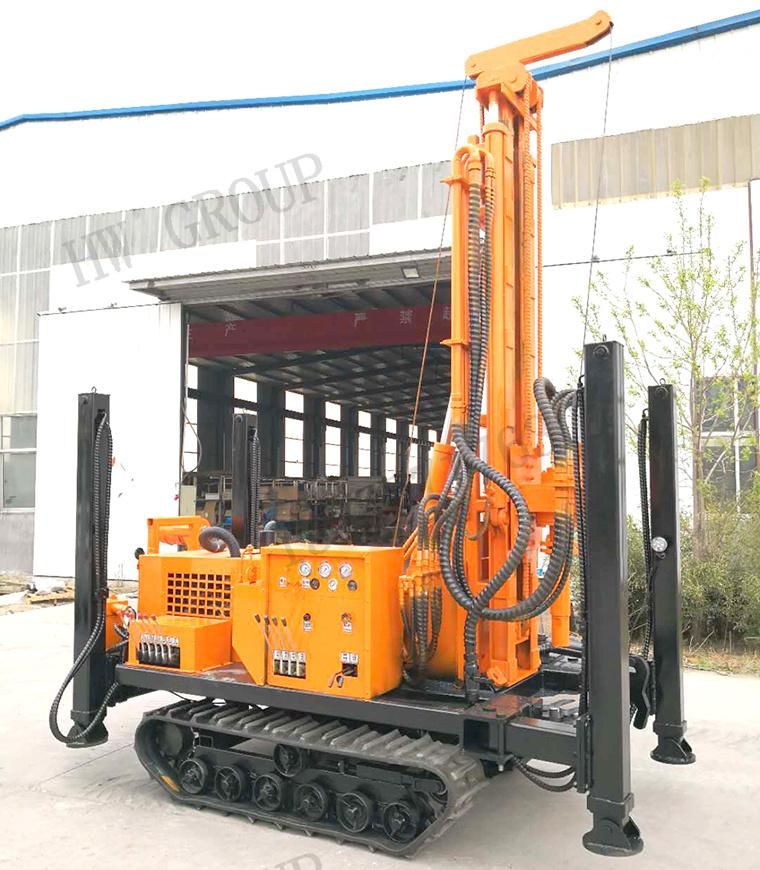

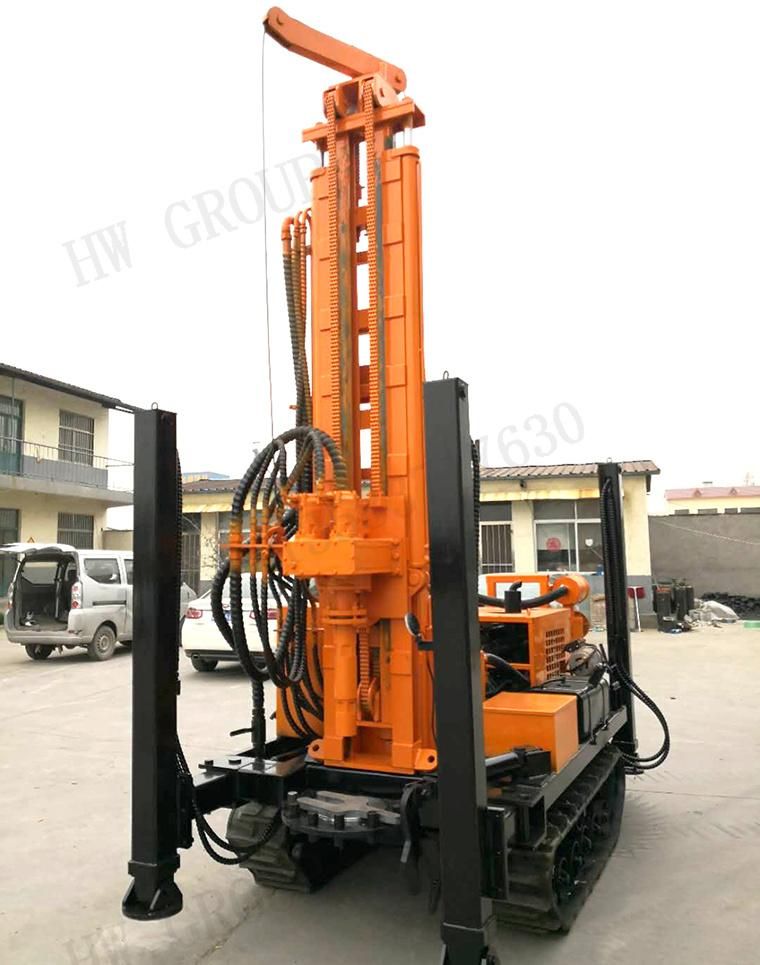

     Crawler mounted DTH water well drilling machine drilling rig for rock
The rig adopts new type of hydraulic technology, supporting high torque hydraulic motor rotation and large diameter hydraulic cylinder to promote, a factory engine for hydraulic system of powered, two stage air filter and connected with compressed air inlet design and prolong the service life of the diesel engine. Unique pump set design to facilitate maintenance, reduce maintenance costs. Centralized control of the hydraulic control table, easy to operate. The series of drilling rig used excavator crawler chassis, off-road performance is strong. Independent module design, can make drilling rig installed on the truck, increase its maneuverability.



The specification of Crawler mounted DTH water well drilling machine drilling rig for rock :

Technical parameters Unit HQZ400L

Maximum Drilling Depth

Drilling diameter mm φ110-303

Working wind pressure MPa 1.05-2.46

Air consumption per cubic meter / minute 16-54

Drill pipe length meter 3m

Drill diameter mm φ102 / φ89 / φ76

Push the shaft pressure ton 0 ~ 4.4

Lifting force tons 20

Outrigger Cylinders Pull Up Tons 60 (4pcs)

Outlet Cylinder Stroke 1.4

Skateboard travel mm 4440

Slow lifting speed m / min 4.2

Slow propulsion speed m / min 0 ~ 8.9

Fast lifting speed meters / min 37.8

Fast advance speed m / min 80.4

Rotary Output Torque Bull Rice 5700

Rotary Output Speed Turn / Minute 57 ~ 94

Hoist lifting capacity

Diesel model ---- YC6B125-K10

Diesel engine parameters ---- 90Kw / 2200rpm

Walking speed km / h 0 ~ 2

Climbing ability

Drilling weight tons 8.2

Drilling machine dimensions meters 4.8 × 2 × 2.75

Applicable condition Loose layer and bedrock
