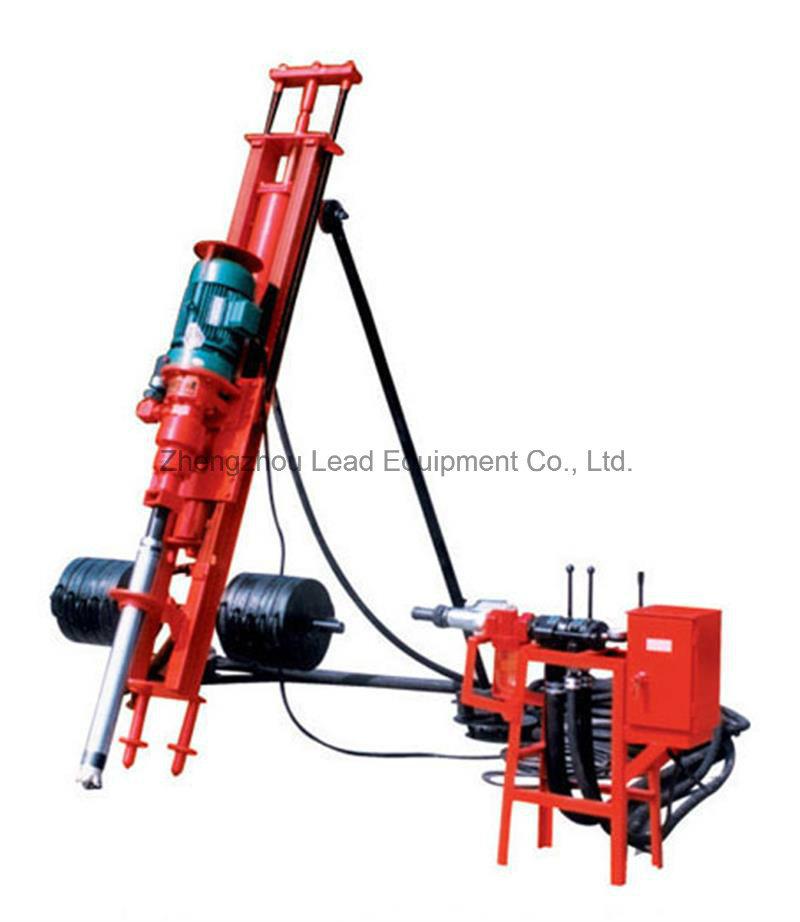

Easy Operate and Efficient Rotary Deep Rock Drilling Rigs
Zhengzhou Lead Equipment Co., Ltd.- Certification：CE
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：80-100mm
- Drill Hole Depth：20-30m
- Bit Type：Diamond Bit
Base Info
- Model NO.：LD 100
- Drilling Way：Rotary
- Drill Rod：60*1000mm
- Rotary Speed：0-62rpm
- Working Pressure：0.5-0.7MPa
- Air Consumption：>6m3,Min
- Lifting Force：9600n
- Power：4kw
- Performance：Excellent
- Color：Customized
- Transport Package：Standard Export Packing
- Specification：ISO, CE
- Trademark：Leadcrete
- Origin：Henan China
- HS Code：84303900
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. LD 100 Drilling Way Rotary Drill Rod 60*1000mm Rotary Speed 0-62rpm Working Pressure 0.5-0.7MPa Air Consumption >6m3/Min Lifting Force 9600n Power 4kw Performance Excellent Color Customized Transport Package Standard Export Packing Specification ISO, CE Trademark Leadcrete Origin Henan China HS Code 84303900 Production Capacity 100 Sets/MonthProduct Description
easy operate and Efficient Rotary deep Rock Drilling Rigs
Description:

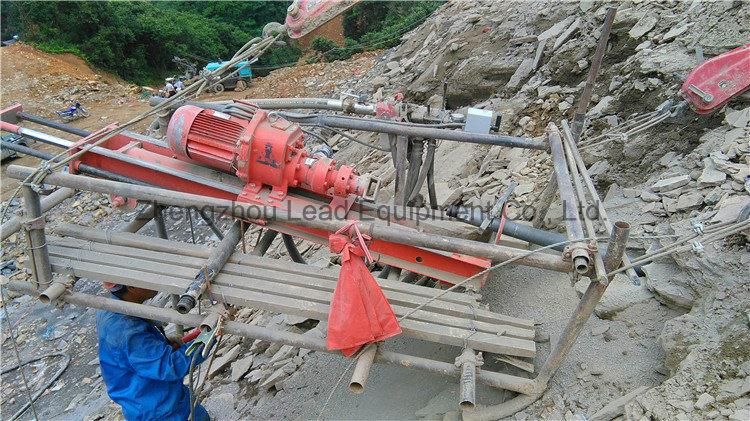

The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects., national defense projects, irrigation projects, road construction and etc. Our down-the-hole drill is ideal equipment for down-hole blasting.
Technical data:
| Drilling diameter | 80-100mm |
| Drilling depth | ≥20m |
| Rotating speed | 0-62rpm |
| Working pressure | 0.5-0.7Mpa |
| Air consumption | >6 m³/min |
| Lift power | 9600N |
| Motor power | 4kw |
| Overall demension | 2350*430*620mm |
| Weight | 400Kg |
