• Model NO.：HW
• Drilling Way：Impactor
• Type：Water Well Drill Rig
• Model：Hqz300
• Max. Drilling Diameter：70-300mm
• Max. Drilling Depth：200 M
• Total Power：7.5 Kw
• Usage：Water Well
• Power Type：Air Compressor
• Transport Package：Wooden Case
• Specification：ISO
• Trademark：HW
• Origin：Shangdong China
• HS Code：84304122
• Production Capacity：50000set,Year

Basic Info.

Model NO. HW Drilling Way Impactor Type Water Well Drill Rig Model Hqz300 Max. Drilling Diameter 70-300mm Max. Drilling Depth 200 M Total Power 7.5 Kw Usage Water Well Power Type Air Compressor Transport Package Wooden Case Specification ISO Trademark HW Origin Shangdong China HS Code 84304122 Production Capacity 50000set/Year

Product Description

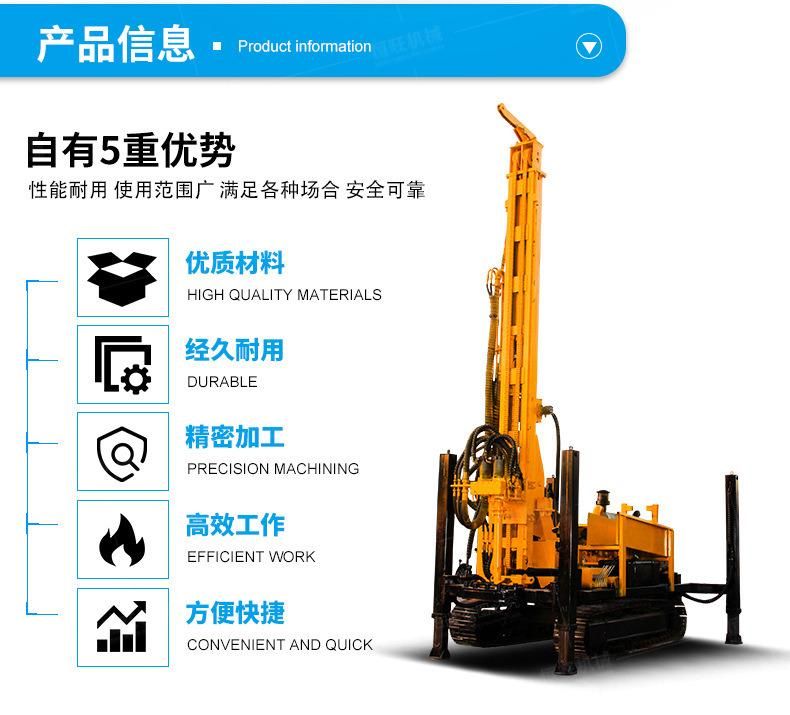

1: Small size, light weight, easy to install.
2: three major components, host, pumping station, console.
3: In the original transport, prospecting can be put into production, the overall structure of the mine play a protective role. Can also be used for 0-90 degree drilling on the surface.
4: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.
5: The use of box-type into the rack, grips to step up, power head rotary drilling, tank pull drill,
Save bulky rigs.
6: With the linkage function, centralized control through the console, simple and safe, Promise speed.
7: Hollow shaft design, the length of the drill pipe is not limited by the rig. Can be drilled at any angle of 360 °.
8: disassembly is good, easy to move and transport

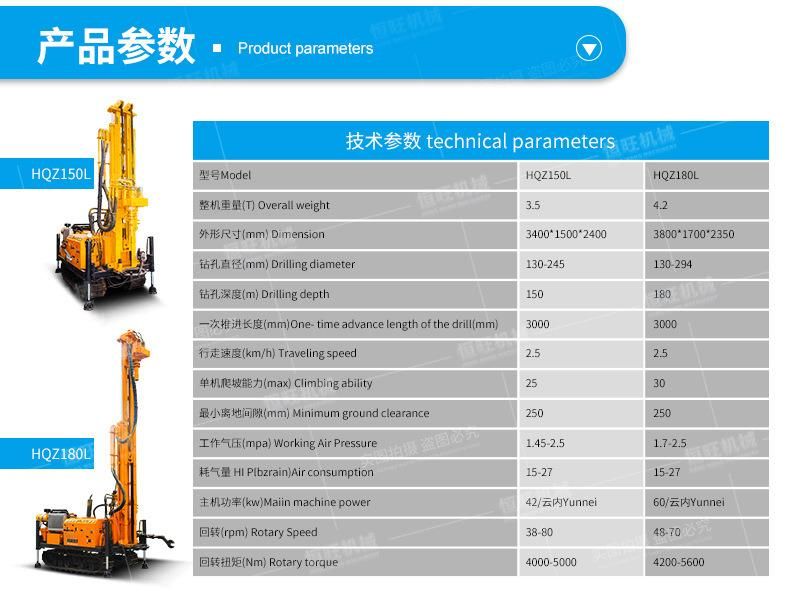

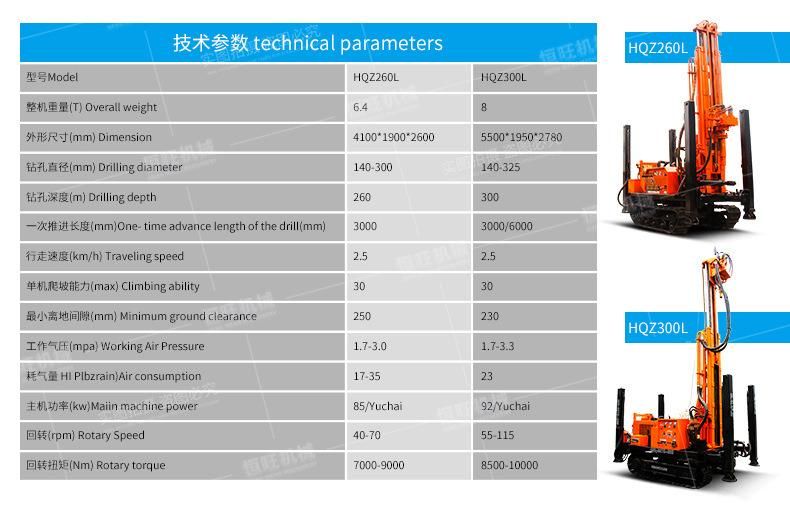

Weight    8.7T
Size    5300*1900*2700mm
Drill diameter    130-245mm
Drill depth    140m
Push length per time    400mm
Walking speed    6000m/h
gradeability    2.5
Min. ground clearance    30mm
Working pressure    1.7-3.5mpa
air consumption    17-35 cbm/min
Power    95kw
Rotation speed    45-75 RPM
Rotation torque    9000-10000N.m
