Horizontal & Vertical Pneumatic Mobile Rock Drill Machine
Xiamen Bestlink Factory Co., Ltd.- Usage：Coal, Ore
- Power Type：Drill
- Type：Drilling Machine
- Condition：New
- Color：as You Request
- Function：New
Base Info
- Model NO.：BL28-A
- Gross Weight：230-1300kgs
- Length of Track：4-5.8m
- Mining Object：Coal Machinery
- Transport Package：Pallet
- Specification：CE
- Trademark：BESTLINK
- Origin：China
- HS Code：84305039
- Production Capacity：1000sets Per Year
Description
Basic Info.
Model NO. BL28-A Gross Weight 230-1300kgs Length of Track 4-5.8m Mining Object Coal Machinery Transport Package Pallet Specification CE Trademark BESTLINK Origin China HS Code 84305039 Production Capacity 1000sets Per YearProduct Description
1. Light-weight, for both primary drilling and sectioning of blocks.2. Horizontal orv ertical operations.
3. Equiped with 1-4 rock drill.

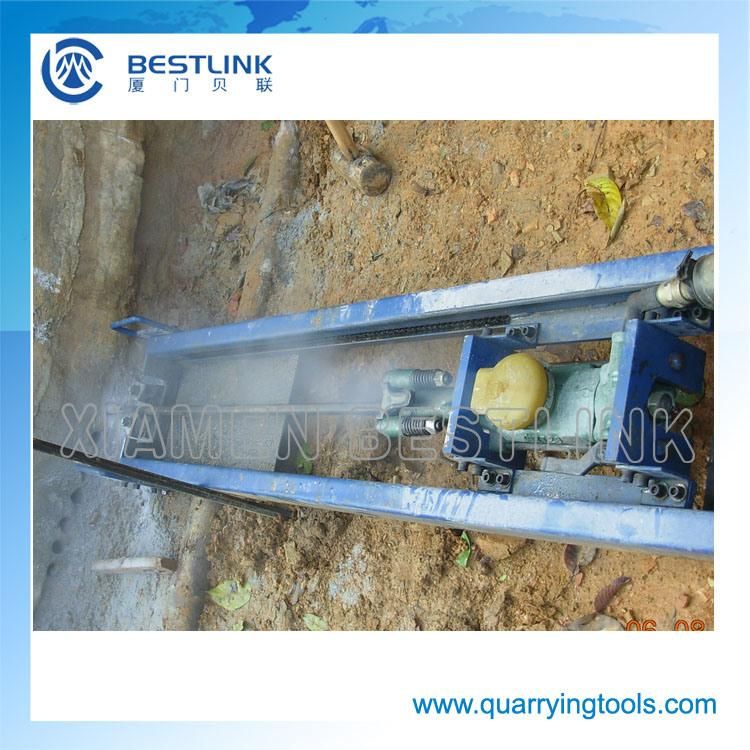

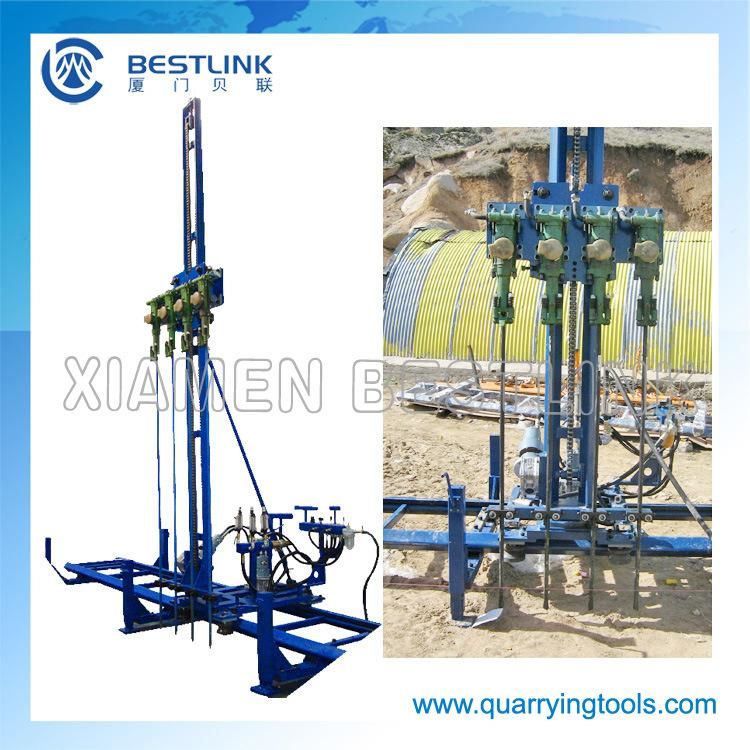

BL28-A/BLF28-A pneumatic mobile light-weight rock line drill
Pneumatic light-weight mobile rock drill is ideal both for primary cutting and sectioning of
Blocks. It is designed for horizontal and vertical drilling operations. Since it is one-man
Operated, it minimizes physical, fatigue, waste materials, energy consumption while
Increasing the daily output of blocks.

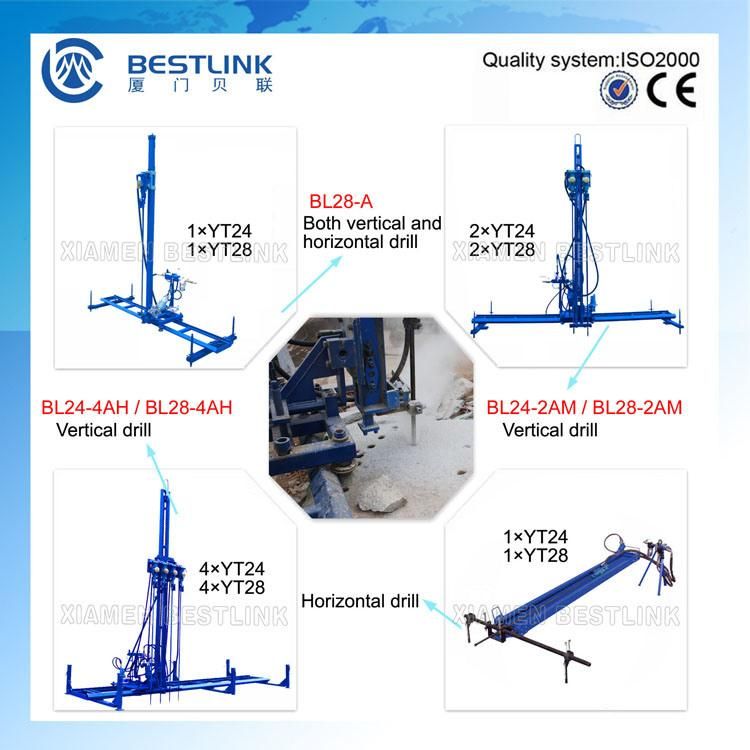

| Model | BL28-A | BL24-2AM | BL28-2AM | BL24-4AH | BL28-4AH | |
| Rock drill type | YT28 | YT24 | YT28 | YT24 | YT28 | |
| Quantity of rock drill | set | 1 | 2 | 2 | 4 | 4 |
| Starting drill steel | m | 2.4 | 2.4 | 2.4 | 3.2 | 3.2 |
| Following drill steel | m | 3.2 | 3.2 | 3.2 | 4.8 | 4.8 |
| 4.8 | 4.8 | 4.8 | 5.6 | 5.6 | ||
| 6.4 | 6.4 | 6.4 | 7.2 | 7.2 | ||
| Air consumption | L/s | 81 | 135 | 160 | 270 | 320 |
| Length of track | m | 4 | 4 | 5.8 | 5.8 | 5.8 |
| Weight rock drill excluded | kg | 230 | 410 | 600 | 1200 | 1300 |
