Yt28 Air Leg Hand Held Pneumatic Rock Drill

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：<10m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Rotary Drilling Rig

Base Info

  • Model NO.：YT28
  • Model：Yt28
  • Weight：26kg
  • Length：661mm
  • Cylinder Dia：φ80 (mm)
  • Piston Stroke：60 (mm)
  • Working Pressure：0.4~0.5 (MPa)
  • Air Pipe (Inner Dia )：25mm
  • Water Pipe (Inner Dia )：13mm
  • Drill Bit Dia：34-42mm
  • Shank Dimensions(Hex*Length)：22*108+1mm
  • Usage：Ore, Coal
  • Power Type：Pneumatic

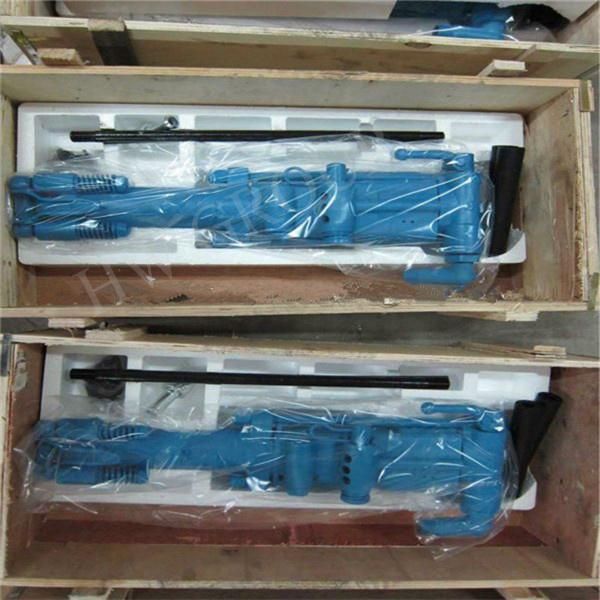

  • Transport Package：Wooden Case
  • Specification：CE
  • Trademark：HW
  • Origin：Shangdong China
  • HS Code：8430390000
  • Production Capacity：50000set,Year

Description

Basic Info.

Model NO. YT28 Model Yt28 Weight 26kg Length 661mm Cylinder Dia φ80 (mm) Piston Stroke 60 (mm) Working Pressure 0.4~0.5 (MPa) Air Pipe (Inner Dia ) 25mm Water Pipe (Inner Dia ) 13mm Drill Bit Dia 34-42mm Shank Dimensions(Hex*Length) 22*108+1mm Usage Ore, Coal Power Type Pneumatic Transport Package Wooden Case Specification CE Trademark HW Origin Shangdong China HS Code 8430390000 Production Capacity 50000set/Year

Product Description

YT28 air leg rock drill


Product Introduction

YT28 Rock Drill Feathures:
1.The rock drill is  a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

YT28 Rock Drill Application:

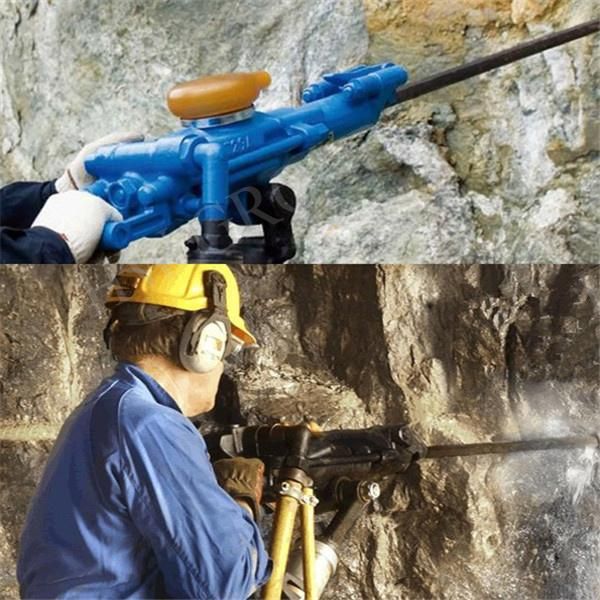

It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.

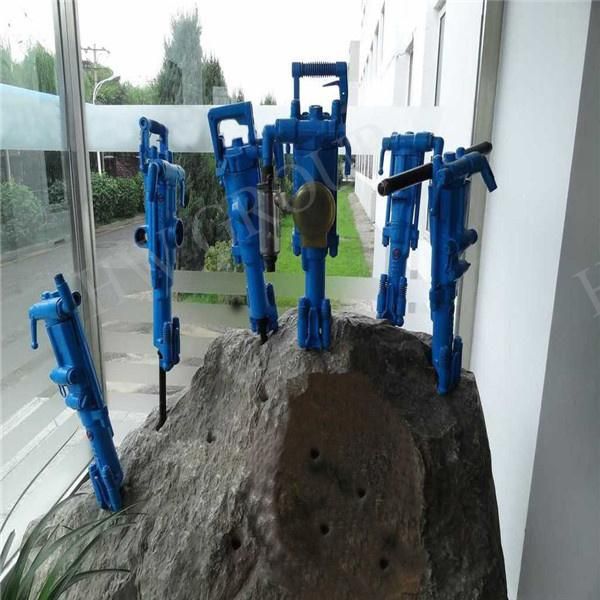

Yt28 Air Leg Hand Held Pneumatic Rock Drill
Yt28 Air Leg Hand Held Pneumatic Rock Drill
Yt28 Air Leg Hand Held Pneumatic Rock Drill

Technology Parameters

Weight
≈ 26 kg

Length
661mm

Cylinder dia
80mm

Piston stroke
60mm

Air pressure
0.4- 0.63MPa

Impact frequencey
≥ 37Hz

Air consumption
≤81L/S

Air pipe (inner dia )
25mm

Water pipe (inner dia )
13mm

Drill bit dia
34-42mm

Shank dimensions(hex*length)
22*108+1mm
