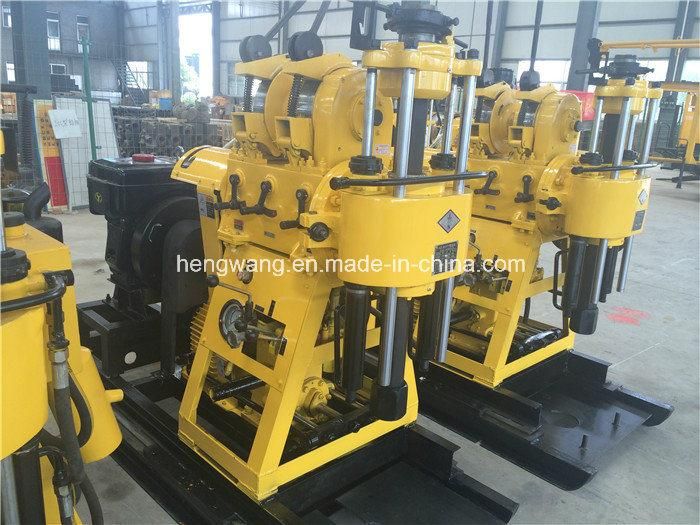

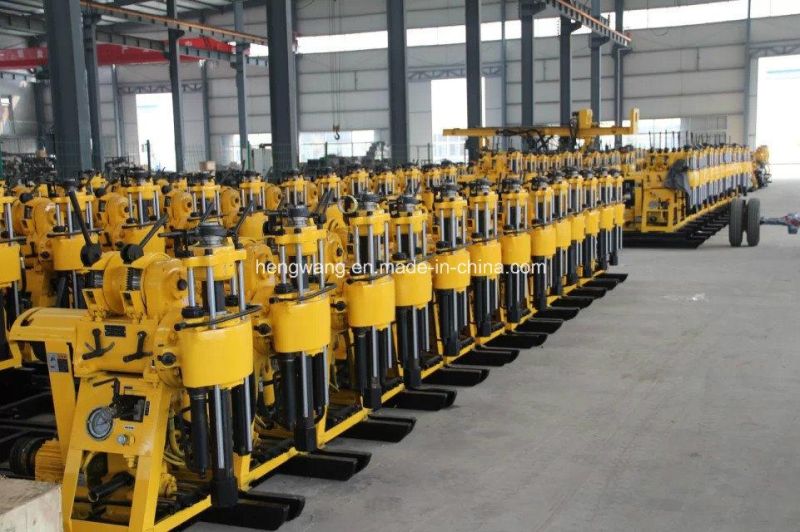

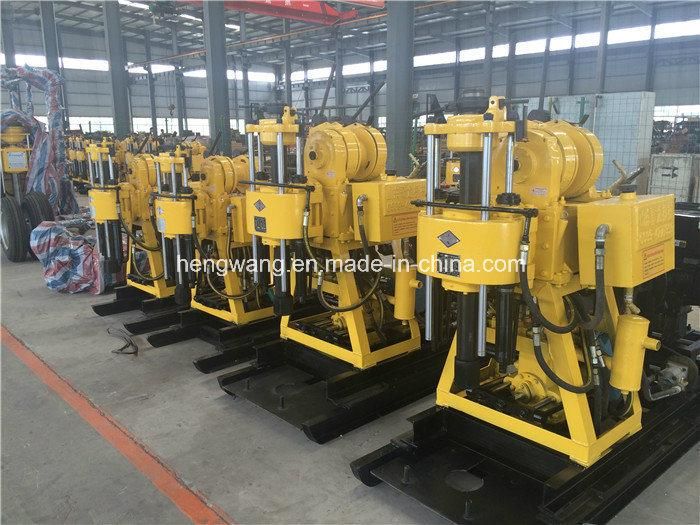

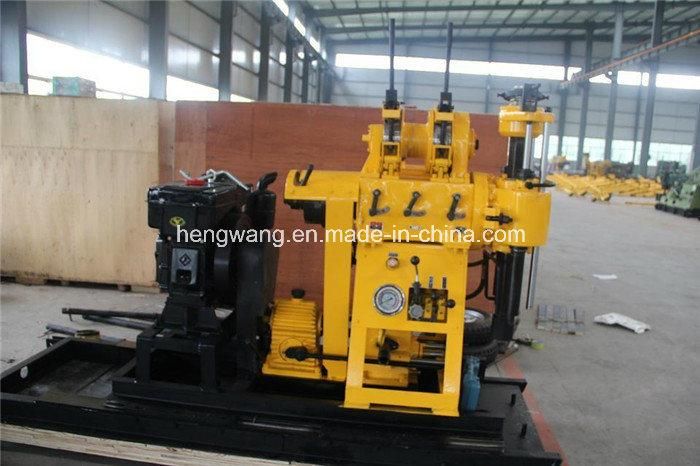

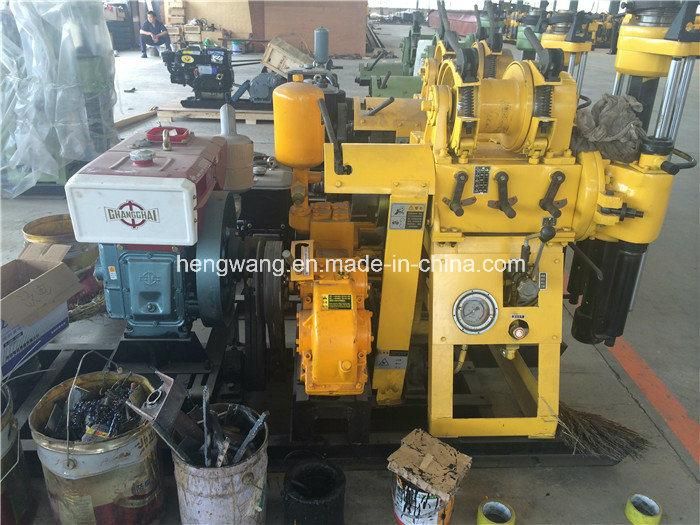

200m Depth Soil Investing Mining Borehole Water Well Core Drilling Rig Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：200-250mm
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HWG-190
  • Drilling Way：Mobile Gyrator
  • Type：Core Drilling Rig
  • Part Name：Water Well Drilling Rig
  • Model Number：Hwg-190
  • Drilling Depth：190m
  • Maximum Open Hole Caliber：300mm
  • End Hole Caliber：75mm
  • Drill Rod Caliber：50mm
  • Drilling Angle：90~75
  • Diesle Engine Power：18 HP
  • Price：Factory Price
  • Warranty：1 Year
  • Transport Package：Wooden Case
  • Specification：SGS
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430412100
  • Production Capacity：1000-2000 Sets,Month

Description

Drilling depth190mMaximum open hole caliber220mmEnd hole caliber75  46mmDrill rod caliber50  42mmDrilling angle90~75°Drilling rig weight (Exclude diesel engine)610kgUnity machine dimensions2.1*0.9*1.3mSpindleSpindle speed130,300,480,730,830,1045 r/minSpindle stroke 450mmHoistMax. Lifting capacity with single rope1600kgLifting speed with single rope1.06,0.67,0.32 m/sWirerope caliber13mmWirerope cubic measure35mmHug floodgate caliber254mmHug folldgate belt width50mmDistance between drill and hole230mmMud pumpTypeHorizontal single-urn twin-actionDisplacement (with diesel engine/electric motor)170L/minMax. pressure1.5MpaWork pressure0.7MpaPower Diesle engineS1105 18HPElectric motorY160M-415KW
