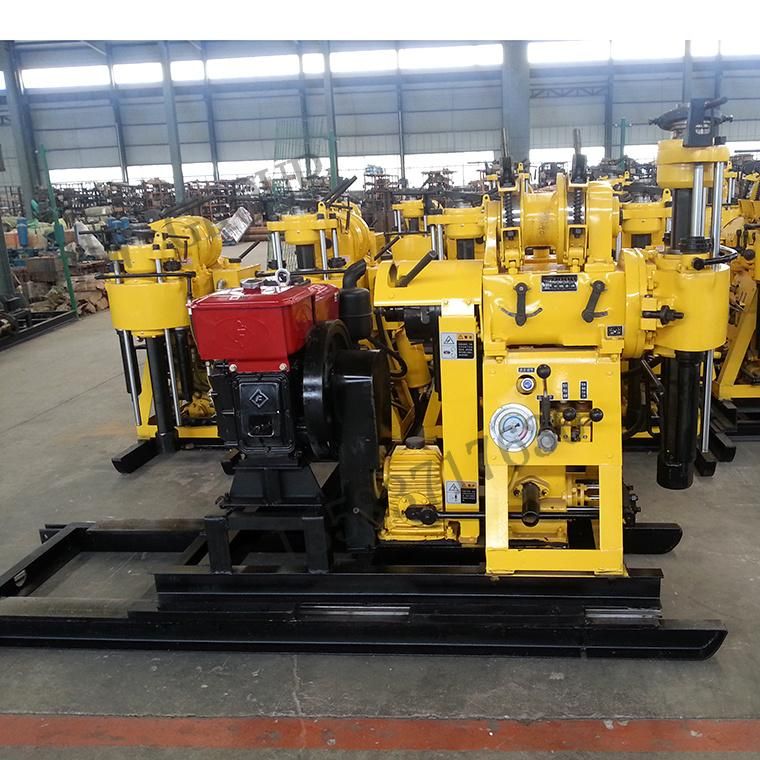

Mining Exploration Hydraulic Drilling Rig Geotechnical Investgation Driller Machine for Wells
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW160
- Drilling Way：Rotary
- Type：Crawler
- Drilling Depth：160m
- Maximum Borehole Caliber：300mm
- Minimum Borehole Caliber：75mm
- Weight(Not Include Power)：1600kg
- Spindle Stroke：450mm
- Max. Single Line Lifting Capacity：2400kg
- Reel Lifting Speed：1.64m,S
- Steel Wire Rope Diameter：13mm
- Steel Wire Rope Capacity：35m
- Hug Floodgate Diameter：245mm
- Movable Distance：400 mm
- Transport Package：Wooden Box
- Trademark：HW
- Origin：Shandong
- Production Capacity：2000
Description

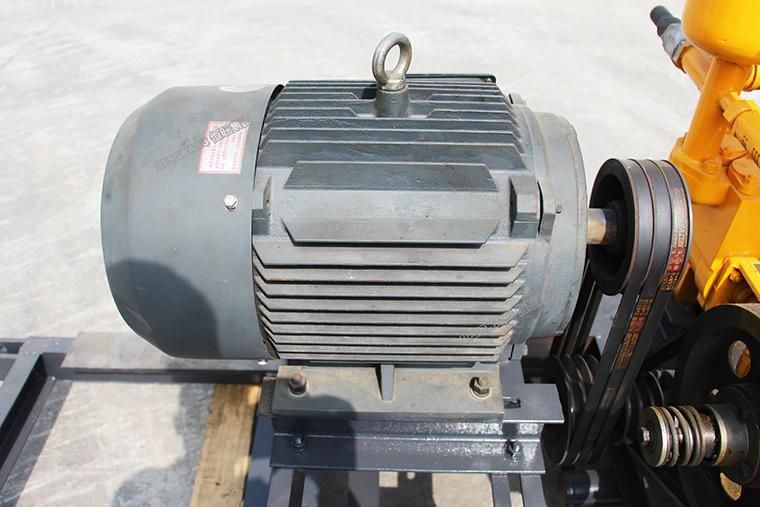

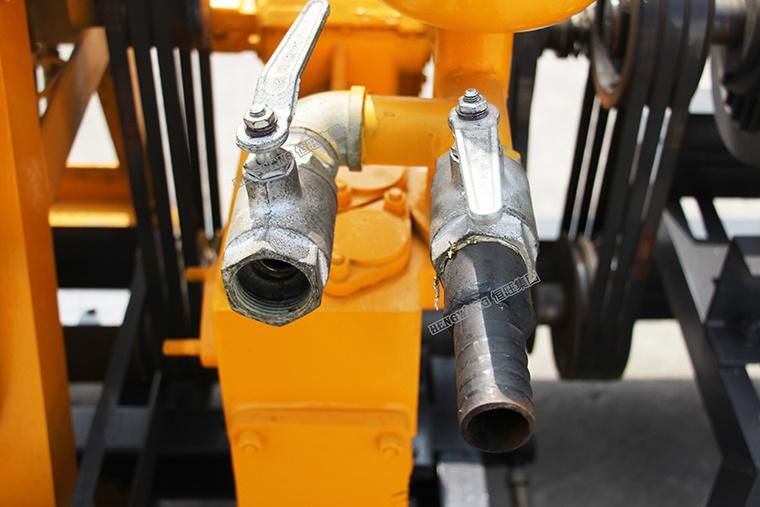

2.Vertical SpindleSpindle rotating speed 64/128/287/557r/min Spindle stroke 450mm 3.Hoist Max. single line lifting capacity 2400kg Reel lifting speed 1.64m/s Steel wire rope diameter 13mm Steel wire rope capacity 35m Hug floodgate diameter 245mm Hug floodgate belt width 70mm Movable distance 400mm 4. Mud pump Type BW-160 Type Horizontal Single Cylinder with double function Max. Discharge Diesel engine 170L/min /Electrical Motor 140L/min Max. Pressure 3MPa Work Pressure 1.5MPa 5. Power Diesel engine 22HP Electric Motor 15KW 6. Drilling tower Type Integrated on drilling rig Control system Hydraulic 7. Trailer chassis Type 4 wheels
