Heavy Duty 12m Depth Borehole Down The Hole Drilling Rigs

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：HW412
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Trademark：HW
  • Origin：Shandong
  • Production Capacity：5000sets,Year

Description

Diesel Engine Specifications

Rig Model

Power

Rated Power

HW412A

Xichai
4DW91-50GBG3U



36.8kW

HW412A-1



YC4DK80



58kW Dust collection system as standard equipment

General Specifications

Drill Pipe Sizes

60*2000 mm

Hole range

90-110 mm

Rotation torque (Max.)

1,650 N.m

Rotation Speed

70-150 rpm

Feed Force

15 kN

Pull Up Force

25 kN

Feed Type

Chain / cylinder

Tramming Speed (Max.)

2.5 km/h

Gradient

25°

Total Weight

3,350Kg/ 3,760 kg

Transportation Dimensions

4900X2000X2200 mm

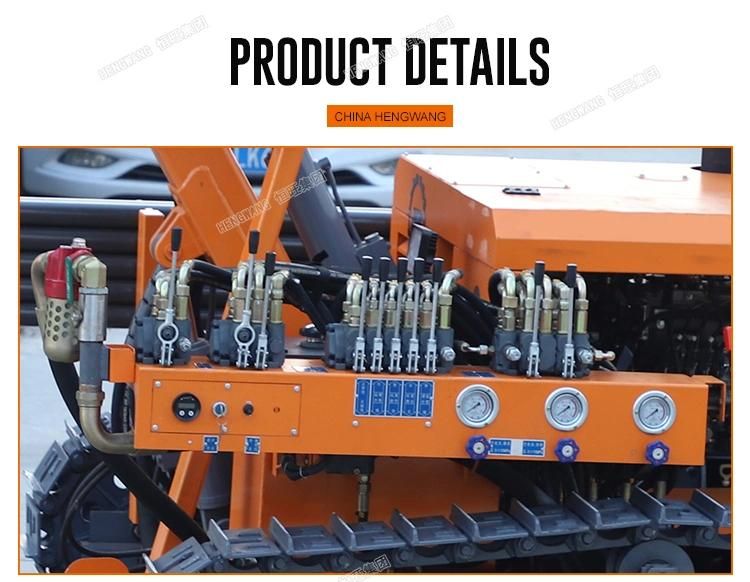

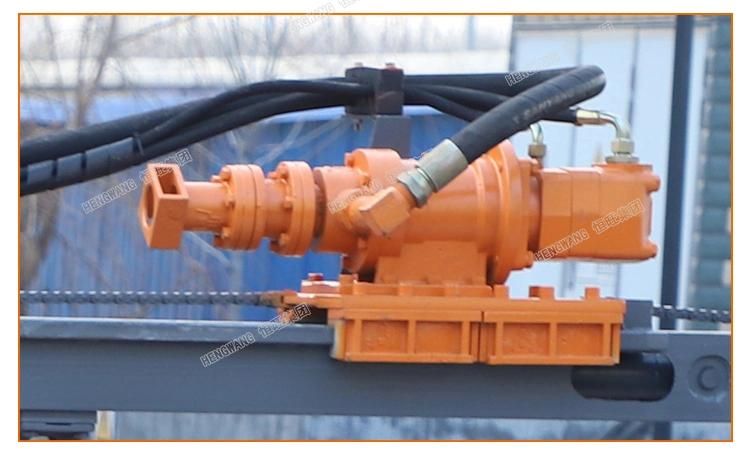

The more details about the HW412 DTH drilling rig machine
