Pneumatic&Hydraulic DTH (down-the-hole) Drilling Machine
Zhengzhou Lead Equipment Co., Ltd.- Certification：CE
- Color：Customised
- Warranty：1 Year
- Place of Origin：China (Mainland)
- Bore Diameter (mm)：83-130
- Transport Package：Standard Export Packing
Base Info
- Model NO.：LDY-100
- Specification：ISO9001-2008&CE
- Trademark：Leadcrete
- Origin：Henan China
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. LDY-100 Specification ISO9001-2008&CE Trademark Leadcrete Origin Henan China Production Capacity 1000 Sets/YearProduct Description

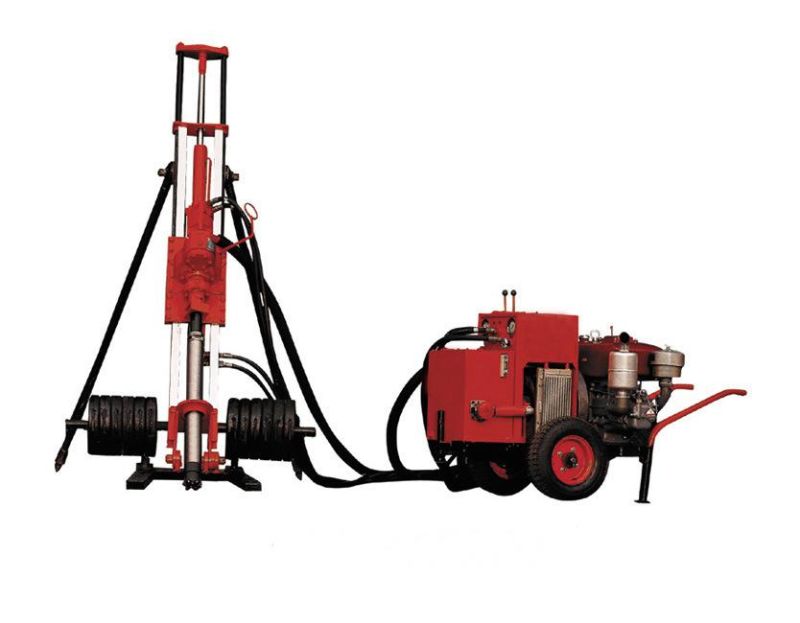

LDY-100 pneumatic&hydraulic DTH (down-the-hole) drilling machine
Feature:
LDY-100 pneumatic&hydraulic DTH rock drilling machine has simple structure, easy operation, low price, energy saving, and can also drill vertical and horizontal blast hole, especially it has low center of gravity and detachability is good, so movement and transportation are convenient.
Application:

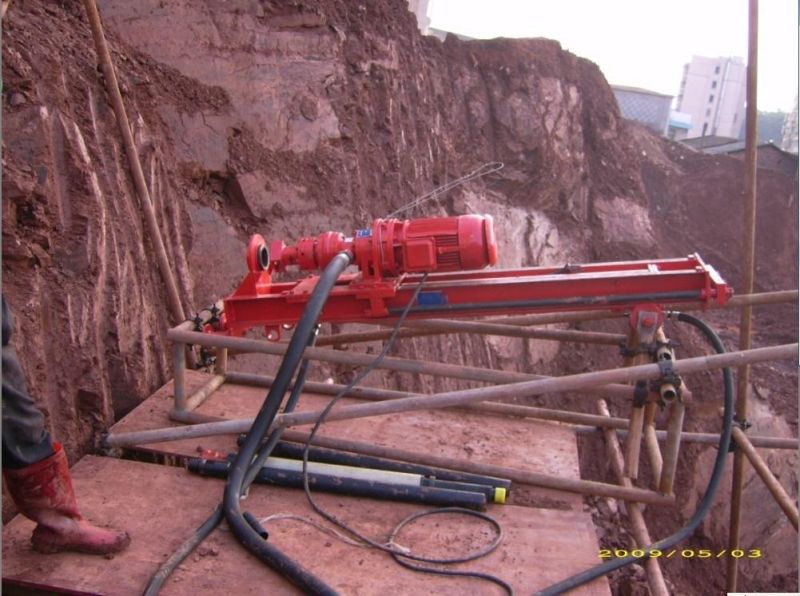

The LDY-100 pneumatic drilling rig is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized mine, earth and rock engineering and so on.
| model | LDY-100 |
| bore diameter (mm) | 83-130 |
| bore depth (m) | ≤ 25 |
| rock hardness | f=6-20 |
| impactor (mm) | 80-110 |
| pressure (mpa) | 0.5-0.7 |
| air consumption (m³ /min) | 7-12 |
| rotating speed (r/min) | 0-55 |
| pushing length (m) | 1 |
| max. lifting force (kg) | 15 |
