Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：150-200mm
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW200
  • Drilling Way：Rotary
  • Type：Common Model
  • Transport Package：Wooden Box
  • Origin：Shandong
  • Production Capacity：2000

Description

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsMini drilling rig hydraulic water well drilling machine for irrigation Pictrures:Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation

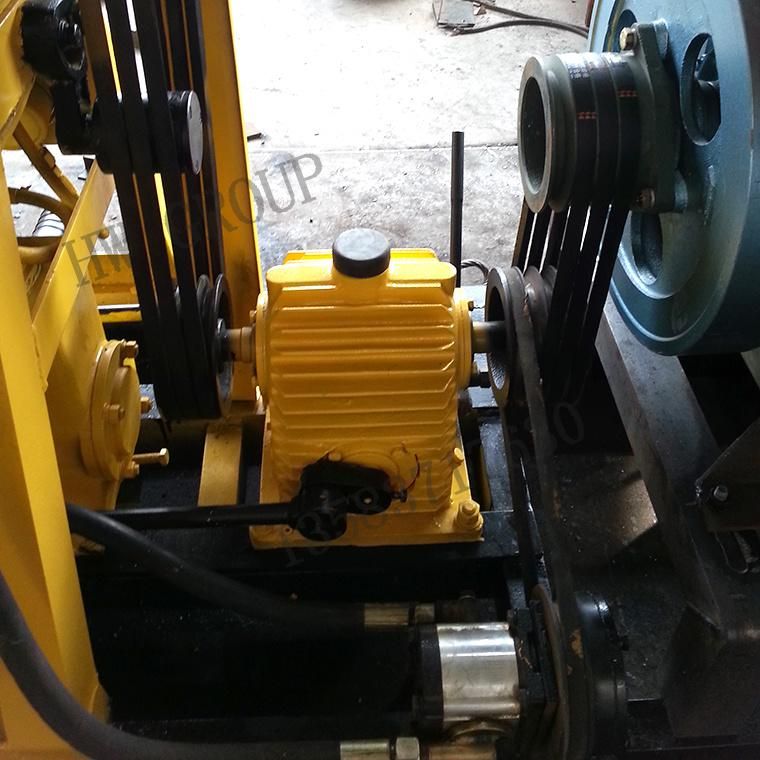

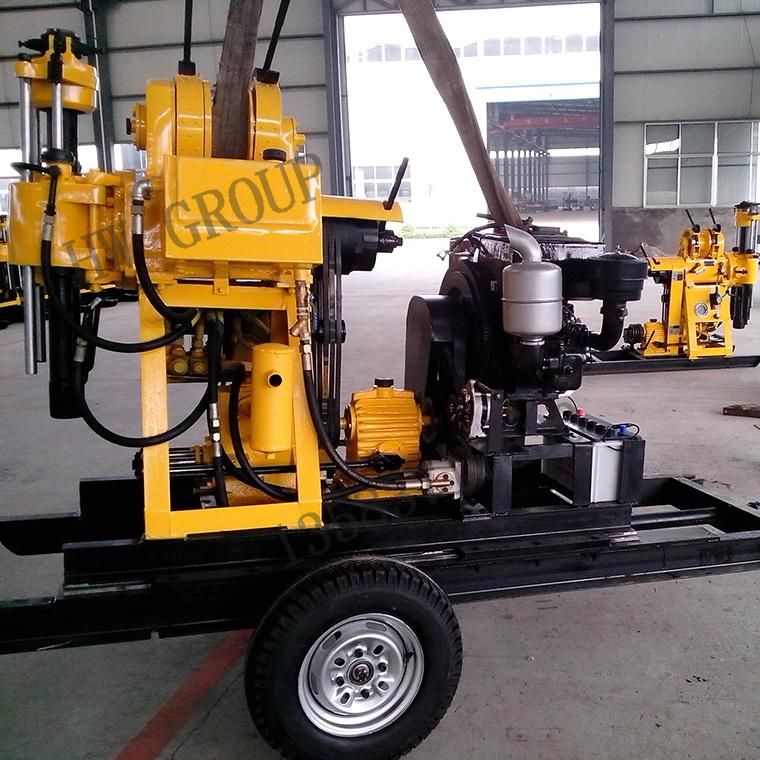

Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation

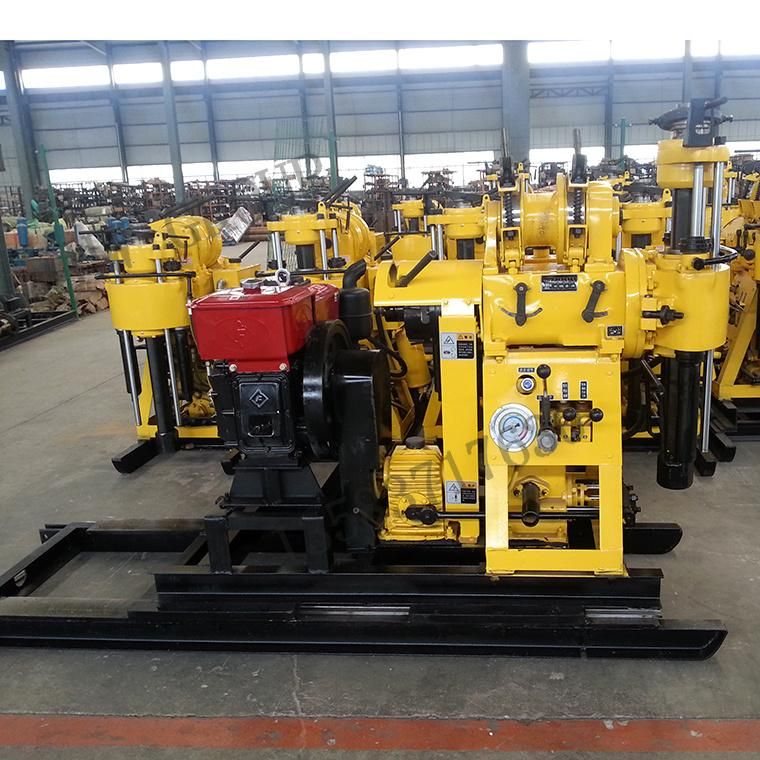

Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation
Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation
Our company for Mini drilling rig hydraulic water well drilling machine for irrigation
Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation
Mini Drilling Rig Hydraulic Water Well Drilling Machine for Irrigation
