Bore Hole Drill Rig Deep Rock Water Well Drilling Equipment
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：100-300mm
Base Info
- Model NO.：HQZ260L
- Drill Hole Depth：260m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Model：Hqz260L
- Drilling Diameter：100-300mm
- Drilling Depth：Max.260m

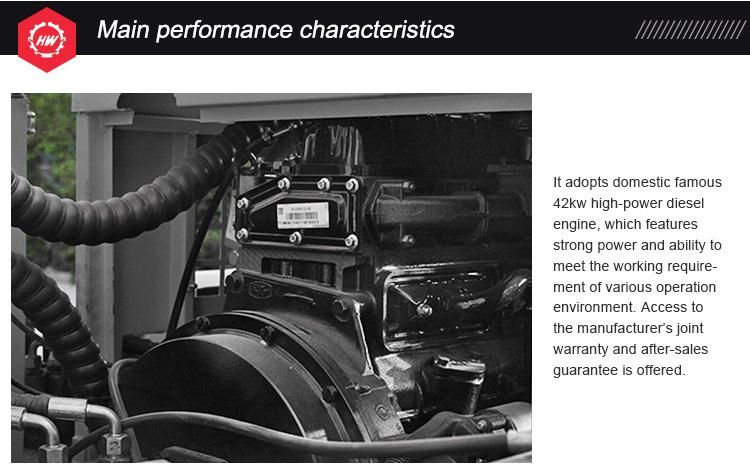

- Engine：Yunnei 76kw
- Walking Speed：2.5 Km,H
- Min. Ground Clearance：250mm
- Working Air Pressure：1.7-3.0 MPa
- Air Consumption：17-35 M3,Min
- Rotation：40-70 Rpm
- Rotary Torque：7000-9000 Nm
- Transport Package：FCL
- Specification：4100*1900*2600
- Trademark：Hengwang
- Origin：China
- Production Capacity：500 Sets,Month
Description
Model
HQZ-260L
Total Weight(T)
6.4
Dimensions(mm)
4100*1900*2600
Drilling Diameter(mm)
140-300
Drilling Depth(m)
260
One-time Advance Length of the Drill(mm)
3000
Walking Speed(Km/h)
2.5
Climbing Ability(max)
30
Min. Ground Clearance(mm)
250
Working Air pressure(Mpa)
1.7-3.0
Air Consumption(m³/min)
17-35
Main Power(kw)
73/Yuchai
Rotation(rpm)
40-70
Rotary Torque(Nm)
7000-9000

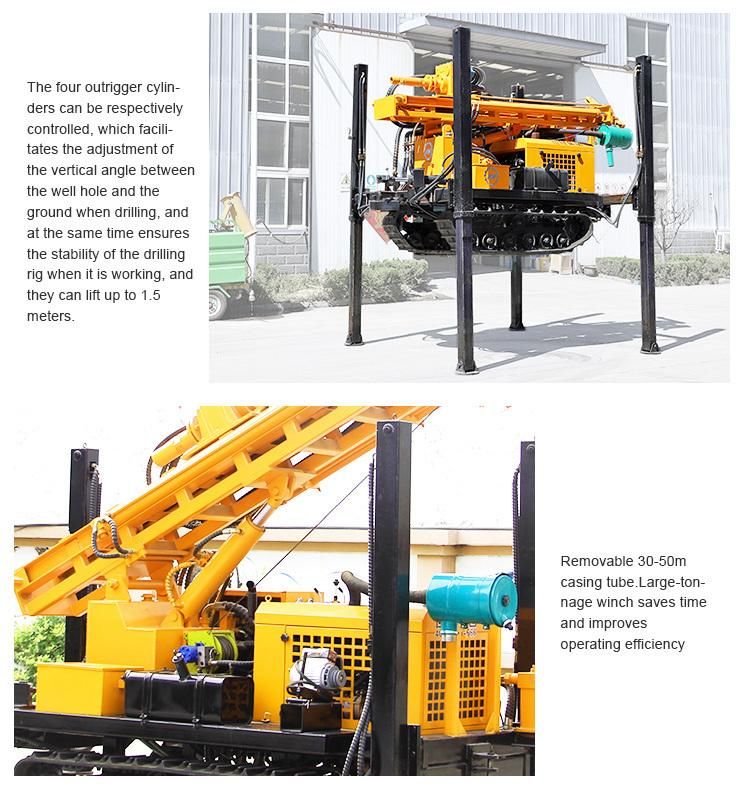

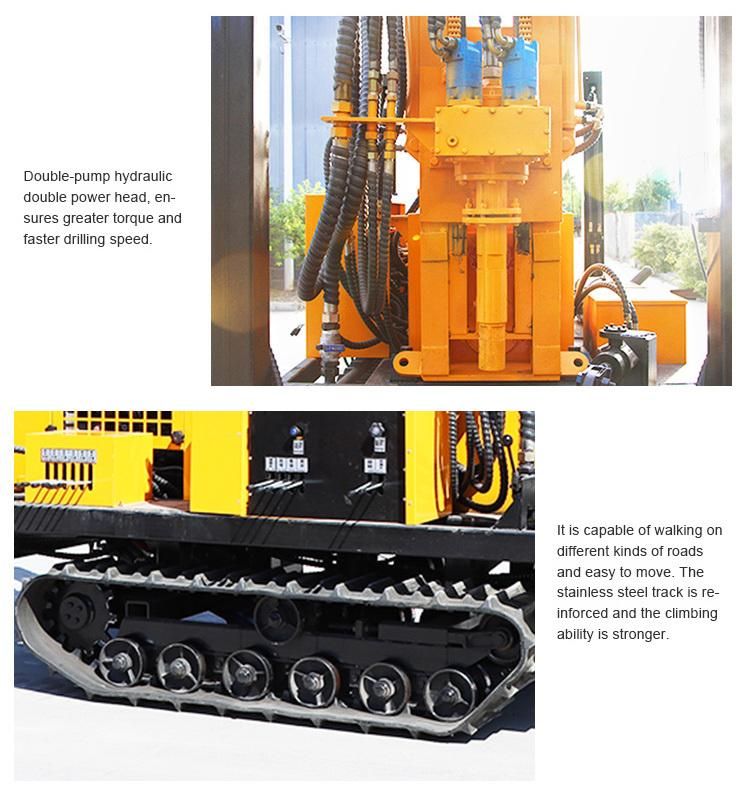

Detail Photos
Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
