• Model NO.：30m deep
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Name：Borehole Drill Rig
• Color：as You Like
• Engine：58kw
• Hole Diameter：90-158mm
• Max Drill Deep：60m
• Diesel Engine：Yuchai
• Working Pressure：0.7 - 2.5 MPa
• Hole Depth：30m
• Transportation Dimensions：5700 X 2130 X 2200 mm
• Total Weight：4000kgs
• Transport Package：Standard Export Package
• Specification：30m MAX
• Trademark：Hengwang
• Origin：Shandong, China
• Production Capacity：30 Sets Per Month

Transportation Dimensions

5700 X 2130 X 2200 mm

Features:

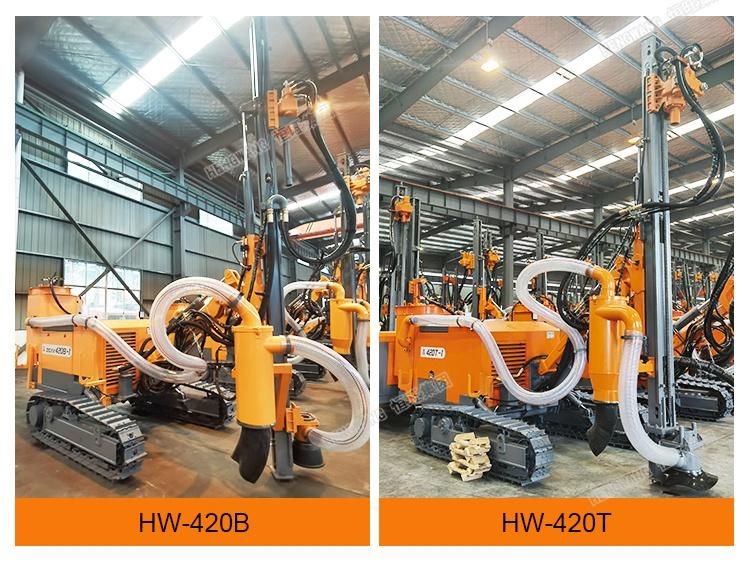

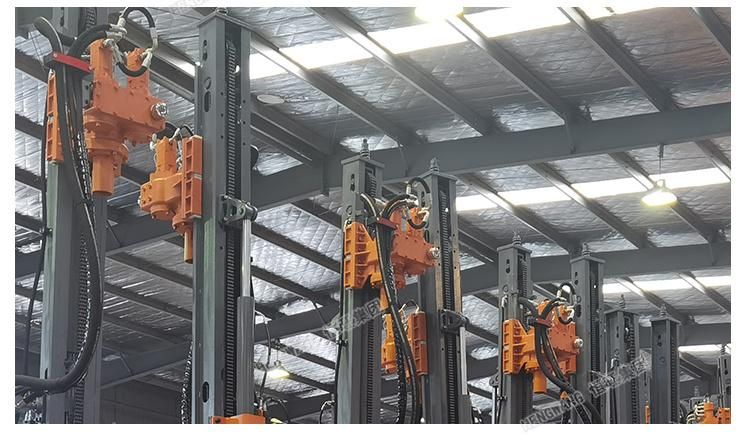

• 1. HW-420B model uses double cycloid motor slewing head, with large torque and fast speed, which can meet the requirements of 76mm drill pipe and 130 hole diameter.

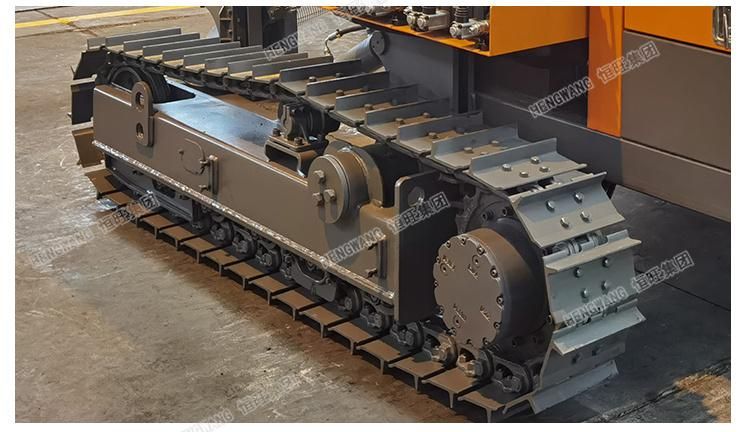

• 2. The HW-420B series is equipped with engineering crawlers and plunger motors as standard, which makes the product quality more reliable, stronger driving force, and can better adapt to the complex geological and road environment of open-pit mines.

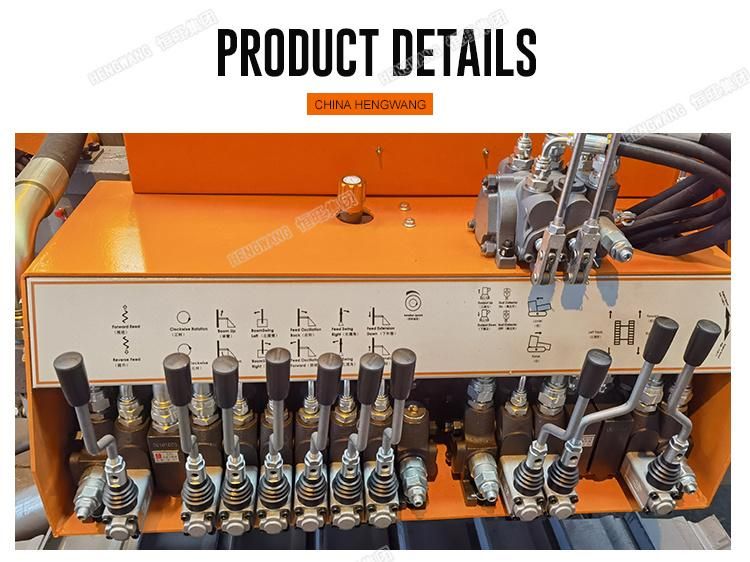

• 3. The centralized control console is easy to operate, improve work efficiency, and increase the safety and comfort of operation.

• 4. The HW-420B series drilling rig has added leveling function, which improves the climbing and cross-country performance of the equipment, can adapt to complex terrain conditions, and can drill vertical holes for slopes to meet the needs of different working conditions.
