• Model NO.：XR360
• Drilling Way：Rotary
• Weight：63ton
• Voltage：220V,380V
• Transport Package：Nude by Roro
• Specification：6377*3212*3560 mm
• Trademark：XC-MG
• Origin：China
• HS Code：84305090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. XR360 Drilling Way Rotary Weight 63ton Voltage 220V/380V Transport Package Nude by Roro Specification 6377*3212*3560 mm Trademark XC-MG Origin China HS Code 84305090 Production Capacity 100 Sets/Month

Product Description

China Brand New 180Kn Hydraulic Rotary Pile Crawler Drilling Rig

design, saving more fuel.

Special telescopic rotary excavating undercarriage, equipped with double-box type derricking mechanism, easy for transportation and adjustment, enabling excellent operation stability and reliability.

Imported Japanese hydraulic components, reasonable power system matching and high construction efficiency.

Global satellite positioning system (GPS), allowing remote data analysis, real-time monitoring and fault diagnosis of complete machine.

Independent intellectual property intelligent control system, CAN bus and PLC control system application, including the mast verticality auto/manual adjustment, depth auto detection and display, intelligent fault diagnosis control etc

Parameter

Uncased	(mm)	φ2500
Cased	(mm)	φ2200
Max.Drilling Depth	(m)	102
Dimension
Working condition L × W × H	(mm)	11000X4800X24586
Transportation condition L × W × H	(mm)	18880×3500×3820
Overall Drilling Weight	(t)	90
Engine
Rated Power	(kW)	298/2100
Hydraulic System
Working pressure	(MPa)
Rotary Drive
Max. output torque	(kN.m)	360
Rotary speed	(r/min)	6~25
Spin off speed	(r/min)	-
Pull-Down Cylinder
Max.pull-down piston push	(kN)	240
Max.pull-down piston pull	(kN)	250
Max.pull-down piston stroke	(mm)	6000

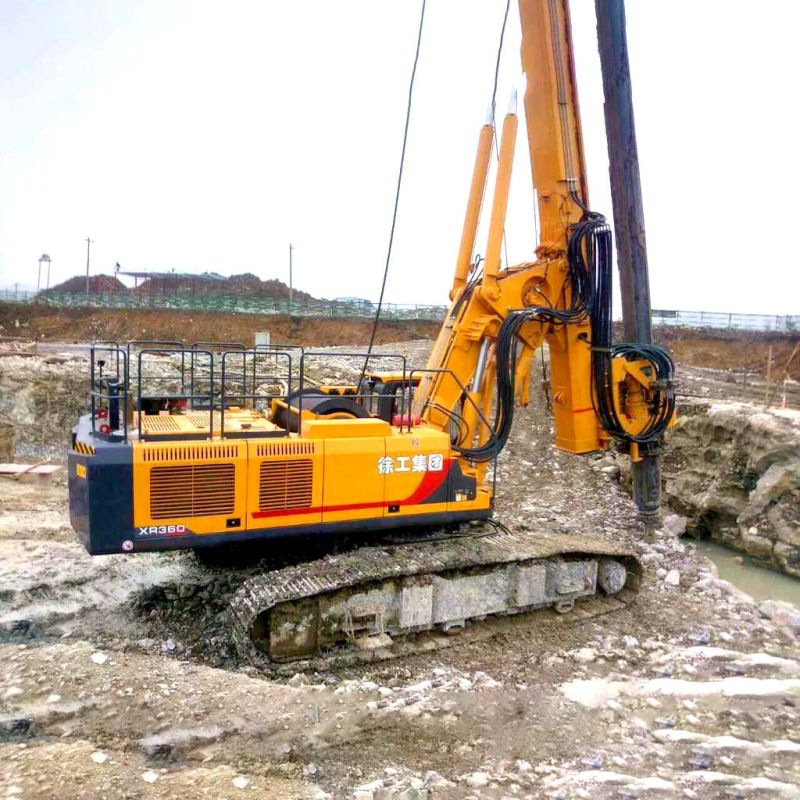

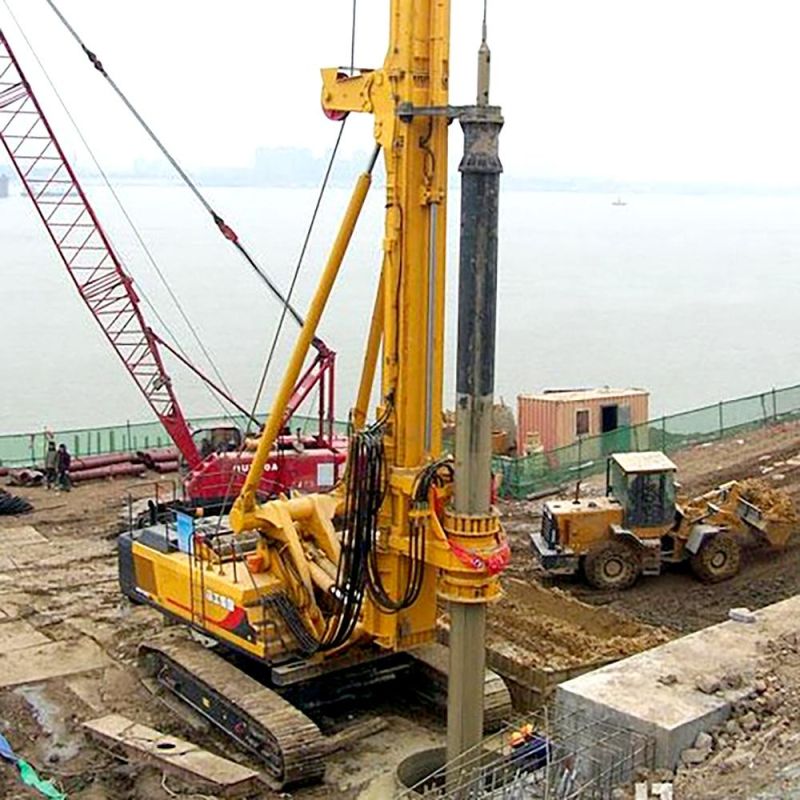

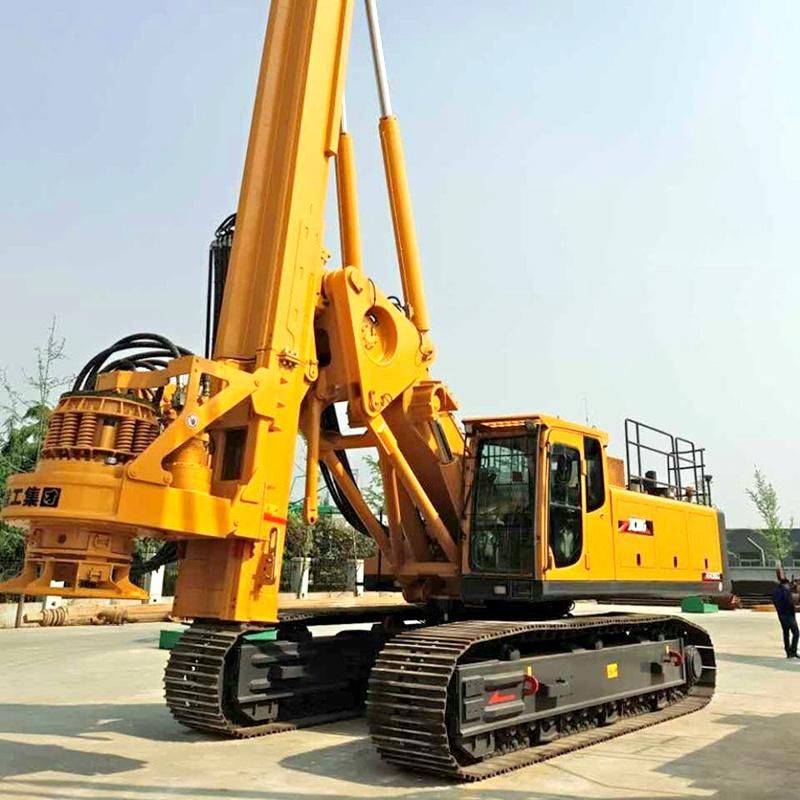

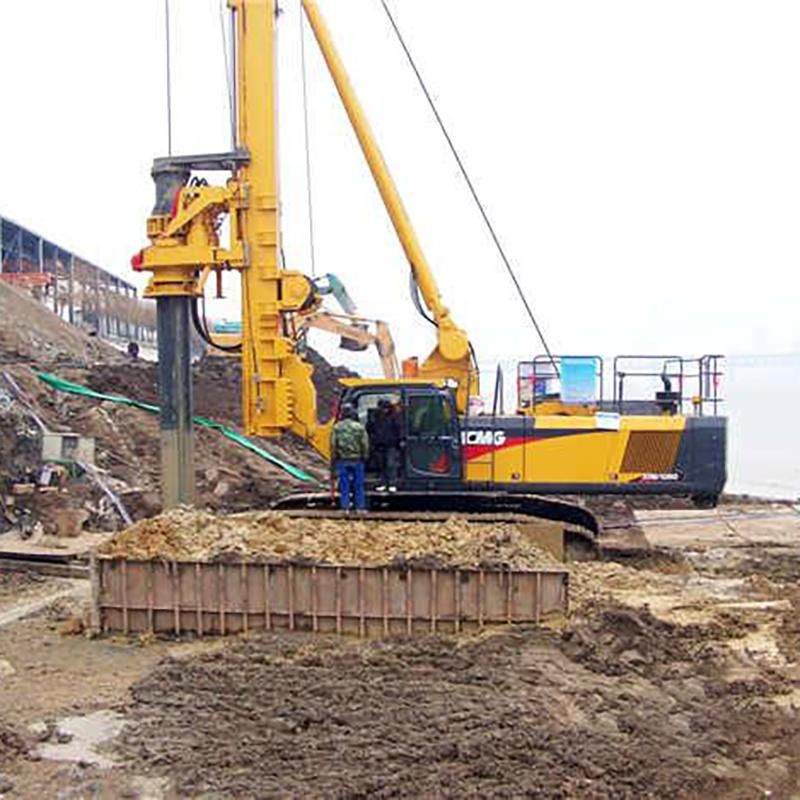

Photos for reference
