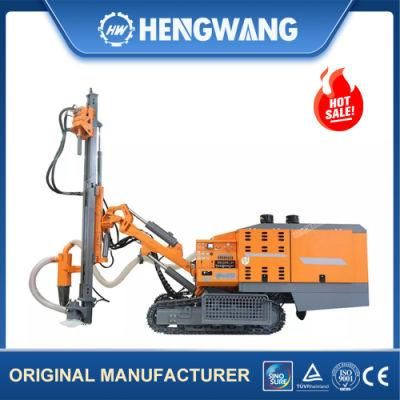

Pneumatic Borehole Rock Blast Hole Drilling Rig Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：90-138mm

Base Info

  • Model NO.：30m
  • Drill Hole Depth：30m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Model：Hw425
  • Drilling Diameter：90-138mm
  • Drilling Depth：30m
  • Hammer：4",5"
  • Rotation Torque(Max.)：3,200 N.M
  • Rotation Speed：0 -100 Rpm
  • Working Pressure：0.7-2.5MPa
  • Transport Package：Container
  • Specification：7, 000 X 2, 250 X 2, 700mm
  • Trademark：Hengwang
  • Origin：China
  • Production Capacity：100pieces,Month

Description

Transportation Dimensions

7,000 X 2,250 X 2,700mm

Successful Project Packaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
