Crawler Mounted DTH Borehole Drilling Rig 260m Diesel Engine Water Well Drilling Rig Borehole Machinery Drilling Wells

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：260m
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Name：Water Well Drilling Rig
  • Model：Hqz-260L
  • Drill Depth：260m
  • Drill Diameter：100-300mm
  • Transport Package：Container
  • Specification：2700*1320*2000mm
  • Trademark：HW
  • Origin：China
  • Production Capacity：50PCS,Month

Description

Model

HQZ-260L

Total Weight(T)

6.4

Dimensions(mm)

4100*1900*2600

Drilling Diameter(mm)

140-300

Drilling Depth(m)

260

One-time Advance Length of the Drill(mm)

3000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

250

Working Air pressure(Mpa)

1.7-3.0

Air Consumption(m³/min)

17-35

Main Power(kw)

73/Yuchai

Rotation(rpm)

40-70

Rotary Torque(Nm)

7000-9000

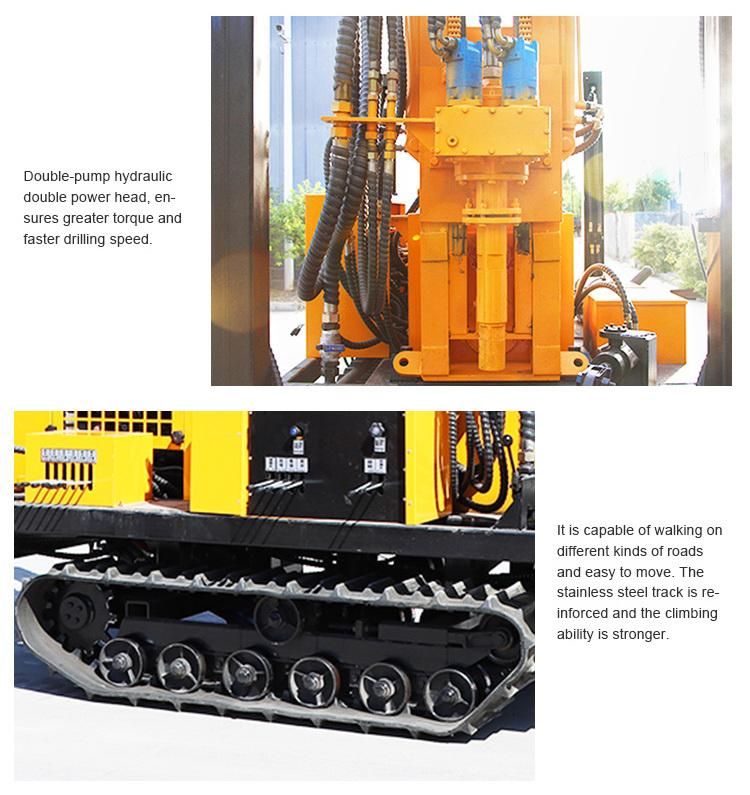

 Detail Photos

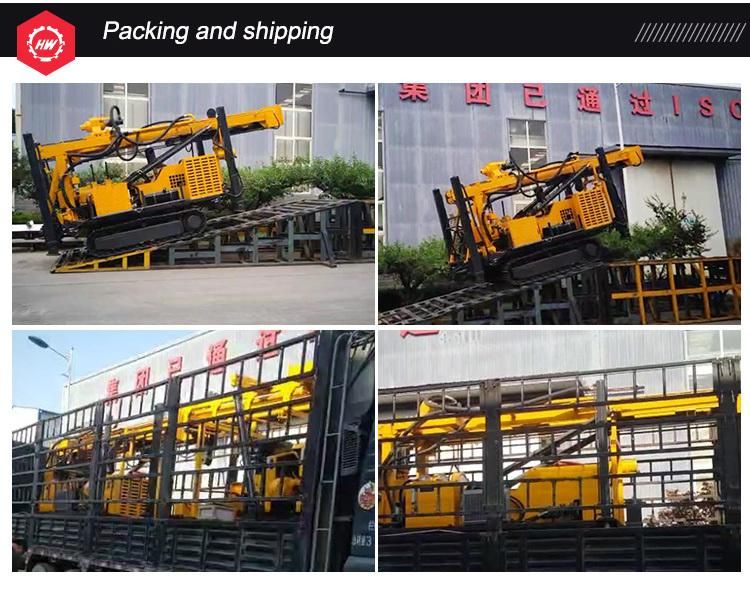

Crawler Mounted DTH Borehole Drilling Rig 260m Diesel Engine Water Well Drilling Rig Borehole Machinery Drilling WellsCrawler Mounted DTH Borehole Drilling Rig 260m Diesel Engine Water Well Drilling Rig Borehole Machinery Drilling WellsCrawler Mounted DTH Borehole Drilling Rig 260m Diesel Engine Water Well Drilling Rig Borehole Machinery Drilling WellsProduct ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
