Top Drive Head Hydraulic Portable Borehole Water Well Drilling Rig Machine for Water Well

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：250-300mm

Base Info

  • Model NO.：260m
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Name：Drill Rig
  • Drill Depth：260m
  • Drill Diameter：300m
  • Power：73kw
  • Transport Package：Container
  • Specification：2700*1320*2000mm
  • Trademark：HW
  • Origin：China
  • Production Capacity：50PCS,Month

Description

Model

HQZ-260L

Total Weight(T)

6.4

Dimensions(mm)

4100*1900*2600

Drilling Diameter(mm)

140-300

Drilling Depth(m)

260

One-time Advance Length of the Drill(mm)

3000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

250

Working Air pressure(Mpa)

1.7-3.0

Air Consumption(m³/min)

17-35

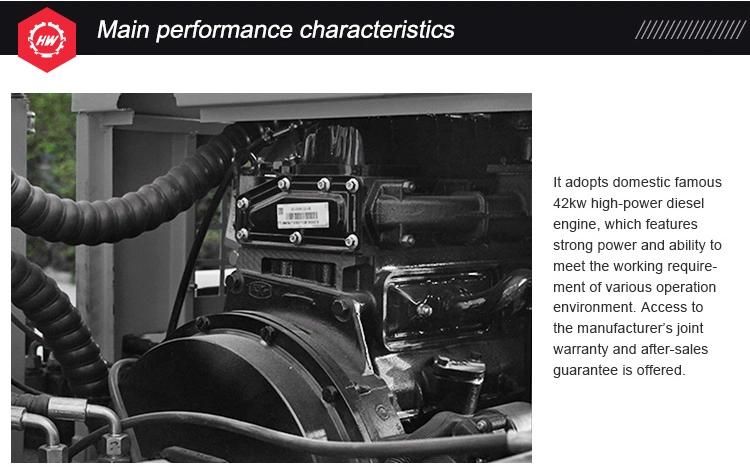

Main Power(kw)

73/Yuchai

Rotation(rpm)

40-70

Rotary Torque(Nm)

7000-9000


 Detail Photos

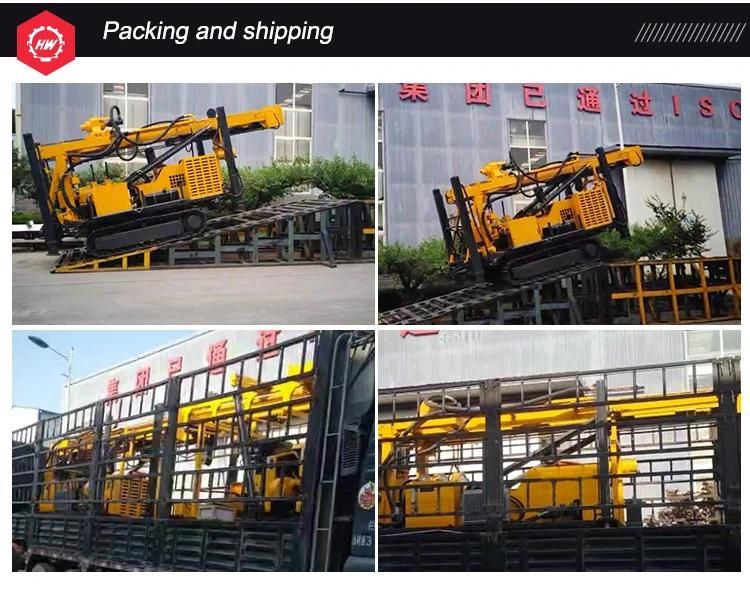

Top Drive Head Hydraulic Portable Borehole Water Well Drilling Rig Machine for Water WellTop Drive Head Hydraulic Portable Borehole Water Well Drilling Rig Machine for Water WellTop Drive Head Hydraulic Portable Borehole Water Well Drilling Rig Machine for Water WellProduct ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

Top Drive Head Hydraulic Portable Borehole Water Well Drilling Rig Machine for Water WellCompany Profile
