300m Depth Crawler Pneumatic Bore Hole Water Well Drill Rig Drilling Machine for Sale

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1year
  • Certification：CE, ISO 9001:2000, ISO9001: 2000
  • Condition：New
  • Motor：Diesel ,Electric
  • Drill Hole Diameter：250-300mm

Base Info

  • Model NO.：260M
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Drilling Rock：20m~40m,Hour
  • Drilling Depth：260m
  • Drilling Diameter：100-300mm
  • Engine Power：76kw
  • Transport Package：20 Feetcontainer
  • Specification：4100*1900*2600
  • Trademark：HW
  • Origin：China
  • HS Code：8705400000
  • Production Capacity：50000set,Year

Description

Model

HQZ-260L

Total Weight(T)

6.4

Dimensions(mm)

4100*1900*2600

Drilling Diameter(mm)

140-300

Drilling Depth(m)

260

One-time Advance Length of the Drill(mm)

3000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

250

Working Air pressure(Mpa)

1.7-3.0

Air Consumption(m³/min)

17-35

Main Power(kw)

73/Yuchai

Rotation(rpm)

40-70

Rotary Torque(Nm)

7000-9000

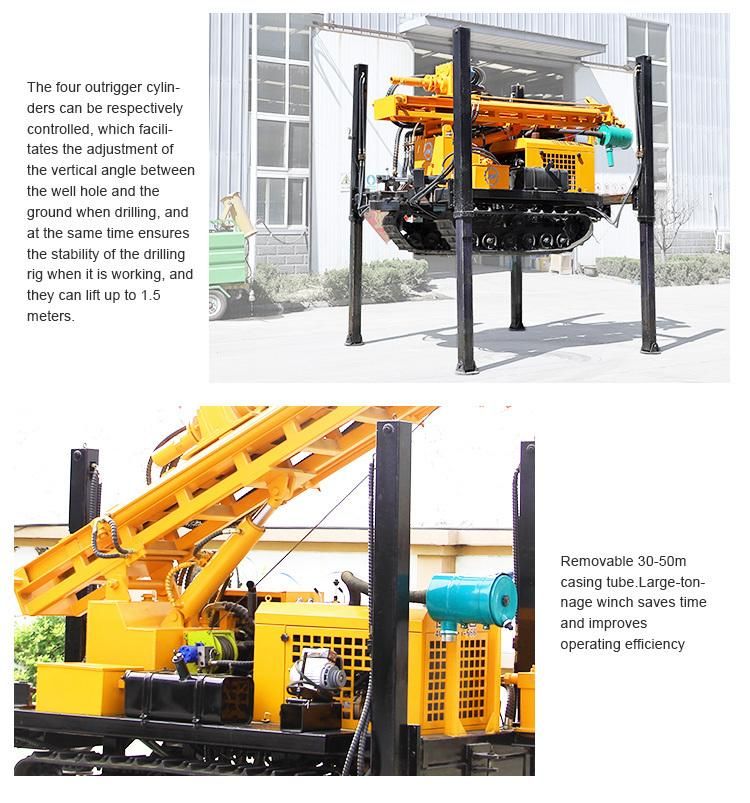

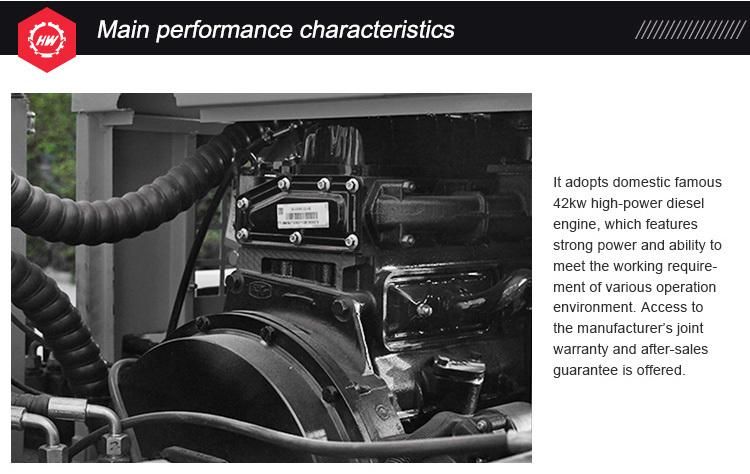

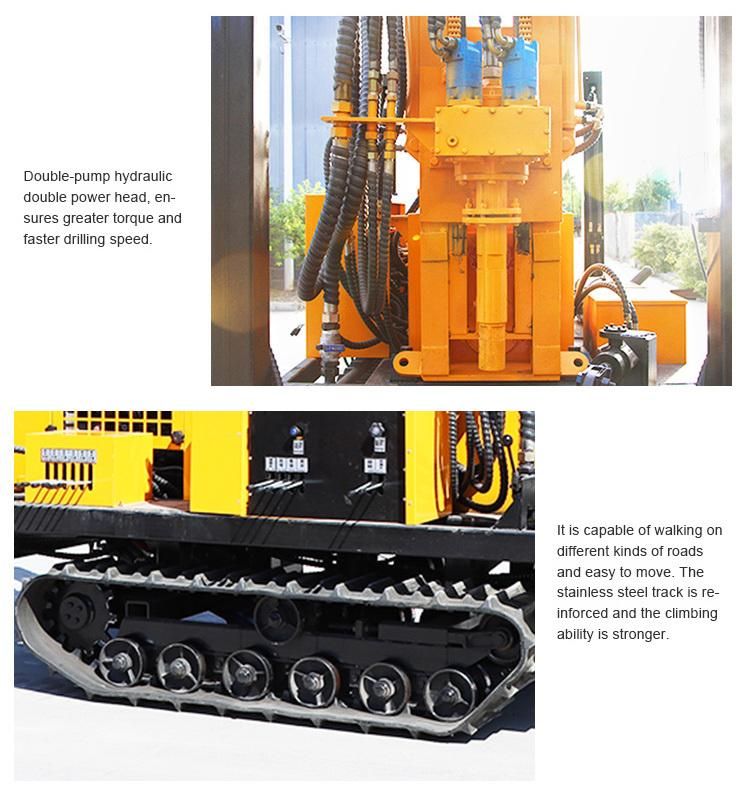

 Detail Photos

300m Depth Crawler Pneumatic Bore Hole Water Well Drill Rig Drilling Machine for Sale300m Depth Crawler Pneumatic Bore Hole Water Well Drill Rig Drilling Machine for Sale300m Depth Crawler Pneumatic Bore Hole Water Well Drill Rig Drilling Machine for SaleProduct ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

300m Depth Crawler Pneumatic Bore Hole Water Well Drill Rig Drilling Machine for SaleCompany Profile
