Pneumatic DTH Borehole Drilling Rig for Drill Water Well
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：100-450mm
Base Info
- Model NO.：HQZ450L
- Drill Hole Depth：100-450mm
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Model：Hqz450L
- Drilling Diameter：130-400
- Drilling Depth：450
- Walking Speed：3 Km,H
- Min.Ground Clearance：300mm
- Working Air Pressure：1.7-3.5 MPa
- Air Consumption：17-35 M3 ,Min

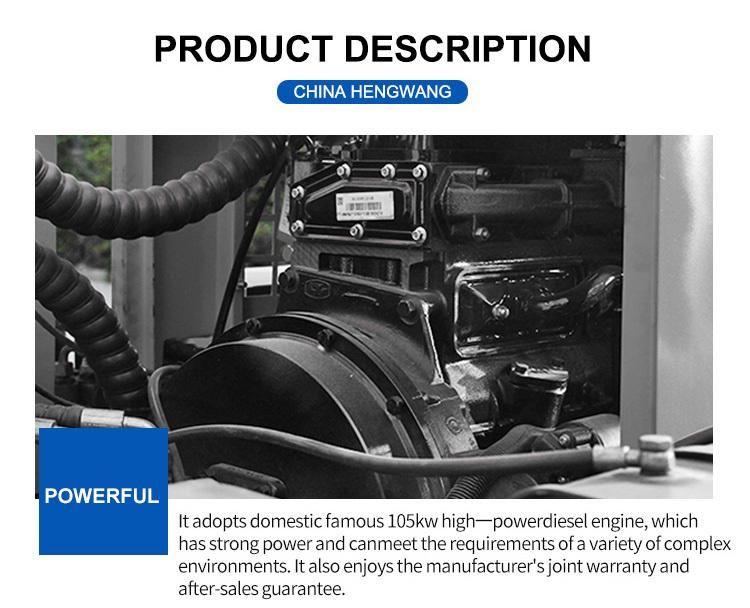

- Engine：105kw
- Rotation：45-75
- Rotary Torque：9000-10000 N.M
- Transport Package：Standard
- Specification：4000*2000*2700mm
- Trademark：Hengwang
- Origin：China
- Production Capacity：2000sets,Year
Description
Model
HQZ-450L
Total Weight(T )
8/10
Dimensions(mm )
5300*2050*2700
Drilling Diameter(mm)
130-400
Drilling Depth(m)
450
One-time Advance Length of the Drill(mm)
3000/6000
Walking Speed(km/h)
6
Climbing Ability(max )
25
Min.Ground Clearance(mm )
300
Working Air Pressure(Mpa )
1.7-3.5
Air Consumption(m3 /min )
17-35
Main Power(kw)
100/6 cylinder
Rotation(rpm)
45-75
Rotary Torque(N.m )
9000-10000

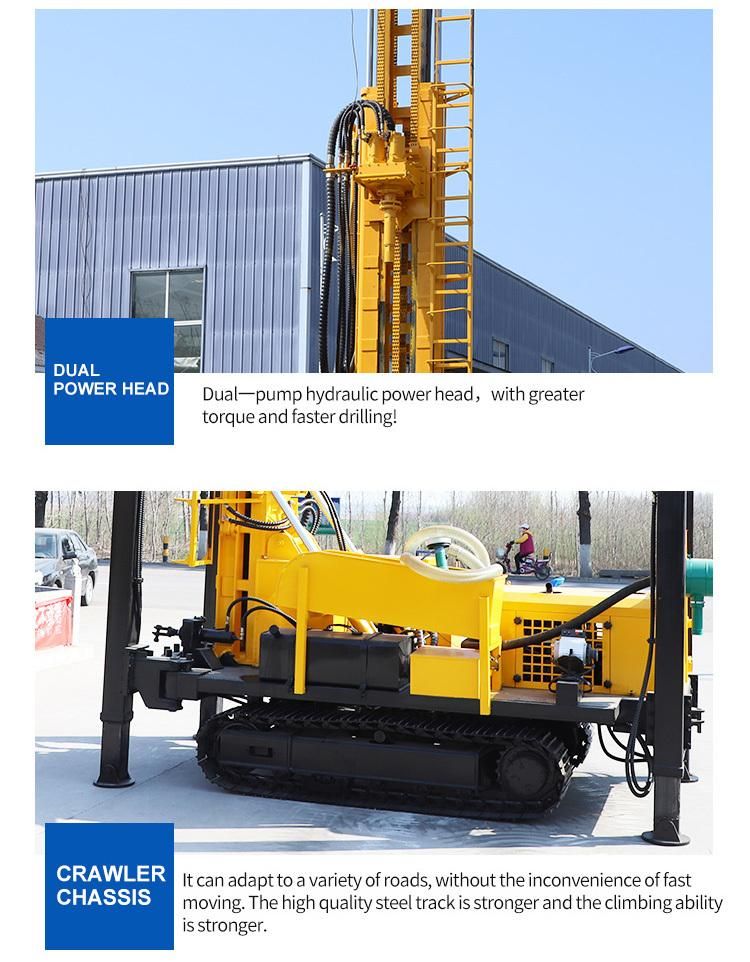

Detail Photos

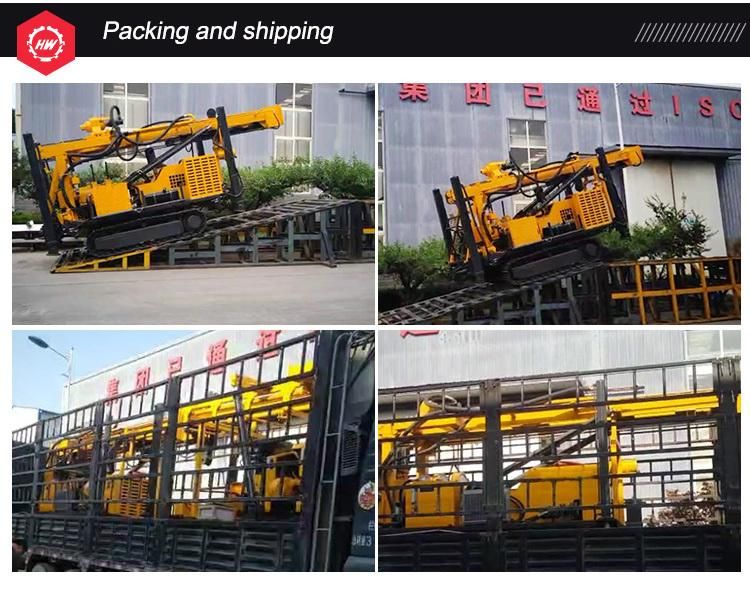

Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
