Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.

Certification：ISO 9001:2000
Condition：New
Motor：AC Motor
Drill Hole Diameter：200-250mm
Drill Hole Depth：150-200m
Bit Type：Diamond Bit

Base Info

Model NO.：XY-3
Drilling Way：Mobile Gyrator
Type：Core Drilling Rig
Part Name：Water Well Drilling Rig
Model Number：Xy-3
Drilling Depth：600m
Maximum Open Hole Caliber：300mm
End Hole Caliber：75mm
Drill Rod Caliber：50mm
Drilling Angle：90~75
Diesle Engine Power：76 HP
Usage：Coal, Water Well
Power Type：Diesel
Transport Package：Wooden Case
Specification：SGS
Trademark：HW
Origin：Shandong, China
HS Code：8430412100
Production Capacity：1000-2000 Sets,Month

Description

Unity machine parameterDrilling depth600mMax open hole caliber300mmEnd hole caliber75mmDrilling Rod diameter60mmDrilling angle90°~65°Dimension2500 x 900 x 1800mmDrill weight (without power)1600kgSpindle spindle speedForward 30-1050r/minReverse 29 137r/minSpindle stroke600mmSpindle inner diameter96mmLifting capacity6000kgHoist Max.Single line lifting capacity4000kgMax.Single line lifting speed0.5-1.9m/s Wirerope caliber12.5mmWirerope length50mReel diameter300mmHug folldgate belt width90mmMud pumpTypeBW-250Displacement250 L/minWork pressure80kg/cm²Water inlet pipe diameter75 mmWater outlet pipe diameter50 mmGear Oil pumpDuplex gear oil pumpCBF-F63/25Front Displacement, pressure63 L/min 20MpaBehind Displacement, pressure25 L/min 20MpaPowerDiesel engine4105 76HPElectric motorY180L-4 59K Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine

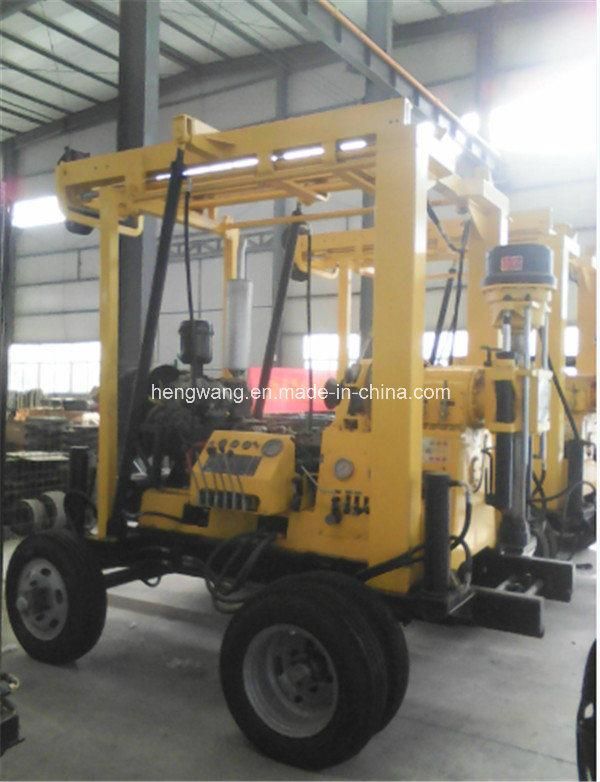

Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine

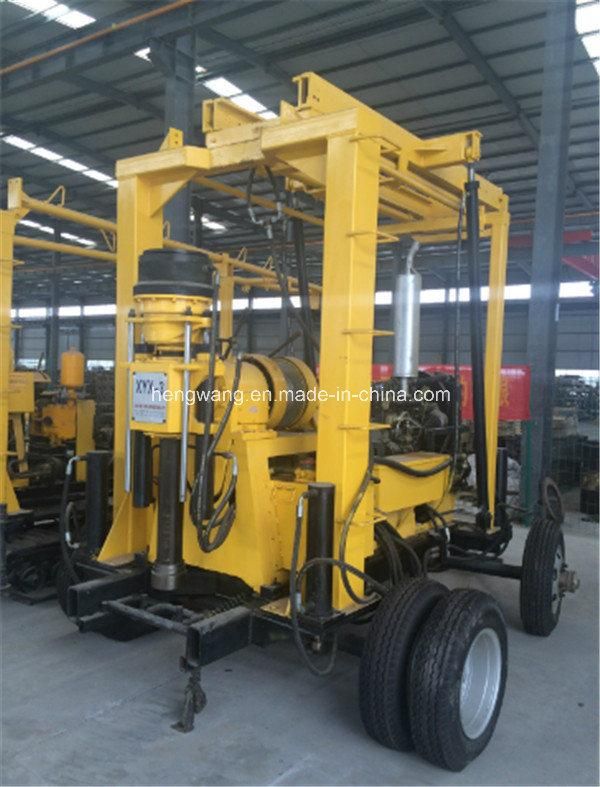

Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine

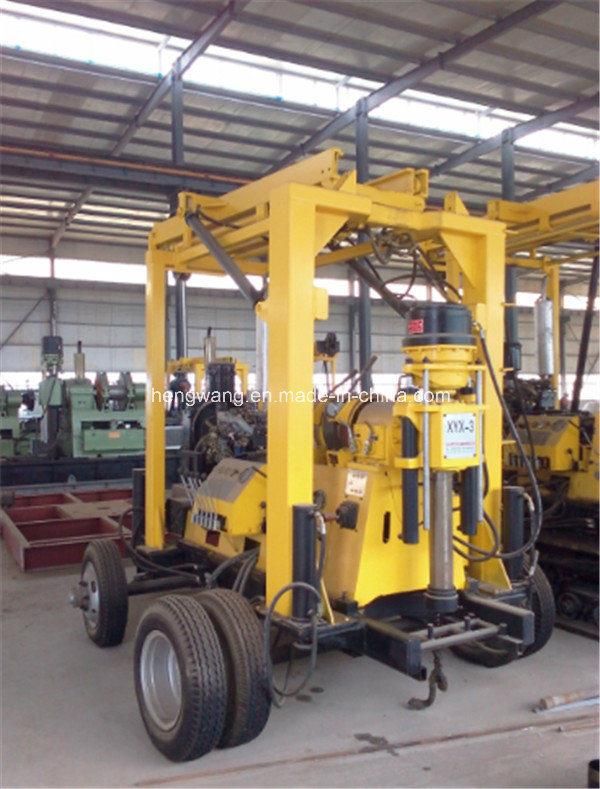

Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine

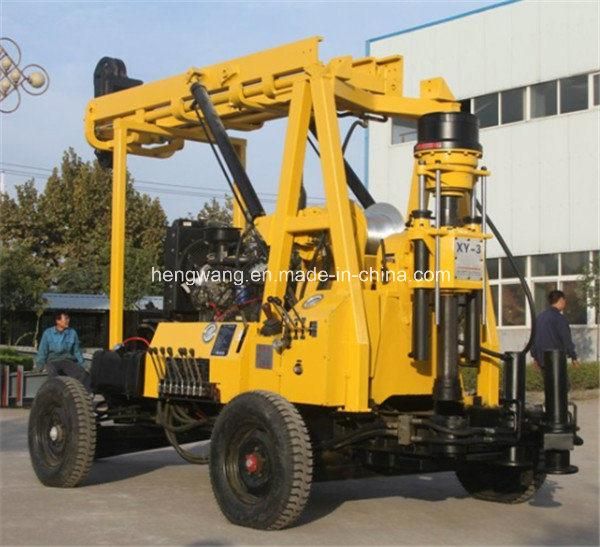

Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine

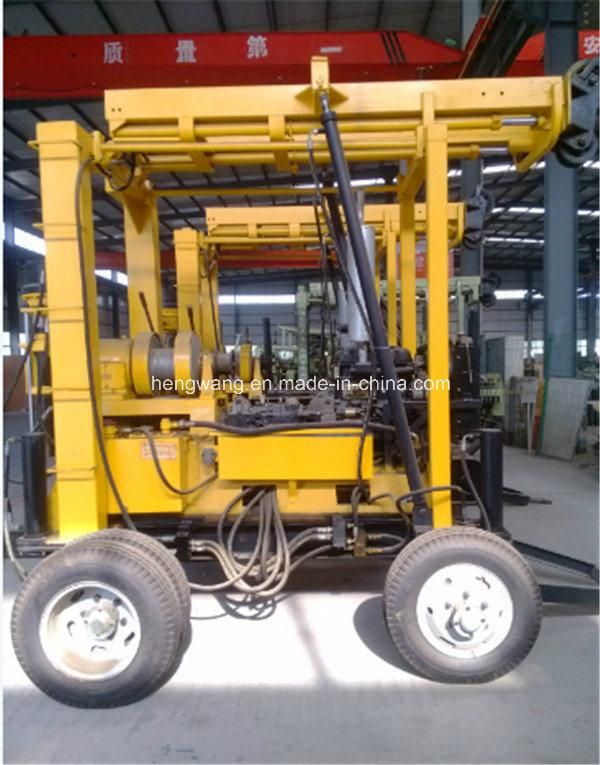

Multi-Purpose Wheel Trailer Mounted Portable Water Well Drilling Machine
