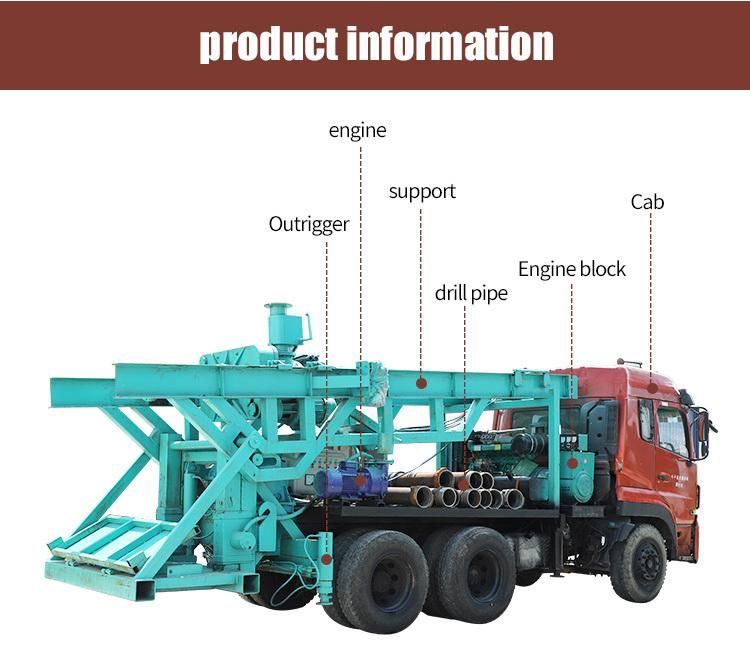

Truck Mounted 180m Reverse Circulation Water Well Bore Hole Drilling Rig for Sale
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：>300mm
Base Info
- Model NO.：HF-150
- Drill Hole Depth：>200m
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Type：Crawler
- Max.Drilling Depth：200m
- Max. Drilling Diameter：2500mm
- Transport Package：FCL
- Specification：9200*2500*3500mm
- Trademark：HW
- Origin：China
- HS Code：8430419000
- Production Capacity：500set,Year
Description
Model
HF-150
Drill hole depth(m)
≤180
The hole diameter(mm)
350-1800
Spindle speed(r/min)
11
Spindle power(kw)
11
The spindle torque(N•m)
12000
Hoist lifting force(kg)
3000×6
Mud pump
Traffic(m³/h)
300
Power(kw)
22
Generating set
The rated voltage(V)
380
Rated current(A)
90
Rated speed(r/min)
1500
Rated power(kw)
50
Main power supporting power
4105-6105 Diesel
Overall dimensions(L x W x H)(mm)
9200×2500×3500
Single weight(kg)
12000

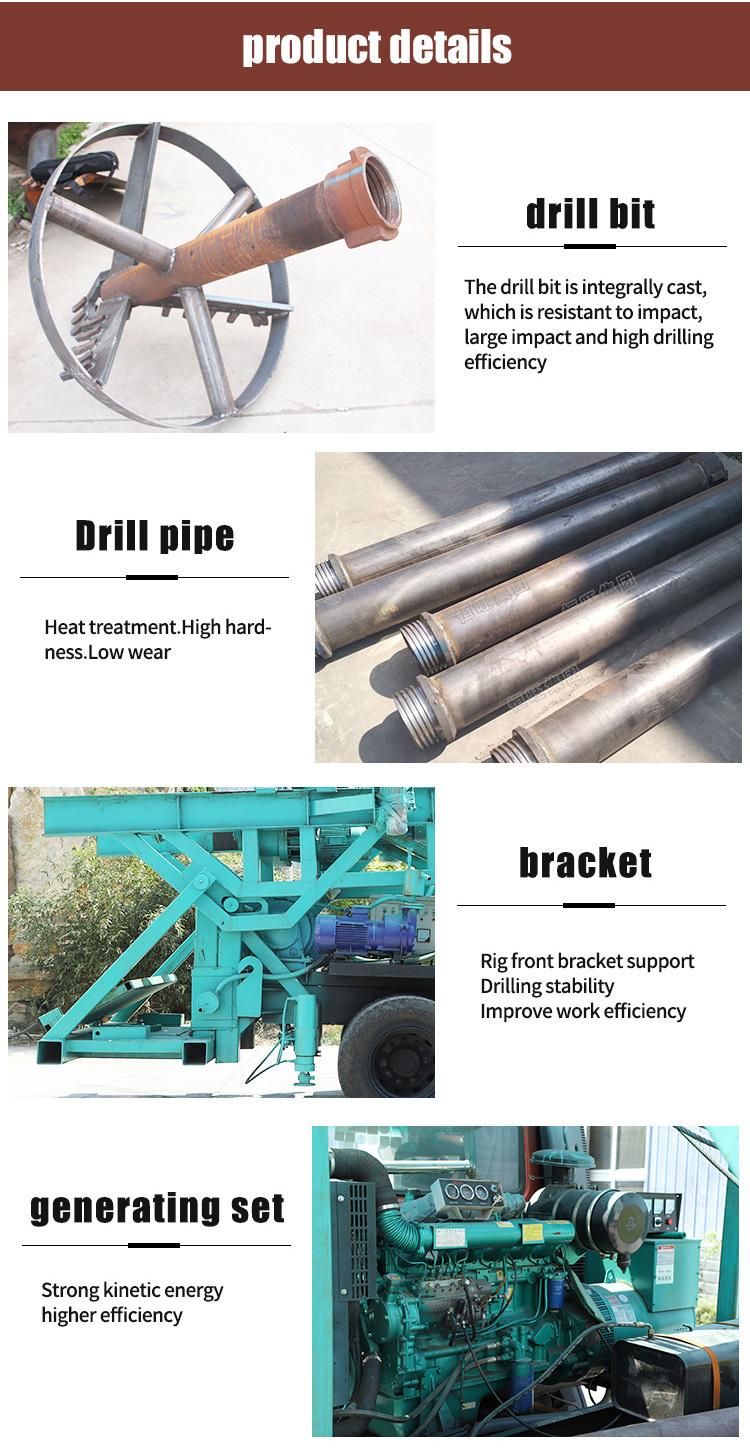

Details Images

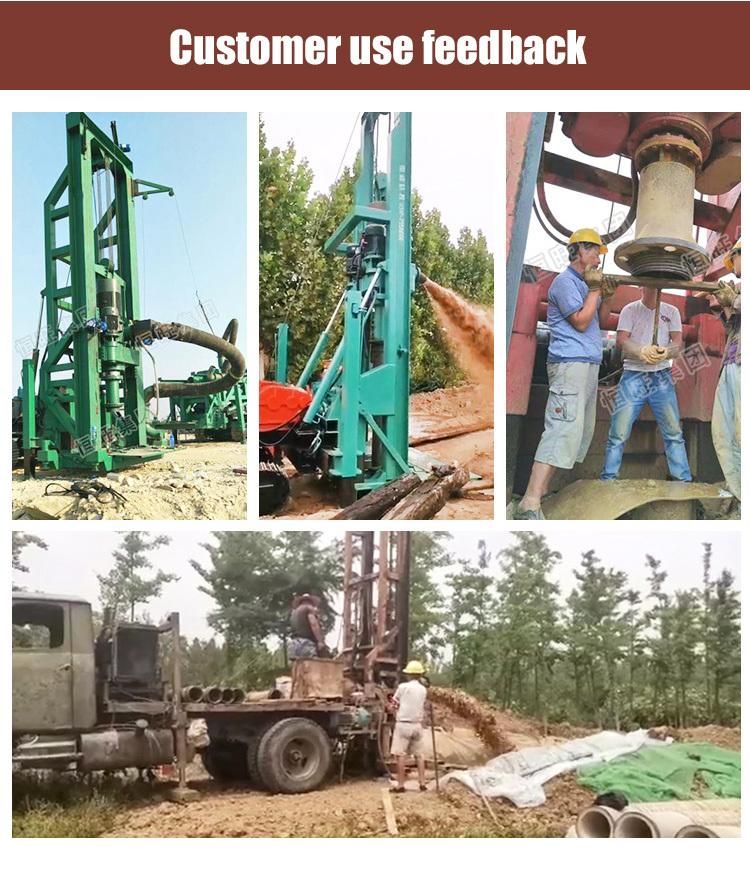

Customer Feedback:
Welcome your enquiry: Hengwang brand drilling rig
