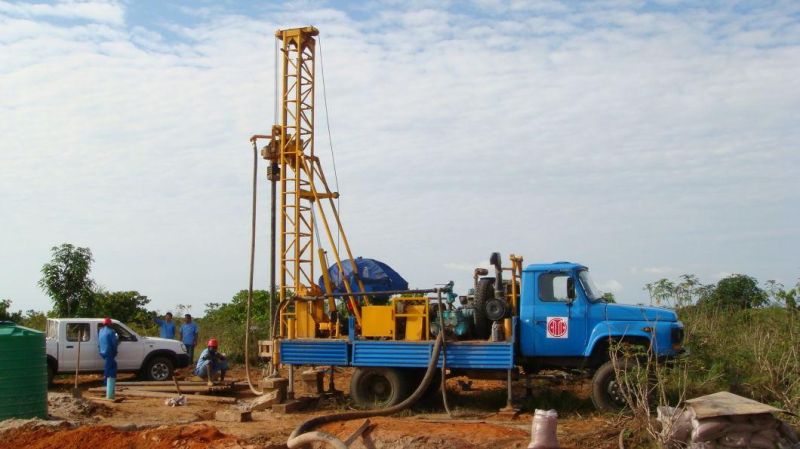

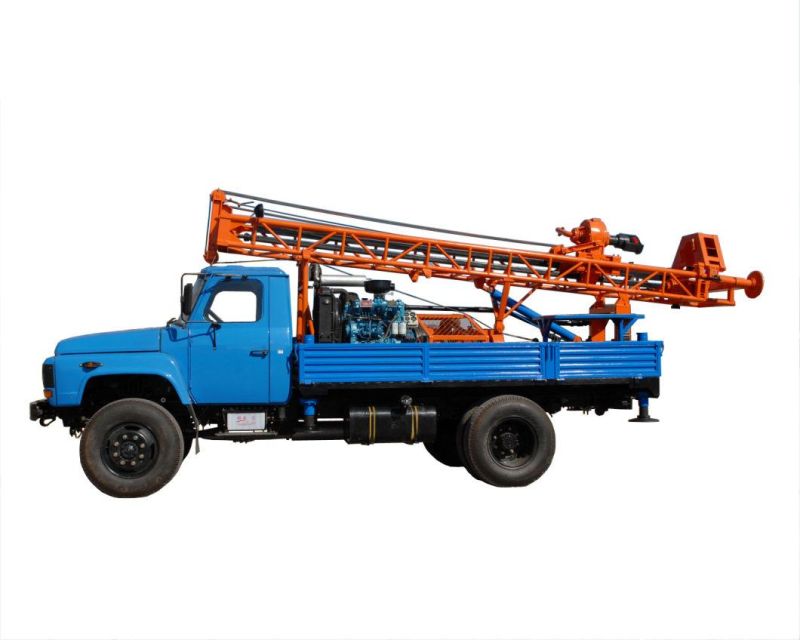

Gl-Iia Truck 250m Truck Mounted Water Well Drilling Rig Water Drill

Glorytek Industry (Beijing) Co., Ltd.
  • Certification：CE
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>200m
  • Bit Type：Drag Bit

Base Info

  • Model NO.：GL-IIA Truck 250m
  • Drilling Way：Compound
  • Type：Trailer Type
  • Drilling Depth：250m
  • Drilling Diameter：90-1200mm
  • Drilling Method：DTH Air Drilling, Core Drilling, Mud Pump Drilling
  • Application Layer：Clay, Sandsoil, Rock, etc
  • Transport Package：Standard Seaworthy Packing
  • Trademark：Glorytek
  • Origin：China
  • Production Capacity：10 Sets,Month

Description

Drill RigEngine powerYuchai YC6A210D 155KWFeed force/pull back force320/320KNRated torque1300N·mMain Shaft Rotating Speed0-48,0-96r/minFeeding Stroke3300mmGuide hole diameterΦ150(185)mmPenetration Angle8-20°Hydraulic system pressure20MpaTravelling Speed2-2.6Km/hStructure Rubber track, mud pump all-in-one machineDimensions2.85(L)×2.25(W)×2.4(H)mweight8.4TMud pumpModelBW-320Max. Flow Rate320L/minMax. pressure7Mpa(10Mpa)Pulping systemEngine parameters4KW diesel enginePulping pump parameters30m3/hSlurry tank capacity2m3Volume6m3/hDrilling ToolsDrill RodΦ73×3000mmPilot bitΦ130(150)mmFluted BackreamerΦ325 Φ400 Φ500 Φ600 Φ720Φ830Measurement and control instrumentOptional
