• Drilling Way：Compound

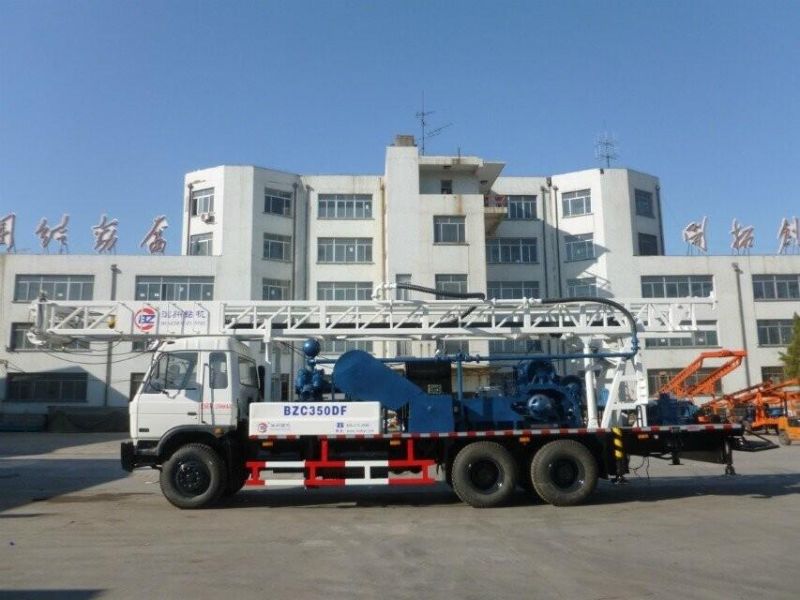

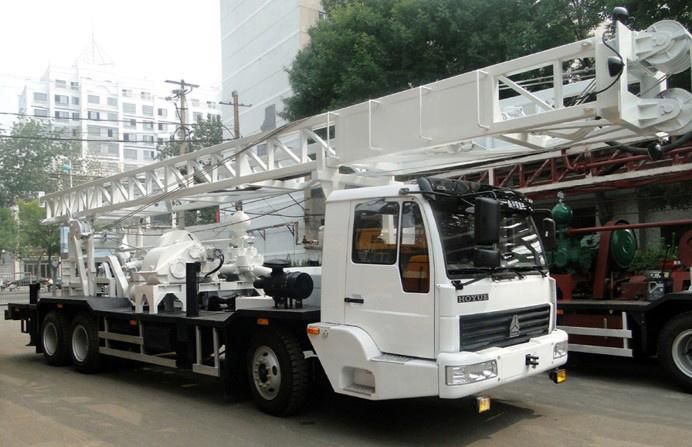

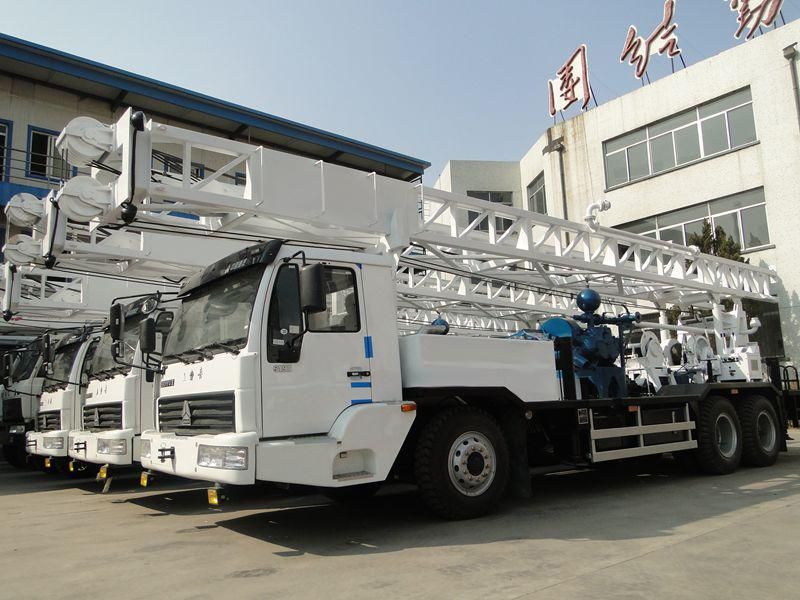

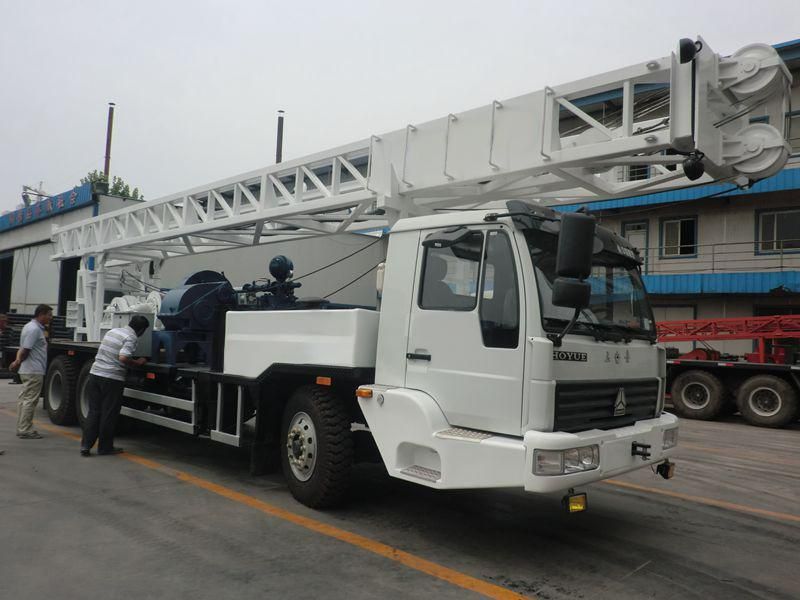

• Type：Truck Mounted Water Wel Drilling Rig
• Drilling Depth：400m
• Drilling Diameter(mm)：500
• Single Rope Lifting Capacity of Main Win：30
• The Highest Speed(Km/H)：75
• Weight(Kg)：19340
• Transport Size(L*W*H)(mm)：12160*2490*3440
• Working Size(L*W*H)(mm)：11110*2490*13110
• Bearing Capacity (T)：25
• The Height of Mast (mm)：11500
• Bearing Capacity of Mast (Kn)：180
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Seaworthy Packing
• Specification：ISO9001
• Trademark：Glorytek
• Origin：Beijing, China
• Production Capacity：100 Sets Per Month

Drilling depth ( M )80300Drilling diameter ( mm )1500500Speed of turntable ( r/min )21.2 ; 36 ; 63.2 ; 100.6 ; 155 ; 20.2 ( reverse )Torque of turntable ( KN.m )18 ; 10.6 ; 6 ; 3.8 ; 2.5 ; 18.9 ( reverse )Single rope lifting capacity of mian windlass ( KN )30The capacity of main windlass(KN)180Single rope lifting capacity of hydraulic windlass ( KN )40The capacity of hydraulic windlass(KN)160The lifting capacity of hook ( KN )180Bearing capacity of mast (KN)180The height of mast (mm)11500Bearing capacity (t)25PipeKelly bar ( mm )108×108×7500Assistant pipe (mm)89×10×5500Hydraulic pumpModelCB-HP50/32ZPump delivery (ml/r)50/32Rated speed (r/min)2000Rated pressure(MPa)20BW850/2A
plunger pumpDiameter of cylinder (mm)150Stroke of piston (mm)180Theory of flow (L / min)600 850Rated pressure (Mpa)3 2Pounding times (min-1)58 82Diameter of suction tube (mm)127Diameter of drain pipe (mm)64Input speed (r / min)470Input power (kw)40Overall dimensions (mm)2000*1030*1400Weight (t)1.5Truck chassisModelTAZ5191TZJDrive form6×4EngineModelTBD226B-6 II (Europe II emission standard)Rated power ( KW )132Speed ( r/min )2300Size ( L*W*H ) (mm)11110×2490×2500Electric generatorModelMFRated power (kw)15Rated voltage(v)400Rated current(A)27Speed (r/min)1500Frequency(Hz)50Protection levelIP21Insulation ClassHThe best working gear (or speed)5thgear ( 1000-1400r/min )The highest speed ( Km/h )75Weight ( kg )19340Transport size ( L*W*H ) (mm)12160*2490*3440Working size ( L*W*H ) (mm)11110*2490*13110
