• Model NO.：GS12000-TS
• Type：Trailer
• Max Torque：250000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Transport Package：Nude Packing
• Specification：21400*3200*3800 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS12000-TS Type Trailer Max Torque 250000 N·m Max Mud Pump Flow Extra Mud Pump Transport Package Nude Packing Specification 21400*3200*3800 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

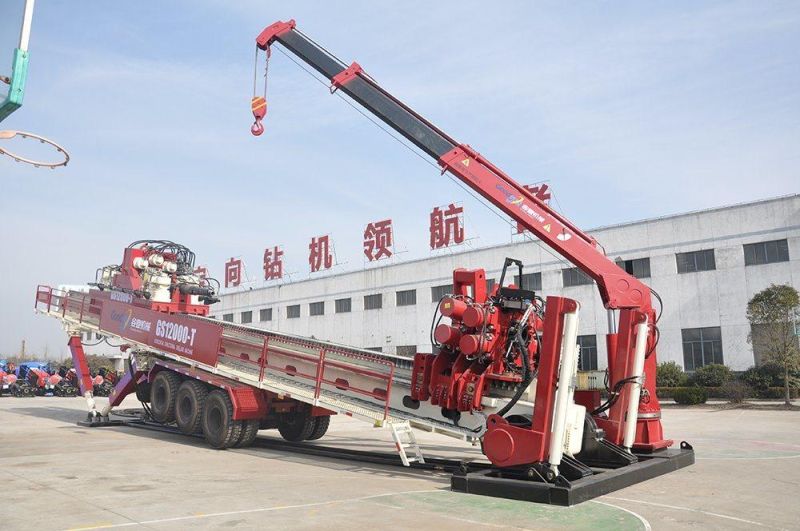

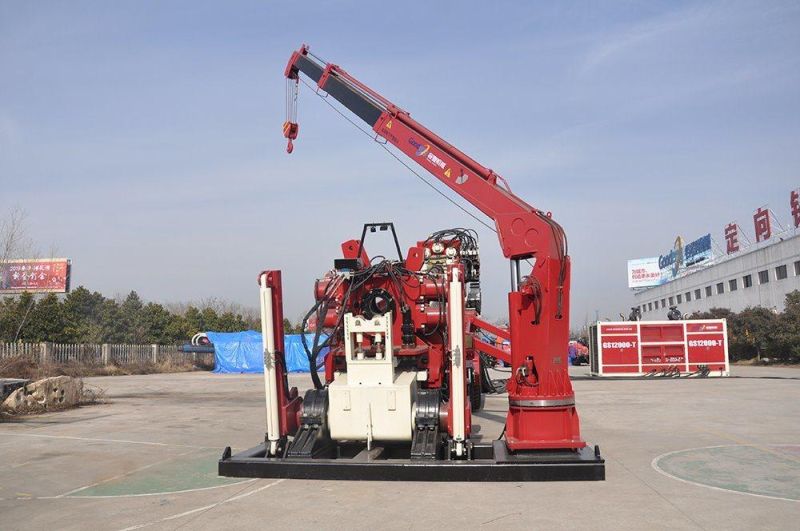

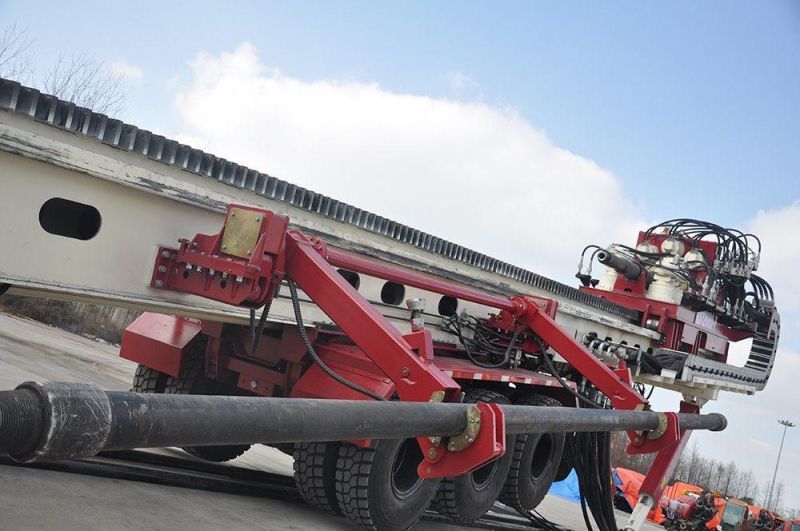

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1. Power system Adopts 3 sets of Volvo (or Cummis) engine, three engines can work independently to meet the different working condition, making it energy-saving and systematically reliable.
2. Unique driving head design
a) Dual structure gear box with finite element stiffness and strength standard design, making it extremely strong.
b) Submerged design improves the stress condition under max push & pull force.
c) Driving head adopts main shaft floating design.
3. Brand-new optimized four-point clamp, the improvement of structure stiffness, strength, cylinder strength and the increase of unscrewing torque making it easy to change the grips, clamp is all-floating and clamping force is stepless adjustable in accordance with the rod size and working condition.
4. Optional heavy-duty automatic manipulator is Goodeng patent to relieve the heavy labor work .
5. Application of  intelligent electrical-hydraulic combined control and  monitor system
a) Digitally display rig working parameters: rotation torque, totation pressure, rotation speed, push&pull force,  push&pull pressure, push&pull pressure speed, clamping pressure, slurry pressure etc.
b) electrical-hydraulic intelligent monitor and debug system: automatically inspect and debug hydraulic system fault, convenient for the maintenace.
c) electrical-hydraulic combined control system: set constant torque for automatic drilling, avoid the overbend and damage of drill rod by misoperation.
d) Application of  pendulum electrical control technique for rocky condition, specialize for rocky condition, enhance the efficiency of  drilling in the rock.
6. Application of  clutch patented technology: the application of mechanic and hydraulic clutch in rotation and push&pull transmission system can decide the quantity of working motors in accordance with working requirement  to improve the efficiency of power system.
7. Rod rebound nergy recycle and release system (core technology): avoid the damage of motor due to overspeed and overload, especially for large diameter rock drilling project.
8. Advanced electric proportional hydraulic control system: adopt high-efficiency, energy-saving, high temperatue resistant, pollution resistant, state-of-the-art hydraulic components.
9. The selection of state-of-the-art electrical components and the integral design of wiring harness ensure the reliability and stability of electrical system.
10. Main body is design as trailer, Connecting with automobile head, it can be transported directly on ordinary road, which is convenient for transportation and transfer.

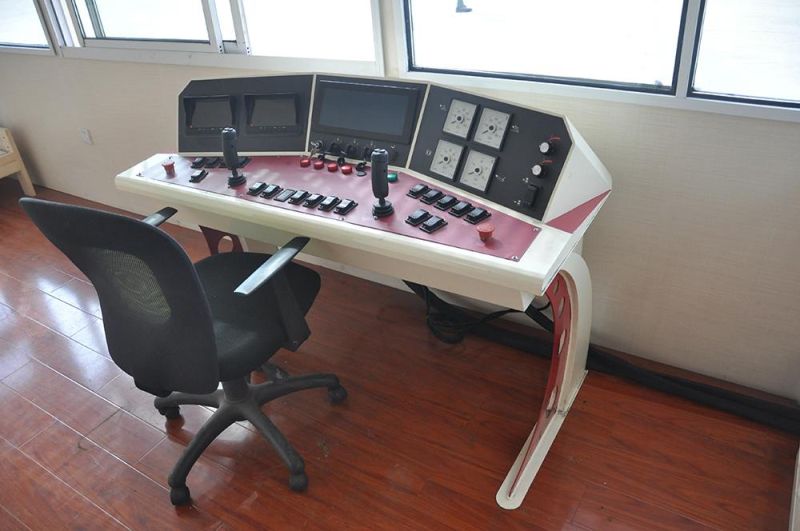

11. The operation cabin is capacious and bright with humanized bench board make it easy and comfortable for work.
12. Main rig is fitted with nonslip passage and guardrail.

[Main Technical Parameters]


Driving Head Max. TheoreticalTorque	250000 N.m	Drill Incidence°	8-18°
Driving Head Max. Theoretical Push & Pull Force	11500 kn	Max. Clamping Force of Pipe Jaw	2900 kn
Max. Working Pressure Set in System	40 Mpa	Max. Unscrewing Force of Pipe Jaw	520000 N.m
Max. Flow in Hydraulic System	3000 L/min	Rig Dimension(L*W*H)	21400*3200*3800 mm
Drill Pipe Diameter	Φ168-Φ254mm	Rig Weight	About 81T
Max. Length of Drill Pipe	9.6 m	Power Station Dimension(L*W*H)	6100*2500*2700 mm
Driving HeatMax. Rotation Speed	85 rpm	Power Station Weight	ABout 22T
Driving Heat Max. Push & Pull Speed	40 m/min	Permitted Working Temperatue	-30~50°C
Main Spindle Floating Distance	140 mm	Permitted Enviroment Humidity	>90%
Mud Pump Channel Diameter	4"	Permitted Working Altitude	Altitude 0-3000m
Max. Mud Flowing Volume	4000 L/min	Referential Back-reaming Aperture	Φ2600mm(Soil Depended)
Max. Mud Pressure	20 Mpa	Referential Drilling Distance	3500 m
