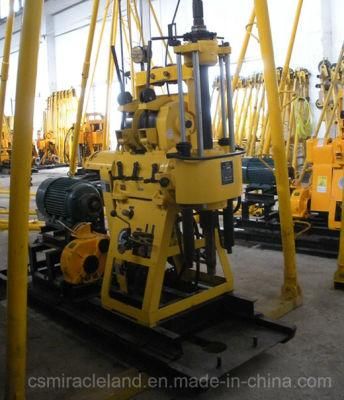

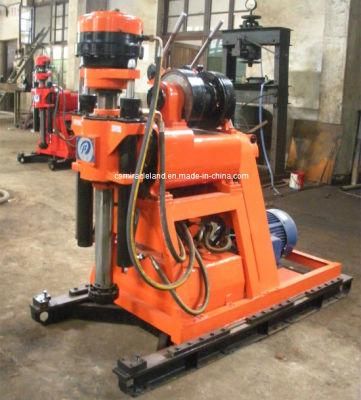

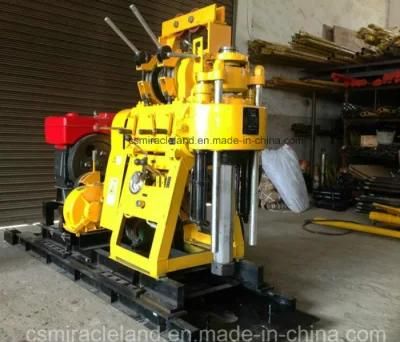

Exploration Core Drilling Rig (YZJ-130)

Changsha Miracleland Import & Export Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：76-300mm
  • Drill Hole Depth：130m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：YZJ-130
  • Drilling Way：Rotary
  • Stability：Good
  • Transport Package：in Plywood Case
  • Specification：130m
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430490000
  • Production Capacity：20 Sets,Month

Description

Unity machine parameterDrilling depth(m)130Open hole diameter max.(mm)Φ220End hole diameter(mm)Φ75Drilling rod diameter(mm)Φ50Head angle range90°~75°Weight(power unit excepted)(kg)560SpindleSpindle speed(r/min)142\285\570Spindle stroke(mm)450HoistSingle rope lifting capacity max.(kg)1600Single rope lifting speed(m/s)0.41\0.82\1.64Reel diameter(mm)140Steel wire rope diameter (mm)Φ13Steel wire rope length of drum(m)27Mud pumpTypeHorizontal single-urn double actionDiesel engine displacement/Electric motor95/77 LminPressure max.(Mpa)1.2Work pressure(Mpa)0.7Water inlet diameter(mm)Φ30Water outlet diameter(mm)Φ20Triangle conveyer belt(mm)B1575
