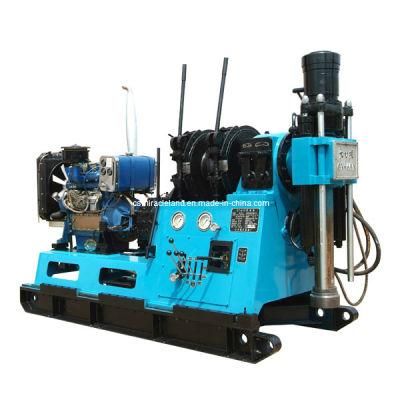

Hydraulic Movable Water Well Drilling Rig (YZJ-200Y)
Changsha Miracleland Import & Export Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：YZJ-200Y Hydraulic Movable Water Well Drilling Rig
- Drilling Way：Rotary
- Type：Vertical Shaft
- Dimensions：2430X950X1430mm
- Usage：Coal, Ore, Water Well
- Transport Package：I
- Specification：200
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8430490000
- Production Capacity：20 Sets,Month
Description
Unity machine parameterDrilling depth(m) 150\200 Open hole diameter max.(mm) Φ300 End hole diameter(mm) Φ75 Drilling rod diameter(mm) Φ60 Head angle range 90°~75° Weight(power unit excepted)(kg) 1150 Dimensions(mm) 2430x950x1430 The main machine's moving distance(mm) 300 Spindle Spindle speed(r/min) 104\208\467\907 Spindle stroke(mm) 450 Hoist Single rope lifting capacity max.(kg) 2400 Single rope lifting speed(m/s) 0.41\0.82\1.64 Reel diameter(mm) 260 Steel wire rope diameter (mm) Φ13 Steel wire rope length of drum(m) 35 Hug floodgate belt width(mm) 70 Hug floodgate diameter(mm) 260 Mud pump Type Horizontal single-urn double action Diesel engine displacement/Electric motor 145Lmin Pressure max.(Mpa) 3 Work pressure(Mpa) 1.5 Water inlet diameter(mm) Φ40 Water outlet diameter(mm) Φ30 Triangle conveyer belt(mm) B1100x1 Hydraulic pump standard CBT-F-314 Diesel engine 170L/min Electric motor 140L/min
