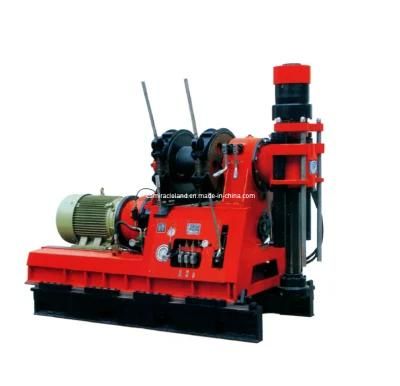

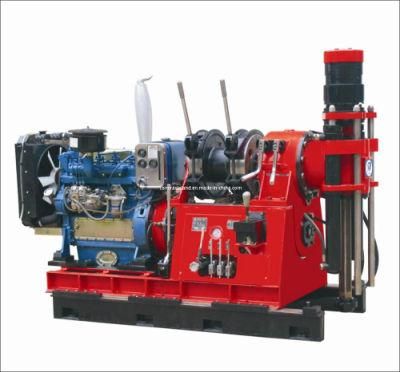

Geological Exploration Hydraulic Drilling Rig (HGY-1000)
Changsha Miracleland Import & Export Co., Ltd.- Condition：New
- Drilling Depth：1000m
- Spindle Hole Diameter：95mm
- Stability：Good
- Quality：High Quality
- Dimensions：2400X1020X1765mm
Base Info
- Model NO.：HGY-1000 Geological Drilling Rig
- Usage：Coal, Ore, Water Well
- Power Type：Diesel
- Type：Core Drilling Rig
- Transport Package：in Plywood Case
- Specification：CE, ISO9001: 2008, SGS
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8430691900
- Production Capacity：50 Sets,Month
Description
Basic Info.
Model NO. HGY-1000 Geological Drilling Rig Usage Coal, Ore, Water Well Power Type Diesel Type Core Drilling Rig Transport Package in Plywood Case Specification CE, ISO9001: 2008, SGS Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 50 Sets/MonthProduct Description
HGY-1000 Geological Drilling Rig:Drilling depth(m): 1000;
Spindle Stroke(mm): 600;
Spindle lifting power max. (KN): 80;
Spindle driving force max. (KN): 60;
Oil pump type: CB-F32C-FL;
Product Features:
Compact in structure and light weight.
High reliability, good performance and durability.
Common auto parts, such as clutch and declutch structure, transmission case and shiftine structure.
Easy operation and high efficiency with Synchronizer for shifting while the rig is Running.
Suitable to wide range of rotation inner dia. 95mm.
Be attached to the tower.
Product Application:
It is widely used in the construction of the projects e. G. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
| Type | HGY-1000 Drilling Rig |
| Drilling depth(m) | 1000 |
| Oil pump type | CB-F32C-FL |
| Oil pump nominal displacement(ml/r) | 32 |
| Stroke of moving cylinder (mm) | 400±10 |
| Spindle speed(r/min) | Positive rotation rate: 51\93\160\246\350\149\268\463\710\1011 Reverse rotation rate: 57\164 |
| Spindle hole diameter(mm) | Φ95 |
| Spindle output torque(N.M) | 5055 |
| Spindle stroke(mm) | 600 |
| Spindle driving force max.(KN) | 60 |
| Spindle lifting power max.(KN) | 80 |
| Speed of single rope of the third layer(m/s) | 0.44\0.80\1.38\2.12\3.02 |
| Lift capacity of single rope max.(KN) | 35 |
| Diameter & Length of drum(mm) | Φ15x100 |
| Max distance from the hole(mm) | 250 |
| Weight(power unit excepted)(kg) | 1720 |
| Dimensions(L x W x H)(mm) | 2400x1020x1765 |
| Diesel engine type | K4100ZD |
| Diesel engine power (KW) | 41 |
| Oil pump nominal rotative velocity(dmin) | 1800 |
| Oil pump nominal pressure(MPa) | 16 |
| Electric motor type | YB200L-4 |
| Electric motor power(KW) | 30 |
