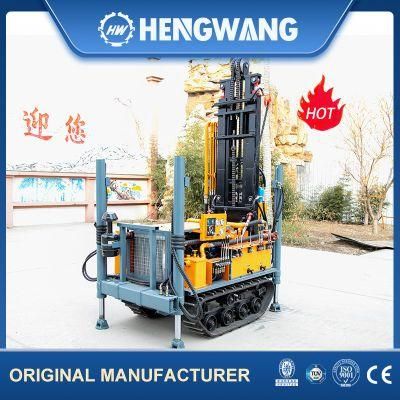

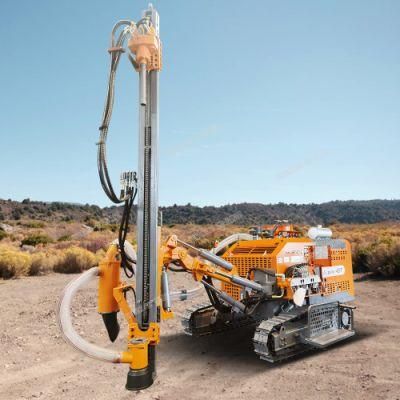

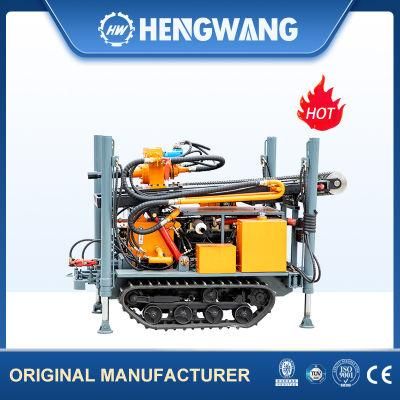

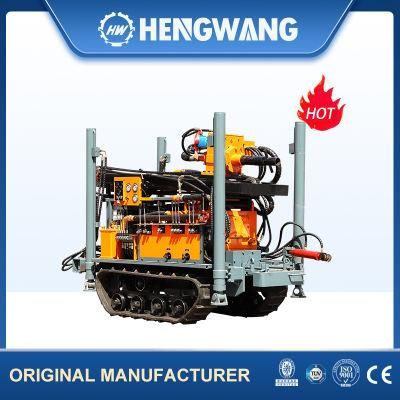

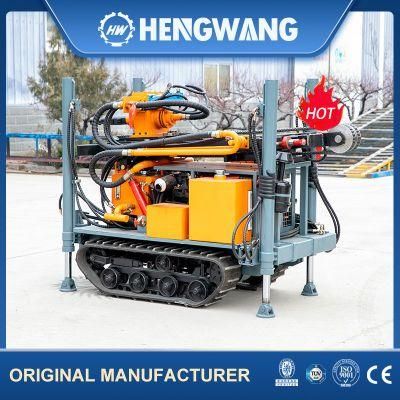

Mining Pneumatic Stone Breaking Blasting Hole Drill Rigs

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Yuchai
  • Drill Hole Diameter：90-127mm

Base Info

  • Model NO.：HW421T
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Rated Power：58kw
  • Hole Depth：30m
  • Pull up Force：25 Kn
  • Feed Force：15 Kn
  • Rotation Torque (Max.)：1,950 N.M
  • Drill Pile Sizes：60*3000 mm
  • Hole Dia：90-127 mm
  • Tramming Speed (Max.)：2.5 Km,H
  • Gradient：25°
  • Total Weight：3,250kg
  • Transport Package：Standard Packaging
  • Specification：4, 900X2, 000X2, 200 mm
  • Trademark：Hengwang
  • Origin：Shangdong
  • Production Capacity：100PCS ,Month

Description

Main technical specifications

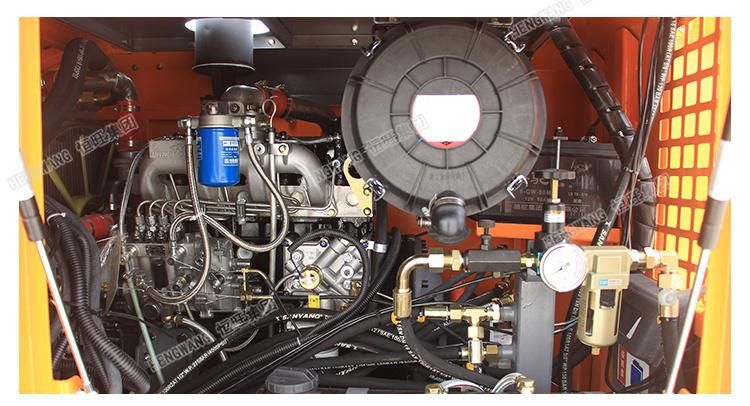

Power

Yuchai YC6J220 162 kW

Hole Depth

20m

Drill Pile Sizes

60 mmX3000 mm

Hole Dia

80-115mm

DTH Hammer

3.5"

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-110 rpm

Working Pressure

14.5 bar

F.A.D

12 m3/min

Tramming Speed (Max.)

2/3 km/h Dual Speed

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

6,800 kg

Transportation Dimensions

6,000X2,800X2,750 mm

Dry Dust Collector

Standard

Dual Speed Walking Motor

Standard
