• Drill Hole Depth：100-150m
• Bit Type：Diamond Bit
• Drilling Way：Impactor
• Type：Crawler
• Drilling Diameter：130-203mm
• Drilling Depth：160m
• Drill Rod Specifications：2m,PC
• Overall Weight(T)：2.6
• Color：Customized
• One-Time Advance Length of The Drill (mm：1500
• Traveling Speed (Km/H )：30
• Climbing Capacity (Max )：25
• Working Air Pressure (MPa )：1.45-2.5
• Air Consumption (M3 /Min )：15-27
• Main Machine Power：40
• Rotation Speed (Pm)：38 - 80
• Rotary Torque (Nm )：4000-5000
• Speed：25m,H
• Transport Package：LCL Loading
• Specification：2000*1200*1750mm
• Trademark：HW
• Origin：China
• HS Code：8430419000
• Production Capacity：8000 Set ,Year

Engine model

Yucai

Maximum lifting force(ton)

10-15

Power(kw)

63

Maximum rod length(m)

2.4

Model

HWY160

Air consumption(m3/min)

10-25

Drilling diameter(mm)

0130-0203

Working air pressure(mpa)

1.2-3.0

Drilling depth(m)

150

Drill pipe diameter(mm)

076-089

Walking speed(Km/h)

2.5

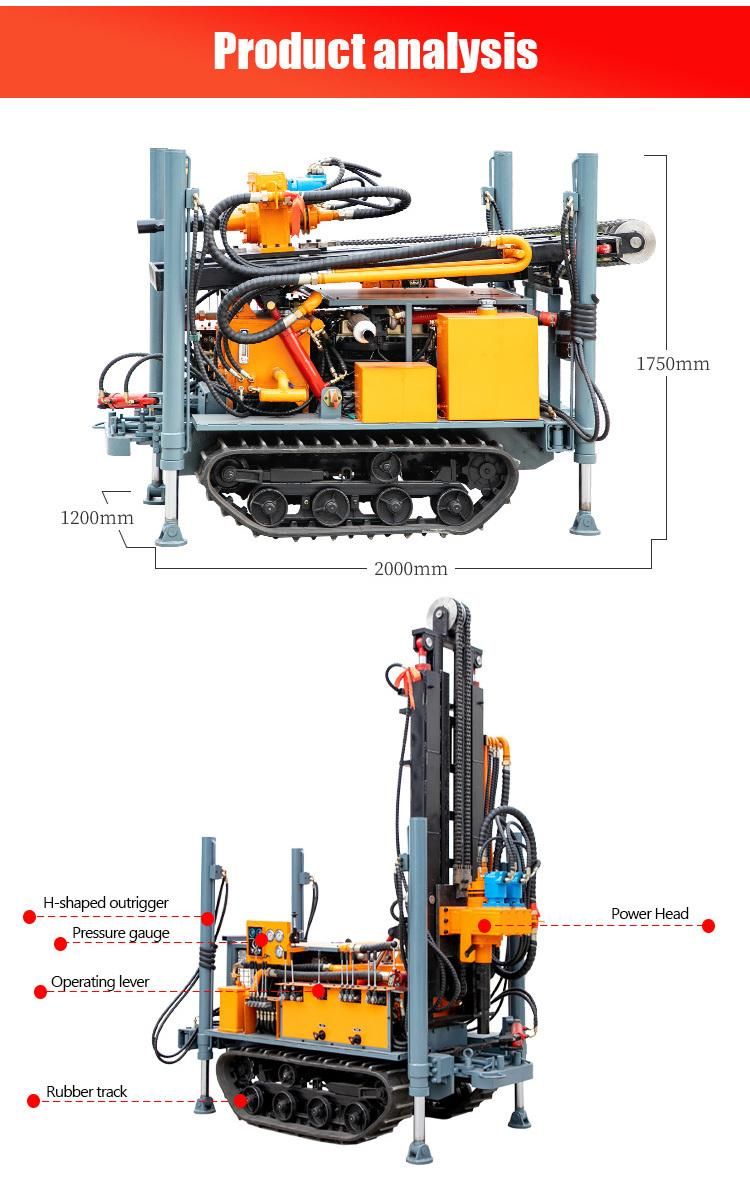

Dimensions (L * W * H)(mm)

2000*1200*1750

Gradeability(°)

30

Machine weight(t)

2.6

Rotation speed(r/min)

65-100

Swing torque(N.m)

4500

Packing and delivery
LCL loading

Certification

Our drilling rig had passed CE ISO certificate
