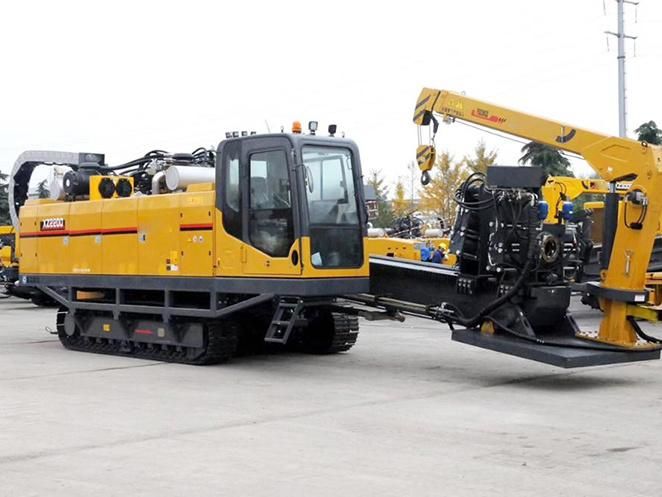

China Top Brand HDD Xz320d 320kn Horizontal Directional Drill Rig

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Repair Service, Online Support
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：73mm
  • Drill Hole Depth：>150m

Base Info

  • Model NO.：XZ320D
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Dimension Lxwxh：6500*2250*2450 mm
  • Overall Weight：10500 Kg
  • Engine Model：6btaa5.9-C205
  • Engine Power：153 Kw
  • Thrust-Pull Mode：Rack and Pinion
  • Max.Pullback/Thrusting：320 Kn
  • Max.Spindle Torque：12000 N.M
  • Spindle Speed：0-140 R,Min
  • Spindle Traveling Speed：22 M,Min
  • Max.Backreaming Diameter：600 mm
  • Pipe Length(Single)：3 M
  • Pipe Diameter：60 mm
  • Max Inclination Angle：20
  • Max.Mud Flow Rate：320 L,Min
  • Max.Mud Pressure：8 MPa
  • Transport Package：Nude Package,Container
  • Specification：10500 kg
  • Trademark：Top Brand
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：300,Month

Description

Product Paramenters
 Details Images

China Top Brand HDD Xz320d 320kn Horizontal Directional Drill RigChina Top Brand HDD Xz320d 320kn Horizontal Directional Drill RigChina Top Brand HDD Xz320d 320kn Horizontal Directional Drill Rig
Company InformationChina Top Brand HDD Xz320d 320kn Horizontal Directional Drill Rig
