HDD Machine Horizontal Directional Drilling Machine Xz320d

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Repair Service, Online Support
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：73mm
  • Drill Hole Depth：>150m

Base Info

  • Model NO.：XZ320D
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Dimension Lxwxh：6500*2250*2450 mm
  • Overall Weight：10500 Kg
  • Engine Model：6btaa5.9-C205
  • Engine Power：153 Kw
  • Thrust-Pull Mode：Rack and Pinion
  • Max.Pullback/Thrusting：320 Kn
  • Max.Spindle Torque：12000 N.M
  • Spindle Speed：0-140 R,Min
  • Spindle Traveling Speed：22 M,Min
  • Max.Backreaming Diameter：600 mm
  • Pipe Length(Single)：3 M
  • Pipe Diameter：60 mm
  • Max Inclination Angle：20
  • Max.Mud Flow Rate：320 L,Min
  • Max.Mud Pressure：8 MPa
  • Transport Package：Nude Package,Container
  • Specification：10500 kg
  • Trademark：Top Brand
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：300,Month

Description

Product Paramenters

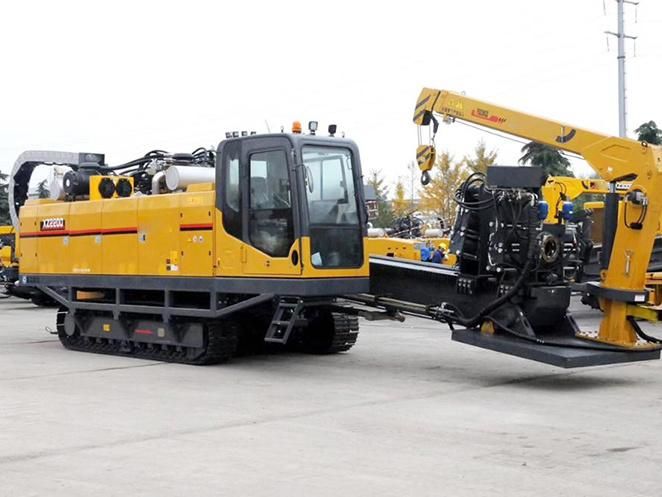

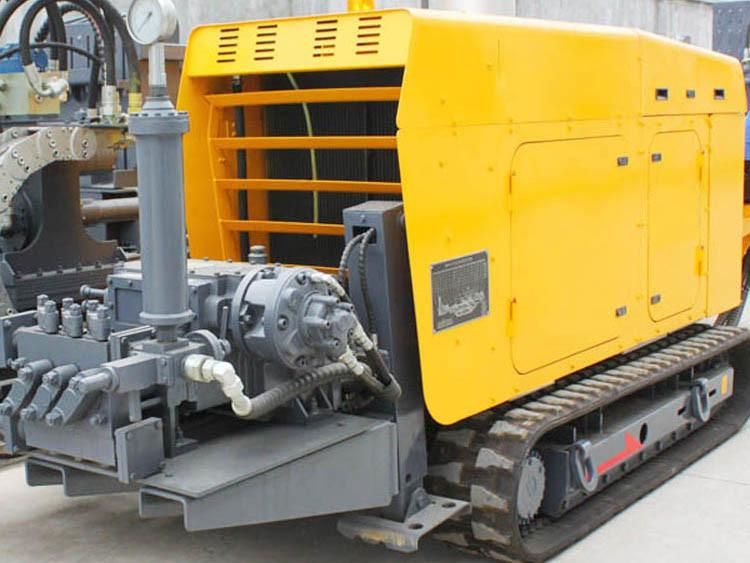

 Details Images
