Drilling Rig

DTH Hammer Mining Blasting Water Well Drilling Machine Price

Henan Yugong Machinery Co., Ltd.
  • After-sales Service:Provided
  • Warranty:Provided
  • Certification:CE, ISO 9001:2008
  • Condition:New
  • Motor:Diesel Engine
  • Drill Hole Diameter:100-350mm

Base Info

  • Drill Hole Depth:150-200m
  • Bit Type:Diamond Bit
  • Drilling Way:Impactor
  • Product Name:Water Drilling Rigs
  • Model:Yg Dilling Rig Machine
  • Drill Depth:100-600m
  • Hole Diameter:100-350 mm
  • Drill Pipe Diameter:60,76,89,102mm
  • Function:High Speed Water Well Drilling Machine
  • Size:3.8*1.95*2.7 M
  • Vertical Stroke:450mm
  • Keywords:Pneumatic Water Drilling Rig
  • Applications:Water Borehole Drilling Rig Machine
  • Drilling Efficiency:40m Per Hour
  • Transport Package:Container
  • Specification:Drilling rig
  • Trademark:Yugong
  • Origin:China
  • HS Code:8430419000
  • Production Capacity:1000 Sets Per Month

Description

Model

YG-130

YG-200

YG-300

YG-400

Weight(Ton)

3

5.5

9

10

Drilling Diameter(mm)

100~219

140~305

140~325

140~350

Drilling Depth(mm)

130

200

300

400

Walking Speed(Km/h)

0.8

2.5

2.5

2.5

Climbing Angles

30

30

30

30

Power(Kw)

32

65

84

95

Pressure(Mpa)

1.45~2.5

1.7~3.0

1.7~3.3

1.7~3.5

Air Consumption(m³/Min)

15~29

17~30

17~35

17~35

Drilling Pipe Length(M)

1/1.5

1.5/2.0/3.0

1.5/2.0/3.0

1.5/2.0/3.0

Rig Lifting Force(T)

5

18

28

24

Dimension

4000*1450

*2050

3800*1700

*2350

5500*1950

*2780

5200*2000

*2780

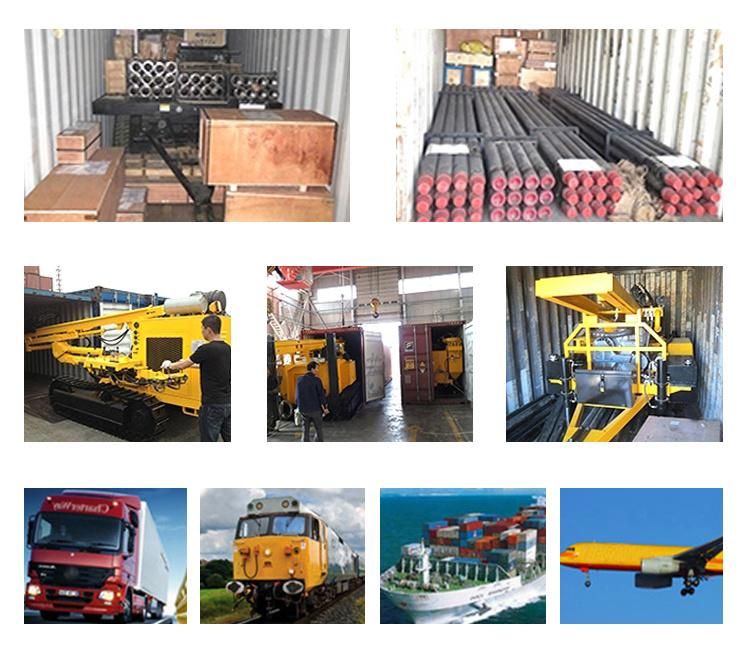

DTH Hammer Mining Blasting Water Well Drilling Machine PriceDTH Hammer Mining Blasting Water Well Drilling Machine PriceDTH Hammer Mining Blasting Water Well Drilling Machine PriceDTH Hammer Mining Blasting Water Well Drilling Machine PriceDTH Hammer Mining Blasting Water Well Drilling Machine PriceDTH Hammer Mining Blasting Water Well Drilling Machine PriceDTH Hammer Mining Blasting Water Well Drilling Machine PricePacking&shipment of drilling rigs machine:

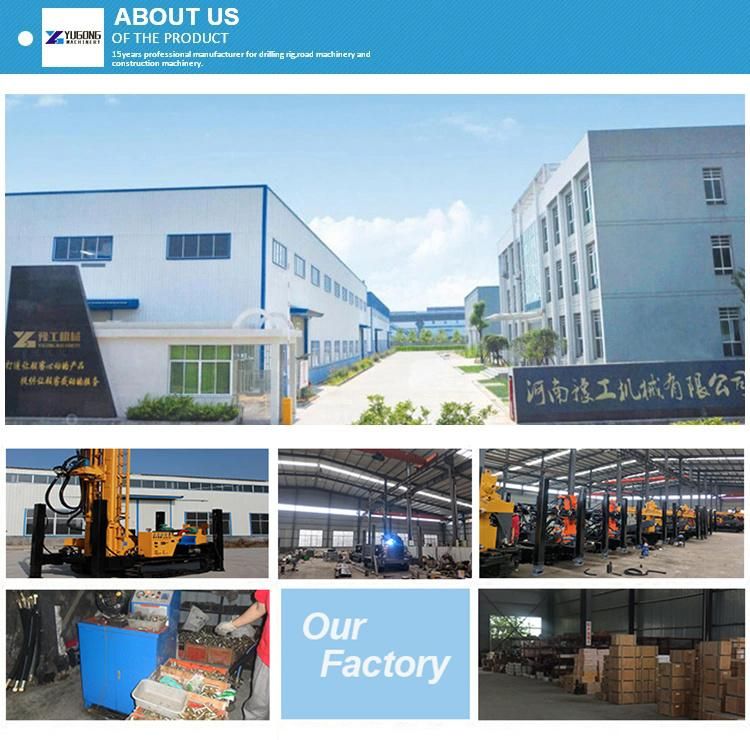

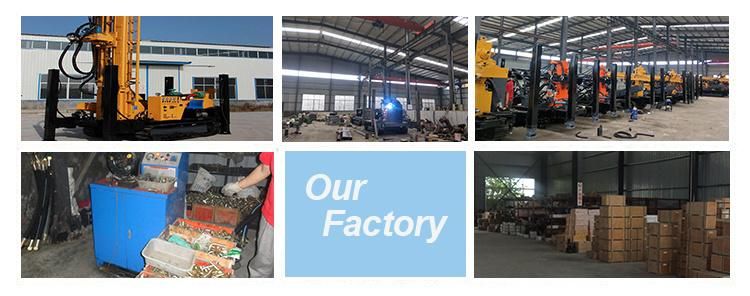

DTH Hammer Mining Blasting Water Well Drilling Machine PriceCompany&Team:
