• Model NO.：ZTSk-153
• Drilling Way：Rotary
• Drilling Method：Rotary and Impacting
• Color：Yellow
• Size：Big-Size Drilling Rig
• Automatic：Full Automatic
• Transport Package：Wooden Box
• Trademark：ZHONGTUO
• Origin：China
• HS Code：8430412200
• Production Capacity：50piecces,Month

Basic Info.

Model NO. ZTSk-153 Drilling Way Rotary Drilling Method Rotary and Impacting Color Yellow Size Big-Size Drilling Rig Automatic Full Automatic Transport Package Wooden Box Trademark ZHONGTUO Origin China HS Code 8430412200 Production Capacity 50piecces/Month

Product Description

Hydraulic Rock Splitter Crawler

Description:
1 low-speed high-torque hydraulic motor drive rotary device output torque required for drilling operations.
2 with the cylinder to promote, so that more stable propulsion, failure rate than the motor propulsion significantly reduced.
3 two-stage filter device to effectively ensure the safety of diesel engines to extend the life of diesel engines.
4 can monitor the hydraulic system pressure and push the pressure at any time to ensure that the rig stable and efficient operation.
Thoughtful service to win the trust of customers.

description:

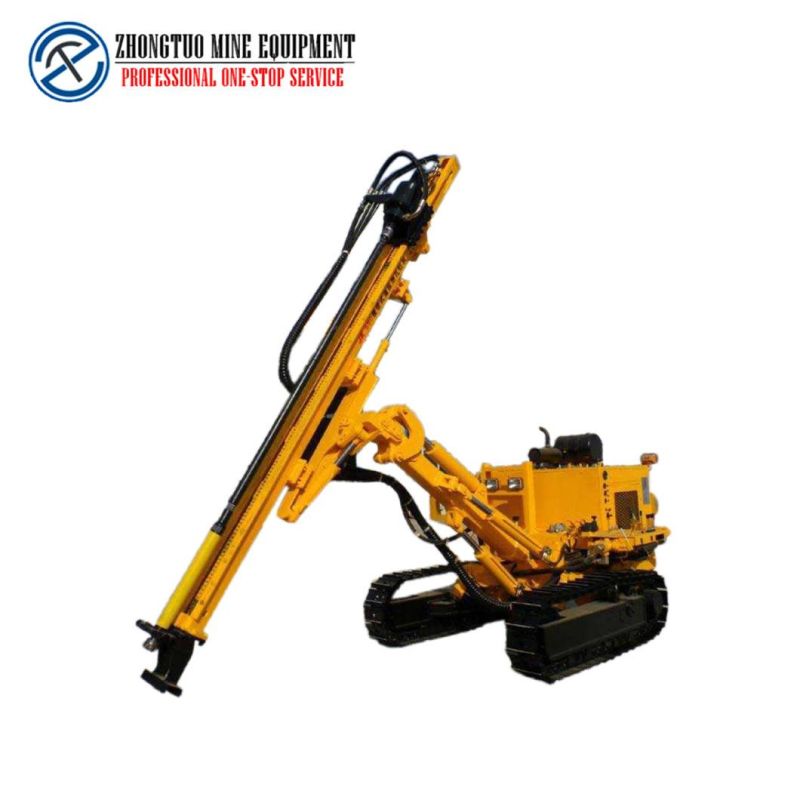

Hydraulic DTH Drill is a high-grade rig with a stent-type down-hole drilling rig with excellent performance and powerful features. Hydraulic downhole drilling rig, walking downhole drilling rig, open pit drill.

products use:
 pneumatic crawler drill is mainly used for open-pit mine mining, hydropower engineering, road construction and other stone works crawler drilling machine operations.

product parameters:


Models	ZT100A
Adapt to rock hardness	F=6~20
Drilling diameter	80~130mm
Drilling vertical hole depth	30m
monitor rate	20kw
Walking speed	2.0km/h
Single climbing ability	30°
Maximum lifting force	15KN
One push trip	3000mm
Working pressure	0.5-1.4Mpa
Gas consumption	7-12m³/min
Rotational speed	0-70r/min
Specifications of drill pipe	Φ60×2000mm
Total Weight	3.5T

Note:

1, ready to rock caverns, the cavern specifications can be determined according to the method of hydraulic crawler drill machine holes, the general level of the hole when the hole cut 2.6-2.8 m height, chisel on the hole, down to the hole or the hole when the hole width Is 2.5 meters, height of 2.8-3 meters.
2, the gas and water pipelines, lighting lines and other lead to stand near the working face.
3, according to the design requirements for the hole, the pillars erected firmly. The upper and lower ends of the pillars to mat board, the horizontal axis and the ring in accordance with a certain height and direction of the pillars installed on the use of hand winch machine lift, according to the desired angle fixed to the pillar, and then adjust the hydraulic dth drill rig hole to.


FAQ:

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

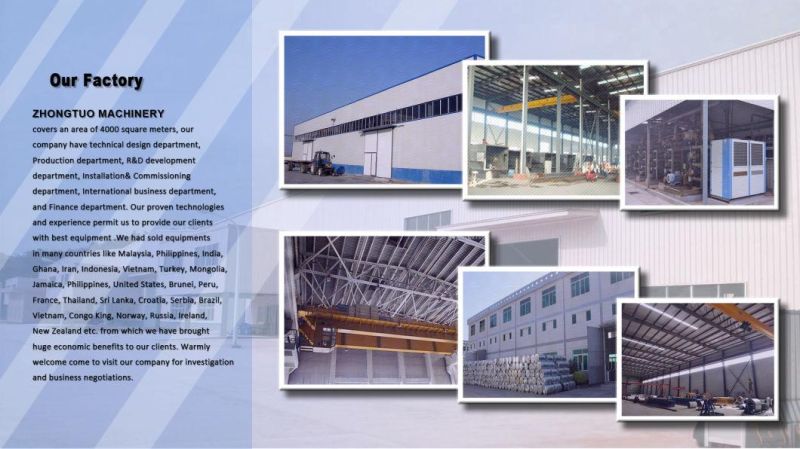

About Our Factory:


About the products:



Packing and Shipping:

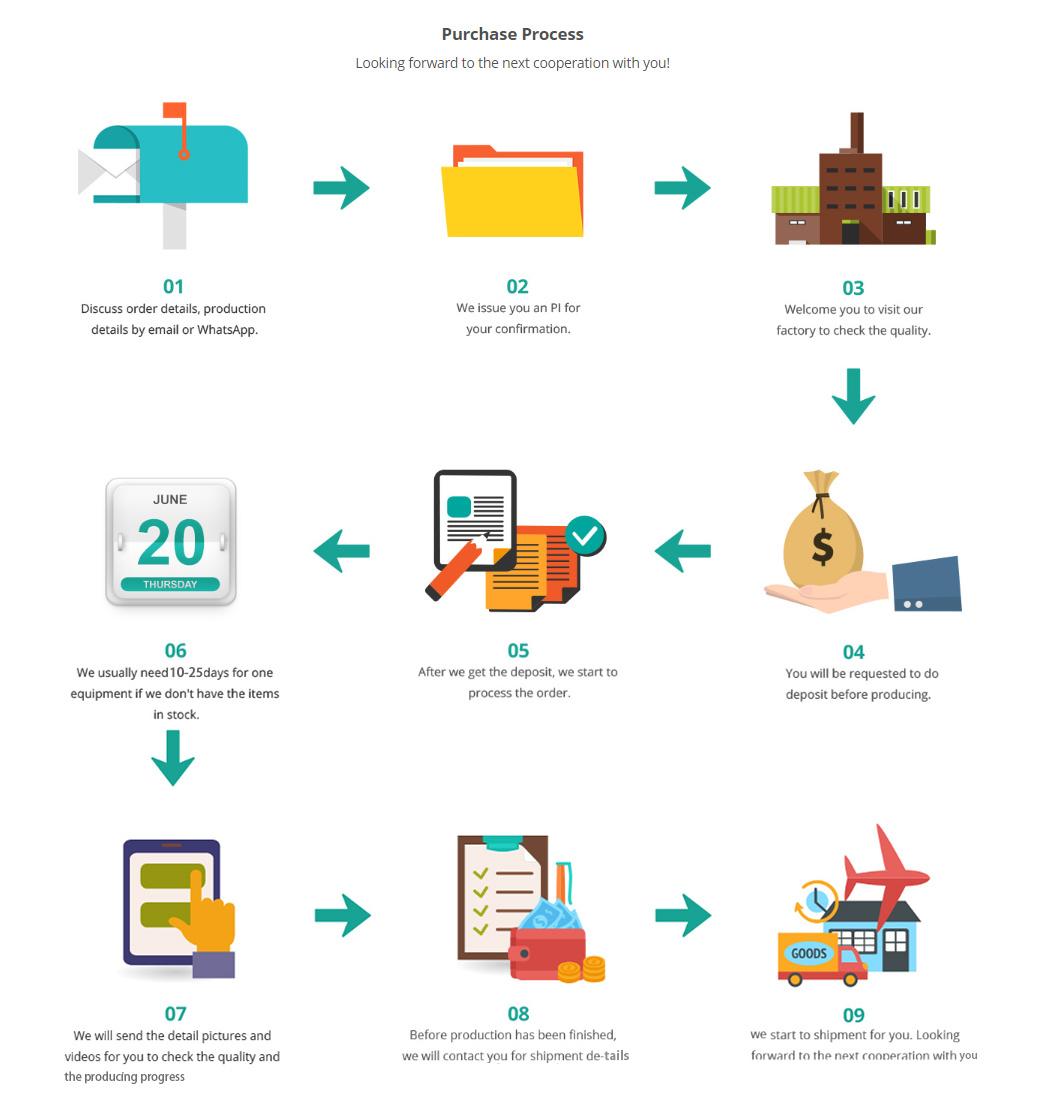

Purchase Process:

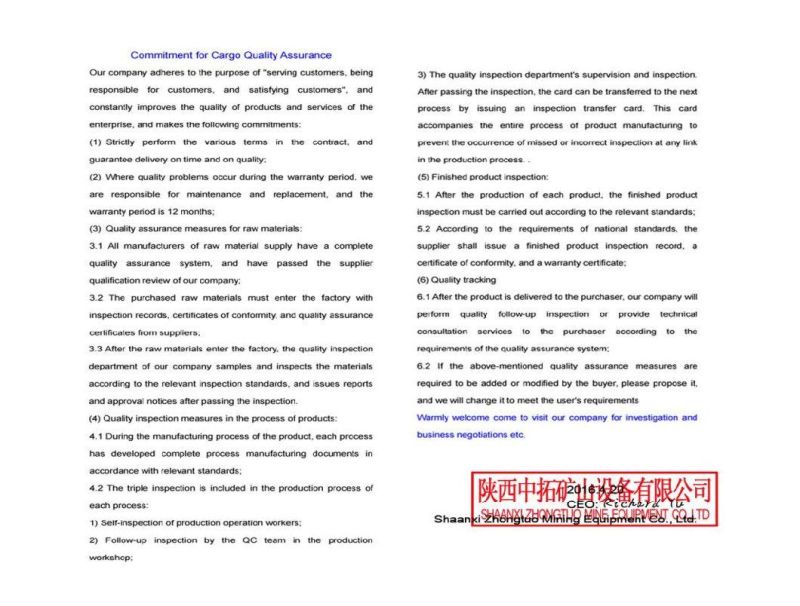

About the Quality:


Others:


Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
