• Model NO.：YG-F200
• Drilling Way：Rotary
• Type：Crawler
• Product Name：Drilling Rig
• Application：Water Well
• Model：Yg-F200
• Drill Depth：200m-600m
• Dril Diameter：140-350 mm
• Power：65kw-120kw
• Engine：Diesel
• Drill Rod Dia.：76mm,89mm,102mm
• Drill Rod Length：3000 mm
• Weight：6tons
• Transport Package：Standard Wooden Case
• Specification：Drilling rig
• Trademark：Yugong
• Origin：China
• HS Code：8430419000
• Production Capacity：6000

Basic Info.

Model NO. YG-F200 Drilling Way Rotary Type Crawler Product Name Drilling Rig Application Water Well Model Yg-F200 Drill Depth 200m-600m Dril Diameter 140-350 mm Power 65kw-120kw Engine Diesel Drill Rod Dia. 76mm/89mm/102mm Drill Rod Length 3000 mm Weight 6tons Transport Package Standard Wooden Case Specification Drilling rig Trademark Yugong Origin China HS Code 8430419000 Production Capacity 6000

Product Description

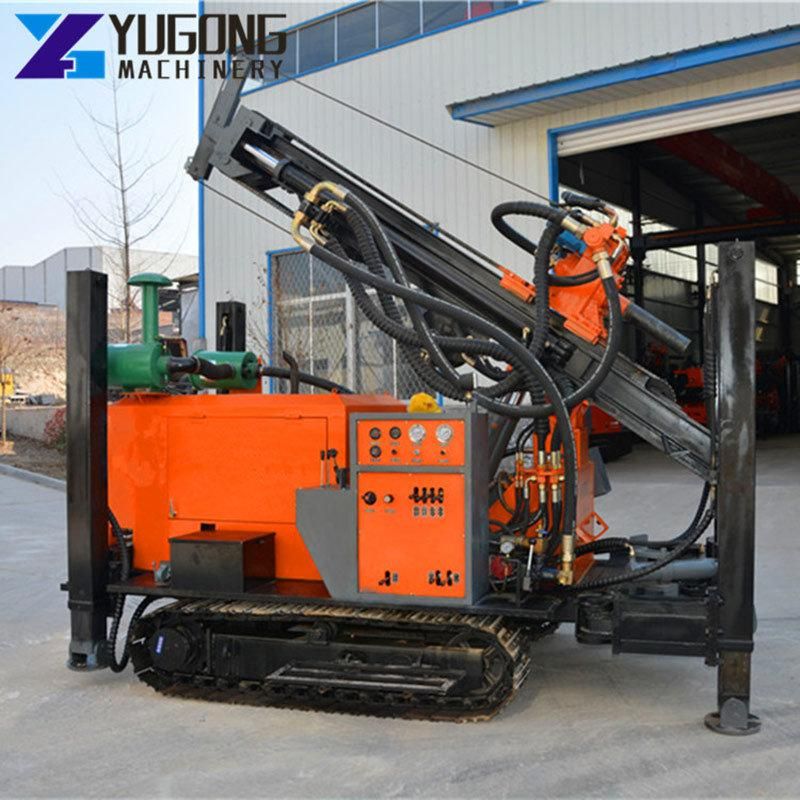

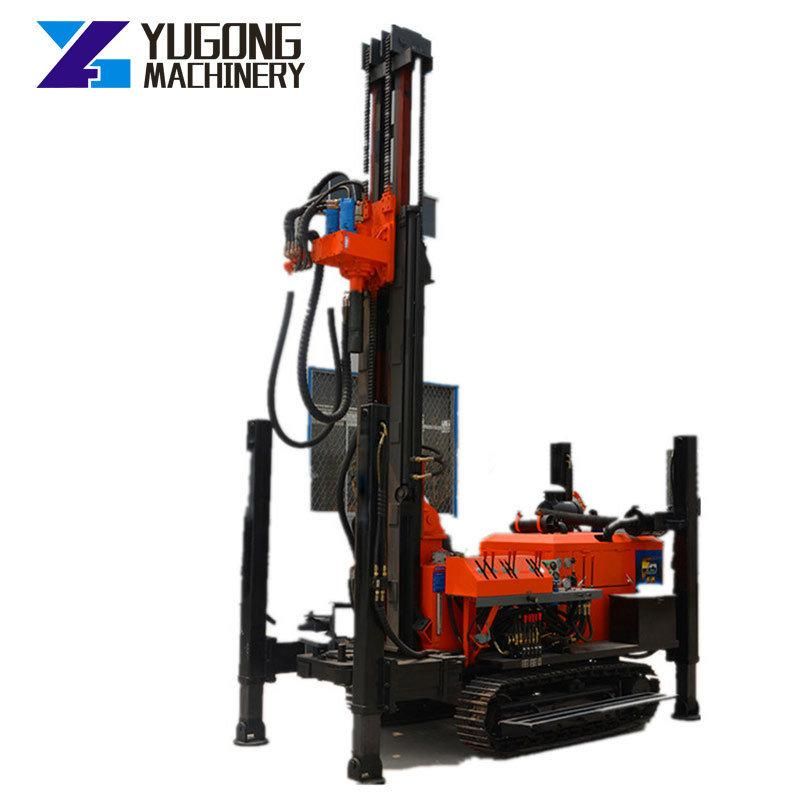

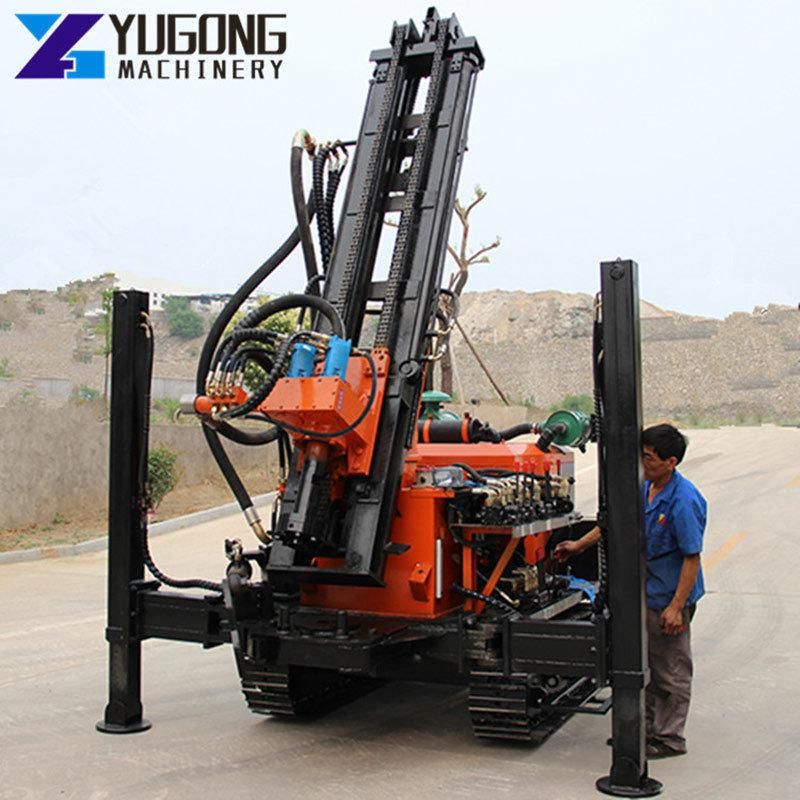

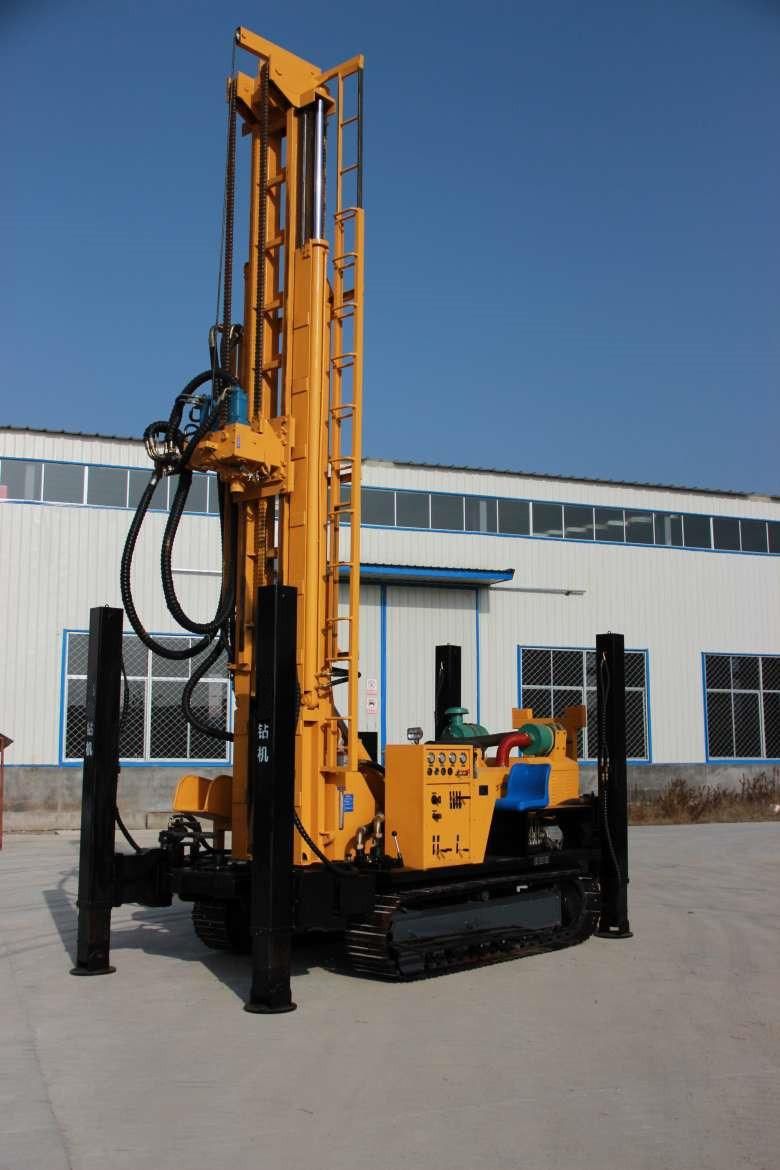

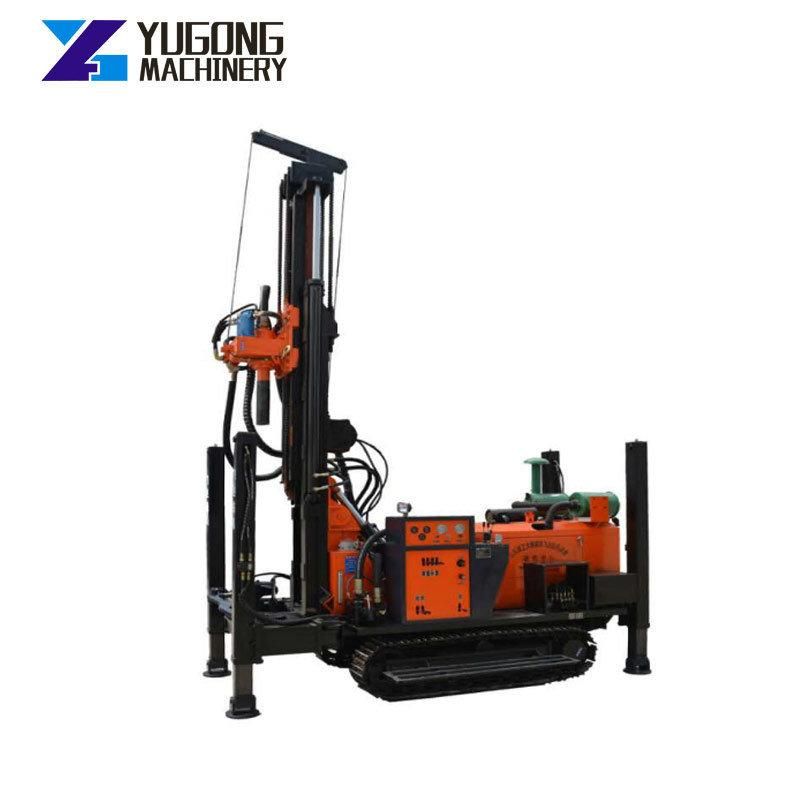

200m China Portable Professional Water Well Drilling Rig Machine for Sale
Product description:
Yugong multi-purpose deep water well drilling rig is our independent research and development products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customer's positive feedback.

Features:

1. Light weight, energy saving
2. Patented product, unique design and simple drilling structure
3. Easy to transport and can learn how to handle the machine in short time
4. Can drill through hard stratum, unless thick rock layer
5. Assure easily operation and long time service life
6. One person operation, reduce the labor intensity
7. High efficiency and work fast

Technical Parameters Of Water Well Drilling Rig:

Model	YG-130	YG-200	YG-300	YG-300A	YG-400	YG-600
Weight(Ton)	3	5.5	9	7	10	12
Drilling Diameter(mm)	100~219	140~305	140~325	140~325	140~350	140~350
Drilling Depth(mm)	130	200	300	260	400	600
Walking Speed(Km/h)	0.8	2.5	2.5	2.5	2.5	2.5
Climbing Angles	30	30	30	30	30	30
Power(Kw)	32	65	84	75.8	95	115
Pressure(MPa)	1.45~2.5	1.7~3.0	1.7~3.3	1.7~3.0	1.7~3.5	1.7~3.5
Air Consumption(m³/Min)	15~29	17~30	17~35	17~35	17~35	17~35
Drilling Pipe Diameter(mm)	76/89	76/89/102	89/102	76/89/102	76/89/102	76/89/102
Drilling Pipe Length(M)	1/1.5	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0
Rig Lifting Force(T)	5	18	28	24	24	30
Swing Speed(Rpm)	40~65	50~70	55~115	40~70	45~115	45~115
Swing Torque(N. M)	2600~4000	5000~6500	7200~9500	7000~9000	8500~10000	8500~10500
Dimension	4000*1450*2050	3800*1700*2350	5500*1950*2780	4100*1900*2600	5200*2000*2780	5400*2100*2850

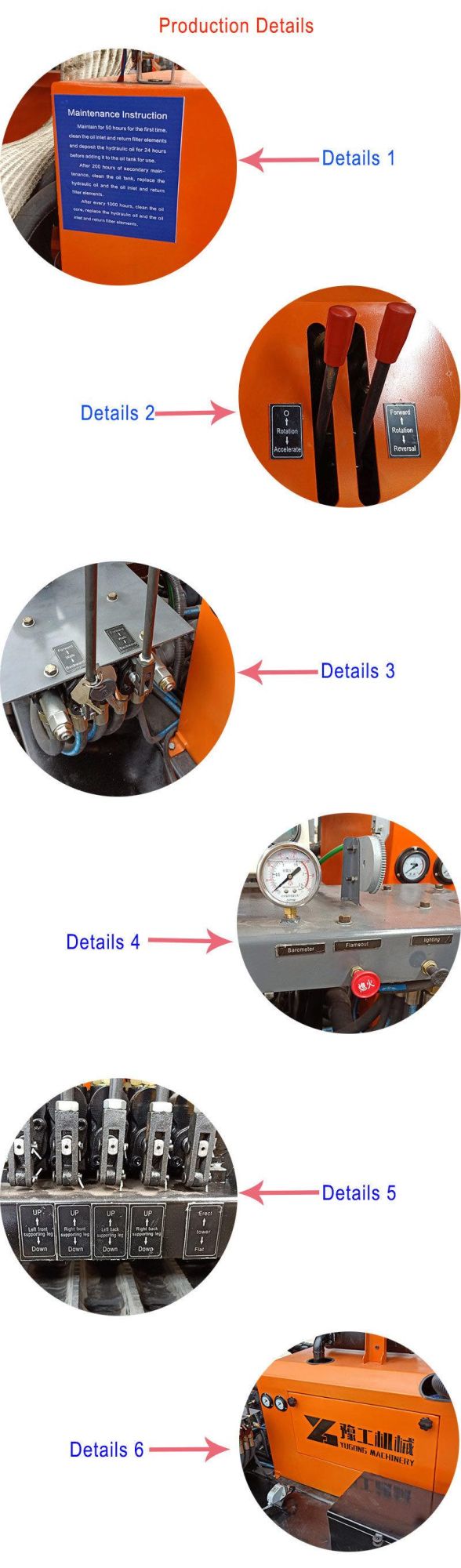

Product Details:

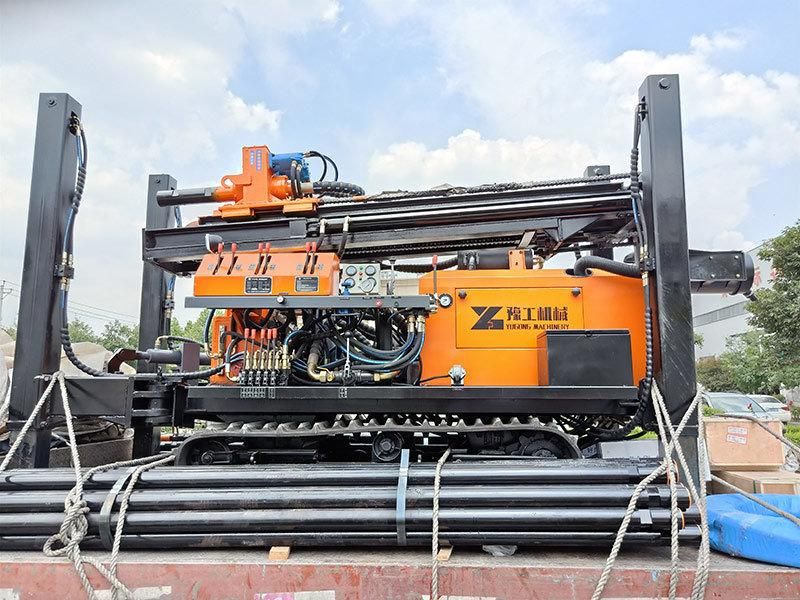

Packing&Delivery:


Office&Team:
