Easy to Operate! ! Hf80 Hand Water Well Drilling Equipment
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HF80
- Drilling Way：Rotary
- Type：Drilling Machine
- Drilling Depth：80m
- Drilling Diameter：75-300mm
- Size：Portable Type
- Use：Water Well, Bore Hole, Farm Irrigation
- Mining Object：Water Well Drilling, Bore Holes
- Usage：Water Well
- Power Type：Diesel
- Transport Package：Export Conventional Package
- Specification：1100X600X500mm
- Trademark：Hanfa
- Origin：China
- HS Code：8430490000
- Production Capacity：25 Sets,Month
Description
Basic Info.
Model NO. HF80 Drilling Way Rotary Type Drilling Machine Drilling Depth 80m Drilling Diameter 75-300mm Size Portable Type Use Water Well, Bore Hole, Farm Irrigation Mining Object Water Well Drilling, Bore Holes Usage Water Well Power Type Diesel Transport Package Export Conventional Package Specification 1100X600X500mm Trademark Hanfa Origin China HS Code 8430490000 Production Capacity 25 Sets/MonthProduct Description

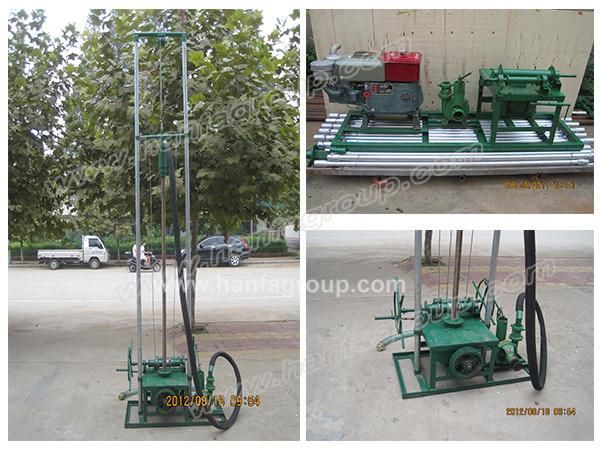

Easy to operate!! HF80 hand water well drilling equipment
HF80 Small Water Well Drilling Rig is one most portable water well drilling rig. 1. Practical and durable in use. 2. Easy to operate, only 1-2 people can handle it well. 3. Portable and economical, can be owned by common family. 4. With 12HP diesel engine.
I. Application
HF80 water well drilling rig mainly used for farm irigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.
It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.
II. Features and Advantages
1. Light weight. The main engine is only weighted 0.135tons.
2. Easy to operate. Can be handled without experience.
3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill deep. Equipped with reels, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area.
7. Economical. It can be called the most economical water well drilling machine.
| HF80 water well drilling rig | |
| Drilling depth | 60-80m |
| Drilling diameter | 70-300mm |
| Power Engine | 12HP |
| Dimension(LXWXH) | 1100X600X500mm |
| Weight | 0.135 t |
