• Model NO.：QD-100
• Drilling Way：Rotary
• Material：Cast Iron
• Air Pressure：0.6-0.8MPa
• Drilling Diameter：65-130mm
• Drilling Depth： ≥30m
• Transport Package：Wooden Box
• Specification：4 cubic meters
• Trademark：ZHONGTUO
• Origin：China
• HS Code：8430390000
• Production Capacity：50piecces,Month

Basic Info.

Model NO. QD-100 Drilling Way Rotary Material Cast Iron Air Pressure 0.6-0.8MPa Drilling Diameter 65-130mm Drilling Depth  ≥30m Transport Package Wooden Box Specification 4 cubic meters Trademark ZHONGTUO Origin China HS Code 8430390000 Production Capacity 50piecces/Month

Product Description

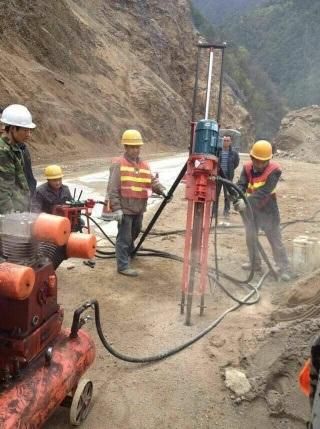

Description of Down the hole drilling|rotary|diamond hammer

With down the hole hammer drilling, the drill principle consists of a combination of percussion and rotation. Unlike the top hammer, here the hammer drill is located directly in the borehole. These devices, known as 'down-the-hole hammers', are connected to the rotating drill pipes.

The down the hole hammer drilling rig is driven directly by the flushing medium. Compressed air is usually used for this purpose. Special procedures, though, can also involve flushing with water. The flushing medium is pressed through the drill pipes, down-the-hole hammer and drill bit and is forced back out at the mouth of the borehole, along with the loosened drill cuttings, through the annular gap between the drill pipes and the borehole wall.

Down-the-hole hammers are mainly used for drilling boreholes into hard rock in bedrock. These boreholes serve as anchor holes, blast holes, injection holes and pilot holes.

In the field of anchoring technology, this process can be used to produce both short- and long-term anchors. Typical applications include:Anchored retaining walls, Slope stabilisation,Building pit supports,Braces
Advantages of Down the hole drilling rig:




Parameters of Down the hole drilling rig:

model	Q-100
Voltage	380V
Air pressure	0.6-0.8mpa
Drilling diameter	65-130mm
Motor Power	4.0kw
Drilling direction	0°-90°
Hose Diameter	38mm
Drilling depth	≥30m
Cylinder advance stroke	1000

FAQ:
Q:This is the first time I use this kind of machine, is it easy to operate?
A:There are English manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Q:If machine have any problem after I receive it, how can I do?
A:Free parts send to you in machine warranty period if machine have any problem.

Q:What is MOQ?
A:The minimum order is 1 set machine, if you order more one time, the price will be better.

10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEER
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO,SGS certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it,
We can give you a best solution within 24 hours
10 fast delivery, save your time.

Welcome to your inquiry,we can customize for your every inquiry,thanks
