• Model NO.：DR-90
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Crawler
• Throttle：Hydraulic
• Application：Construction, Construction
• Depth：15m
• Usage：Agriculture Construction
• Braking Form：Vacuum Booster
• Span：7.6m
• Max Speed(Km/H)：80
• Loading Port：Qingdao
• Diameter：500-1500mm
• Drilling Rod：Kelly Bar
• Engine：Cummins
• Power：110kw
• MOQ：1 Set
• Keyword：15m Pile Driver
• Product Name：Dr-90 Rotary Drilling Rig
• Transport Package：According to The Customer′s Requirements
• Specification：9800mm*2200mm*2950mm
• Trademark：DingLi heavy industry
• Origin：Shandong, China (Mainland)
• HS Code：8430509000
• Production Capacity：10 Set,Month

Basic Info.

Model NO. DR-90 Bit Type Drag Bit Drilling Way Rotary Type Crawler Throttle Hydraulic Application Construction, Construction Depth 15m Usage Agriculture Construction Braking Form Vacuum Booster Span 7.6m Max Speed(Km/H) 80 Loading Port Qingdao Diameter 500-1500mm Drilling Rod Kelly Bar Engine Cummins Power 110kw MOQ 1 Set Keyword 15m Pile Driver Product Name Dr-90 Rotary Drilling Rig Transport Package According to The Customer′s Requirements Specification 9800mm*2200mm*2950mm Trademark DingLi heavy industry Origin Shandong, China (Mainland) HS Code 8430509000 Production Capacity 10 Set/Month

Product Description

                                                   DR-90 Kelly Bar Rotary Drilling Rig

Product Details
The overall structure of the drilling rig is compact and compact, and it is mostly used for small-scale engineering construction. The maximum drilling depth of the drilling rig is 15m, and the drilling diameter is 450-1500mm. It can be used with various types of drill bits for construction. It is suitable for drilling and excavating sand and clay, and drilling through the surface of concrete.


Parameter


model	DR-90
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1600
drilling depth (m)	5-15m
Diamension (mm)	9600X2300X3200mm
Total weight (t)	17T
Power head max output torque (KN.m)	90KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	120KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	2 km/h
Diesel engine power (KW)	110KW ,cummins ,water cooling ,turbo charger

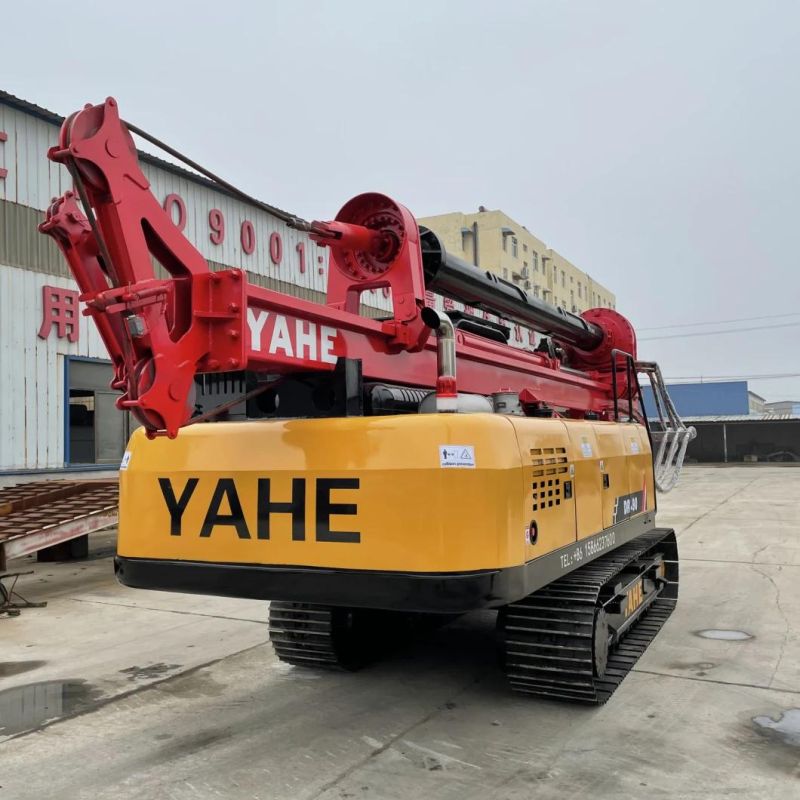

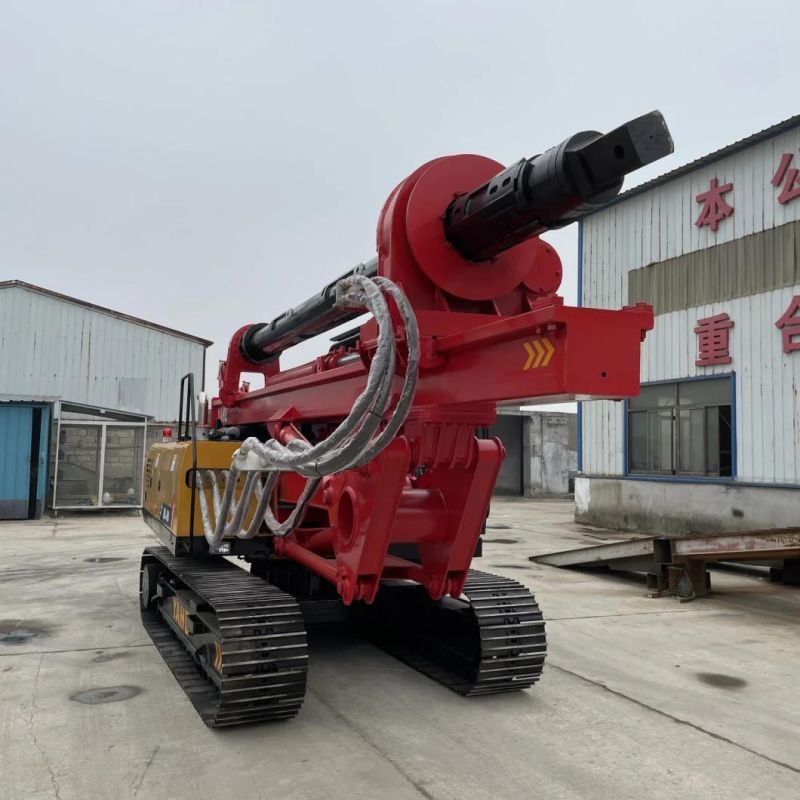

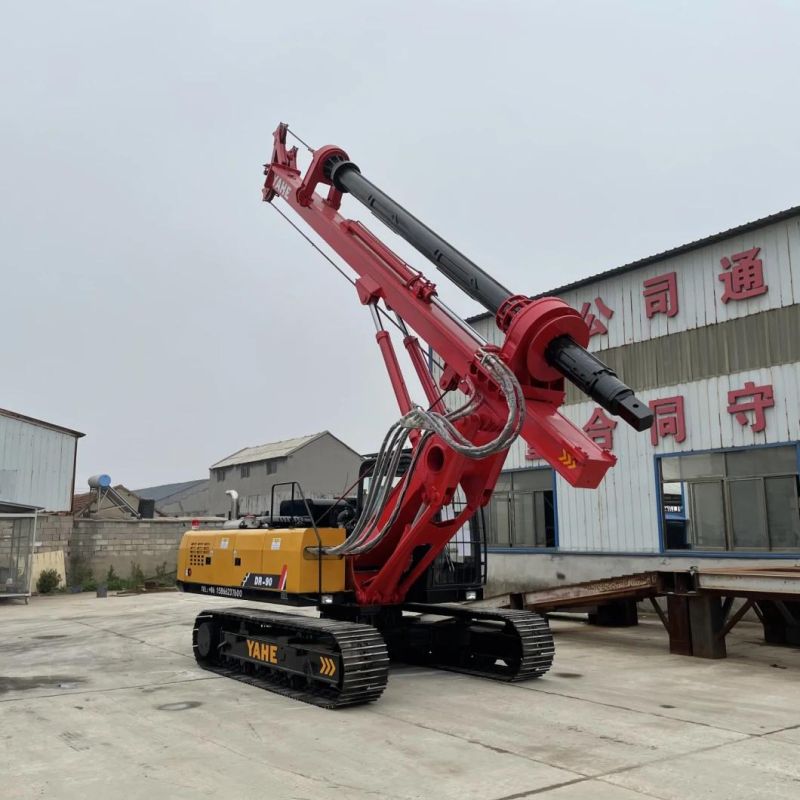

 Machine Photos



Certification

We have many certificates, support verification, we export more than 30 countries!

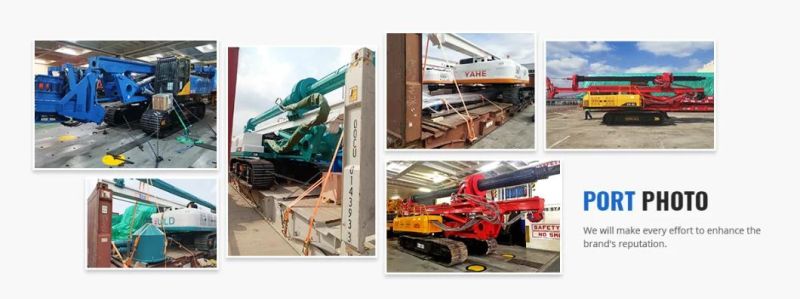

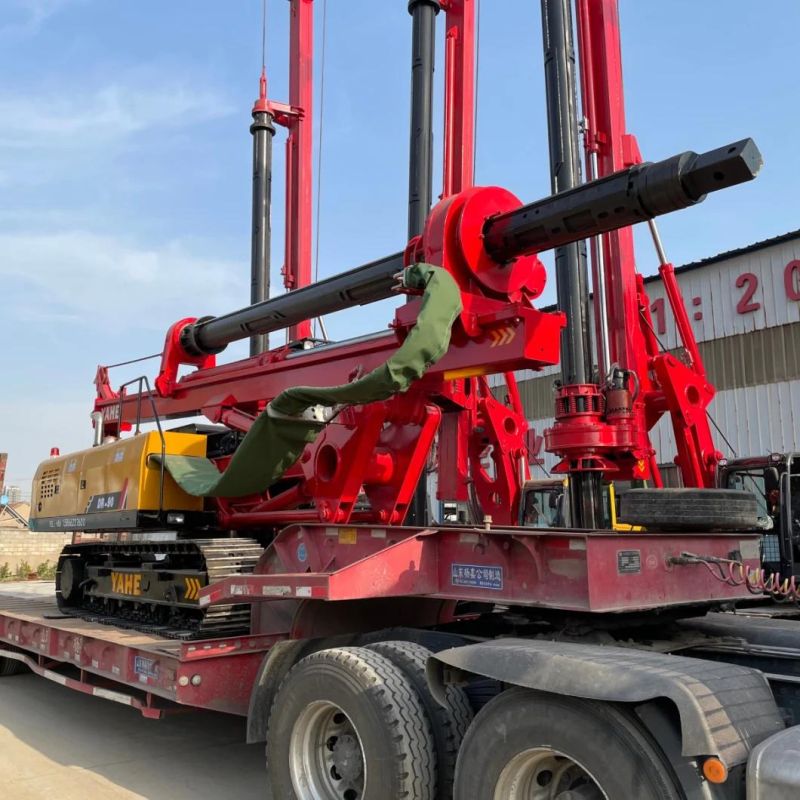

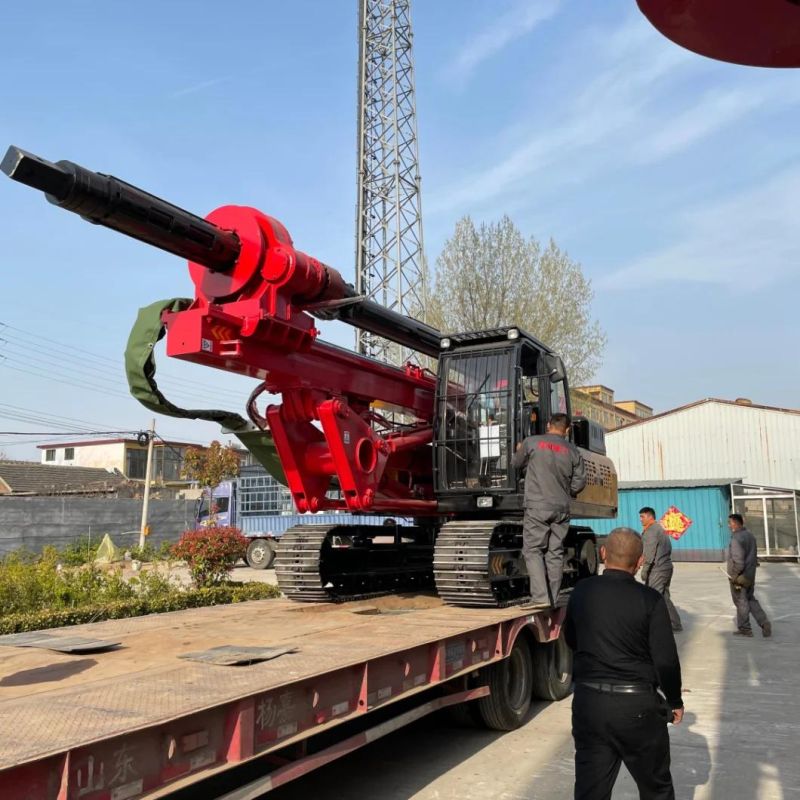

Transport
At present, there are three ways to transport rotary drilling rig: special equipment frame box, RO ro ship and bulk carrier. Generally speaking, they are the first two. Although the price is a little expensive, compared with bulk carriers, they are very safe. We will arrange port personnel to take reinforcement photos in each link. If customers need, we can send them by email.


Exhibition
We have been committed to participate in a variety of offline exhibitions, not only for the sale of our rig, but also for continuous learning. We are committed to the world, launched "rotary drilling rig, made in China!"
Customer photo
Welcome customers from all over the world to visit our factory. We will provide accommodation for customers free of charge and give them operation demonstration on site. Customer satisfaction is our greatest hope.

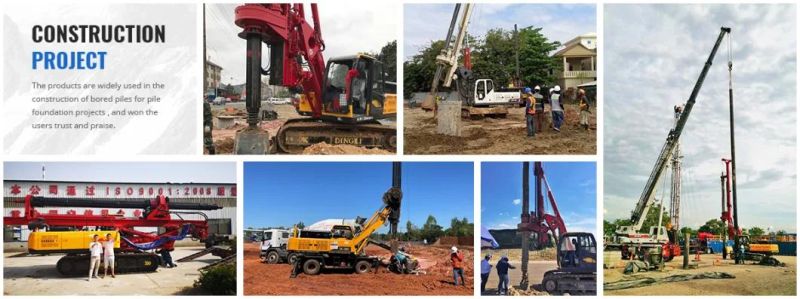

Working photo
Thank you for your feedback. We currently export to 40 countries around the world. Our biggest advantage is that we are a rotary drilling rig manufacturer, which can reduce the price difference made by middlemen and import independently!

 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
