2022 Hot Sale Dfy-100 Used Blast Hole Drill Rig Machine

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：80-105
  • Drill Hole Depth：20
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：DFY-100
  • Type：Rotary Drilling Rig
  • Usage：Ore
  • Power Type：Diesel
  • Transport Package：Container
  • Specification：4100*2030*2020mm
  • Trademark：DEFY
  • Origin：China
  • HS Code：8430490000
  • Production Capacity：200set,Month

Description

Basic Info.

Model NO. DFY-100 Type Rotary Drilling Rig Usage Ore Power Type Diesel Transport Package Container Specification 4100*2030*2020mm Trademark DEFY Origin China HS Code 8430490000 Production Capacity 200set/Month

Product Description

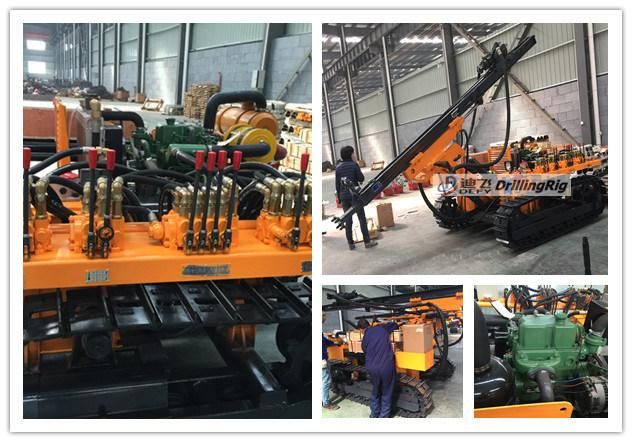

DFY-100 used blast hole drill rig machine

Introduction and features:
1. Powerful and Reliable Engine of portable crawler drilling rig DFY-100
1). Adopt famous 2-cylinder diesel engine as driving force which has advantages of large power, powerful grade-ability, small vibration and reliable operation.
2). Adopt patent diesel engine air inlet regulating device (Patent No. : 200820087606.3) and desert air filter two-stage filter. That strengthens the crawler rock drill's adaptability to severe environment and lengthened the diesel engine's service life.

2. Adjustable Boom of DFY-100 blast hole drill rig
Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder. That enlarges the drilling hole's range and improve the machine's adaptability.

3. Reliable Hydraulic Pump System
1). Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance.
2). Adopt gear transmission and soft connection, possessing compact structure and stable operation.

4. Reliable Hydraulic System
1). Adopt special hydraulic components. That improves the system's stability and reliability.
2). Install oil liquid cooling device eliminatting the exothermic hydraulic oil's influence on the system
2022 Hot Sale Dfy-100 Used Blast Hole Drill Rig Machine
Specification of DFY-100 blast hole drill machine:
Rigidity rockF=6-20
Diameter of hole 80-105mm
Optium drilling depth20m
Working pressure5-7bar
Air consumption≥10m³/min
Rotation speed0-65rpm
Lift power15KN
Size of drill pipe Φ60*2000mm
gradeability30°
groundclearance                       254mm
Walking speed2.0 km/h
Sliding carrier pitch angle-118.5°  +23.5°
Sliding carrier swing angle -11.5  + 36.5°
Sliding carrier supply 900mm
Size of drill rig4100*2030*2020mm
Weight of drill rig3300kg
remarkPneumatic and hydraulic power
