• Model NO.：DR-90
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Crawler
• Product Name：Pile Driver,Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• MOQ：1 Set
• Keyword：Rotary Drilling Rig
• Chassis Length：3900mm
• Track Width：600mm
• Overall Height：2.9m
• Drilling Rod：Kelly Bar
• Drilling Tools：Two Drill Bit for Free
• Color：Customized
• Weight：23t
• Drill Bit：Auger Drill Bit,Bucket Drill Bit and So on
• Engine Power：110kw
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：11500mm*2600mm*3400mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-90 Bit Type Drag Bit Drilling Way Rotary Type Crawler Product Name Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel MOQ 1 Set Keyword Rotary Drilling Rig Chassis Length 3900mm Track Width 600mm Overall Height 2.9m Drilling Rod Kelly Bar Drilling Tools Two Drill Bit for Free Color Customized Weight 23t Drill Bit Auger Drill Bit,Bucket Drill Bit and So on Engine Power 110kw Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2600mm*3400mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details
Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling even rotary drilling depth is 5~50m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1800mm.


Features
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.

3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.

4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.



Parameter

	DR-90
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1600
drilling depth (m)	5-15m
Diamension (mm)	9600X2300X3200mm
Total weight (t)	17T
Power head max output torque (KN.m)	30KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	120KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	2 km/h
Diesel engine power (KW)	110KW ,cummins ,water cooling ,turbo charger

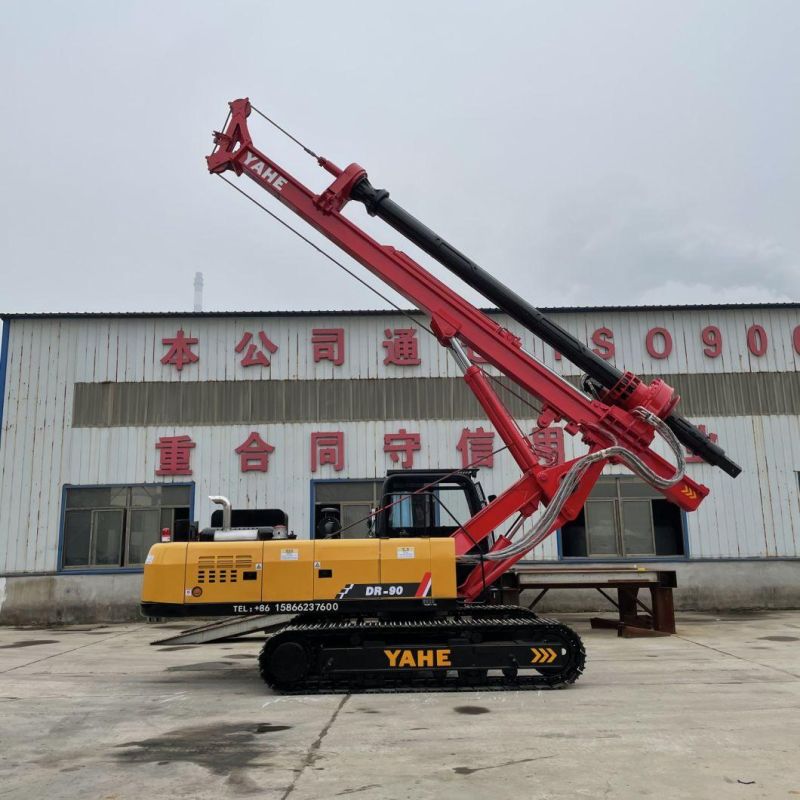

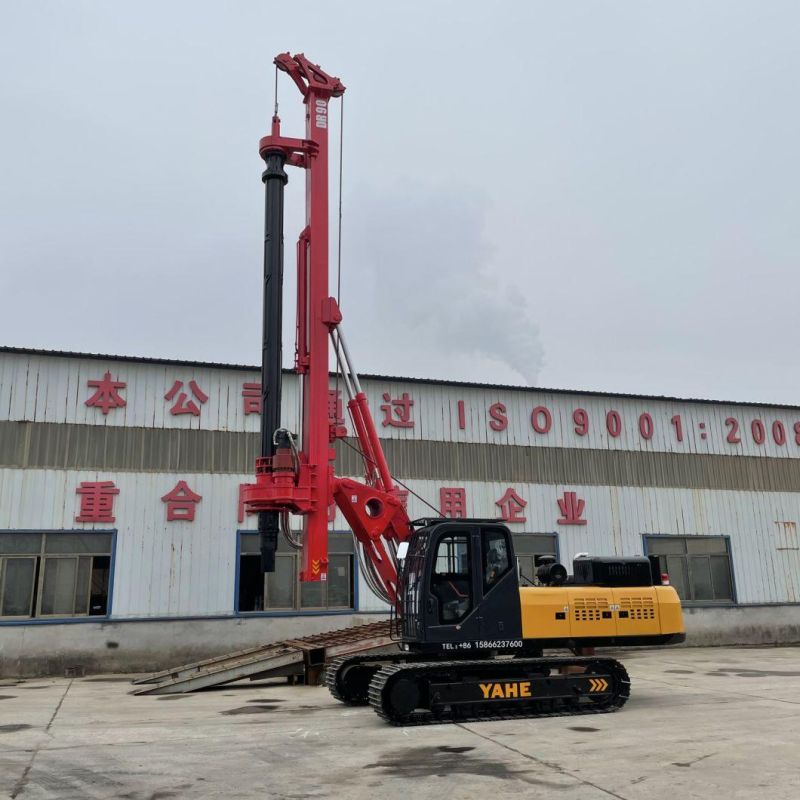

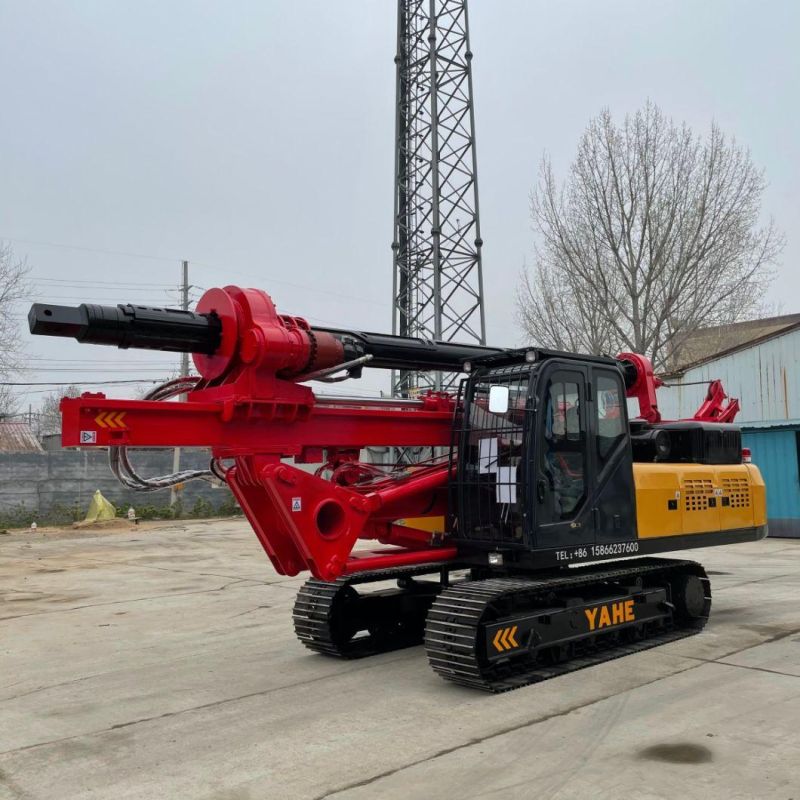

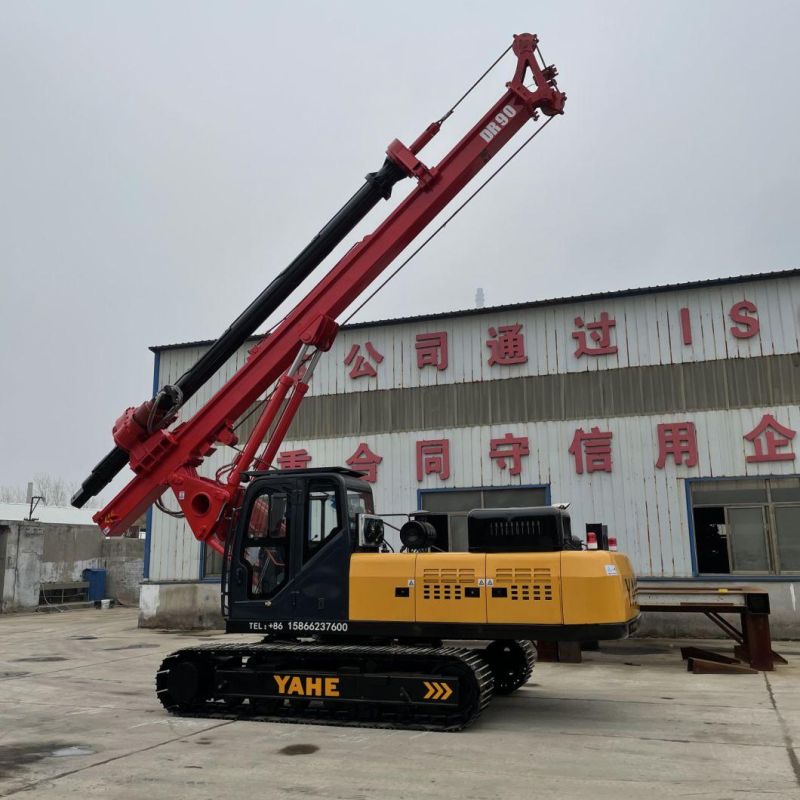

Machine photo




Certification

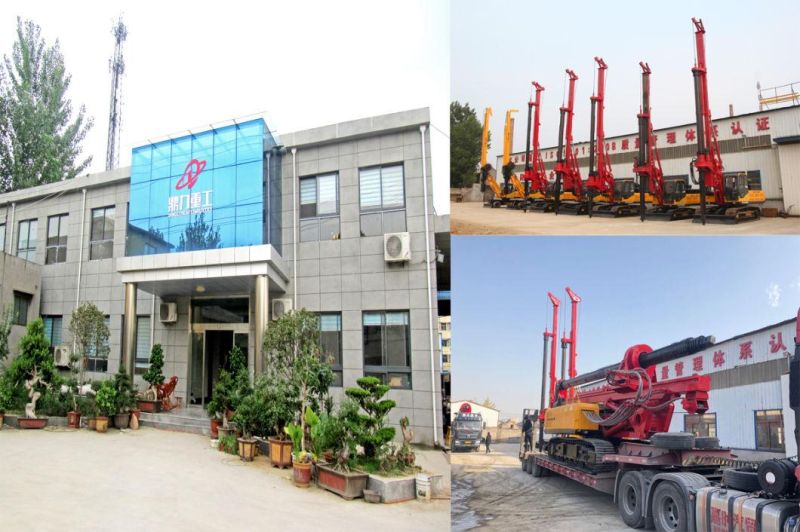

Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.


Exhibition

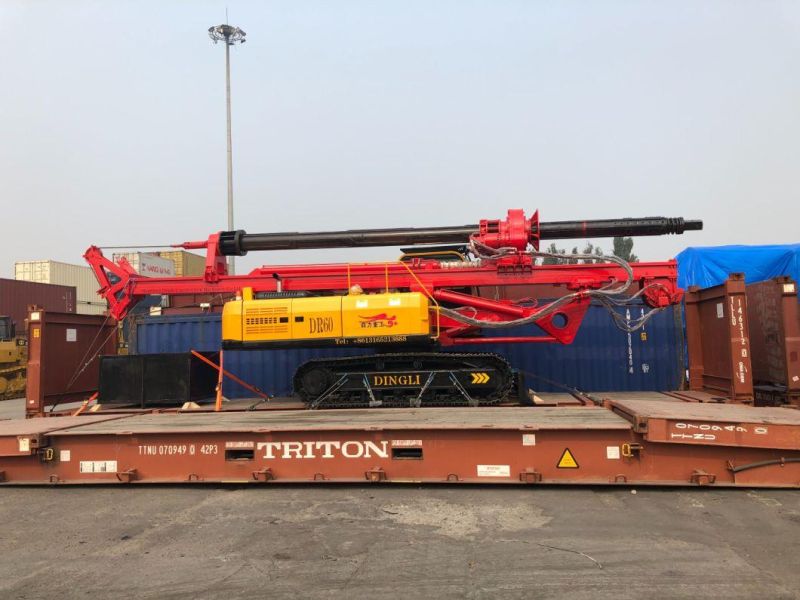

Transport

 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
