• Drill Hole Depth：150-200m
• Bit Type：Diamond Bit
• Drilling Way：Impactor
• Product Name：Water Drilling Rigs
• Model：Yg Dilling Rig Machine
• Drill Depth：100-600m
• Hole Diameter：100-350 mm
• Drill Pipe Diameter：60,76,89,102mm
• Function：High Speed Water Well Drilling Machine
• Size：3.8*1.95*2.7 M
• Vertical Stroke：450mm
• Keywords：Pneumatic Water Drilling Rig
• Applications：Water Borehole Drilling Rig Machine
• Drilling Efficiency：40m Per Hour
• Transport Package：Container
• Specification：Drilling rig
• Trademark：Yugong
• Origin：China
• HS Code：8430419000
• Production Capacity：1000 Sets Per Month

Model

YG-130

YG-200

YG-300

YG-400

Weight(Ton)

3

5.5

9

10

Drilling Diameter(mm)

100~219

140~305

140~325

140~350

Drilling Depth(mm)

130

200

300

400

Walking Speed(Km/h)

0.8

2.5

2.5

2.5

Climbing Angles

30

30

30

30

Power(Kw)

32

65

84

95

Pressure(Mpa)

1.45~2.5

1.7~3.0

1.7~3.3

1.7~3.5

Air Consumption(m³/Min)

15~29

17~30

17~35

17~35

Drilling Pipe Length(M)

1/1.5

1.5/2.0/3.0

1.5/2.0/3.0

1.5/2.0/3.0

Rig Lifting Force(T)

5

18

28

24

Dimension

4000*1450

*2050

3800*1700

*2350

5500*1950

*2780

5200*2000

*2780

Packing&shipment of drilling rigs machine:

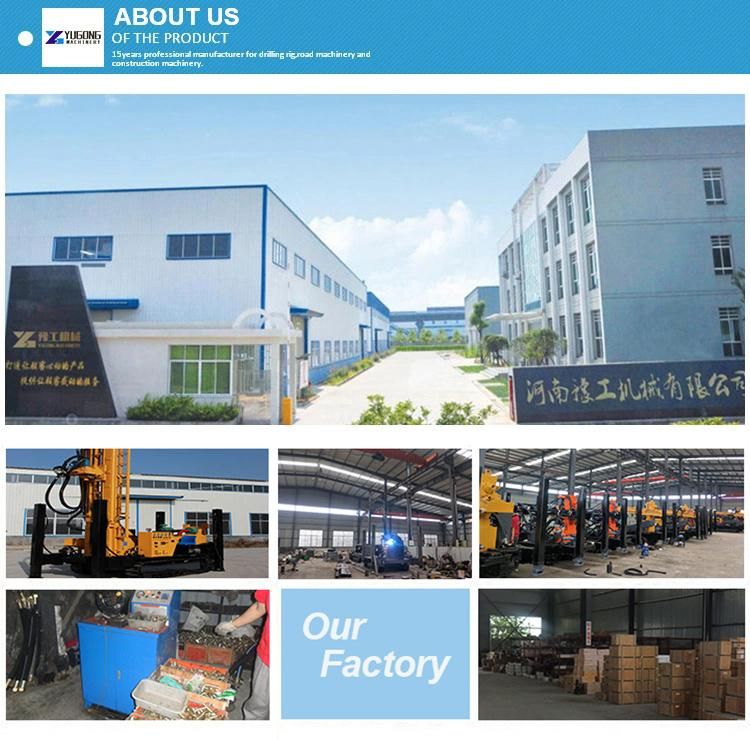

Company&Team:
