• Model NO.：HF510T
• Drilling Way：Impactor
• Type：Water Drilling
• for Rock(F)：6-20
• Air Pressure(MPa)：1.05-3.0
• Mud Pump：Bw450,5
• Once Promotion (mm)：2000
• Skid Max Angle：90
• Maximumheight Ground(mm)：320
• Rotation Speed(R/Min)：0-100
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Wooden Box
• Specification：5425*2250*2470mm
• Trademark：HF
• Origin：Zhengzhou City
• Production Capacity：50,Months

Basic Info.

Model NO. HF510T Drilling Way Impactor Type Water Drilling for Rock(F) 6-20 Air Pressure(MPa) 1.05-3.0 Mud Pump Bw450/5 Once Promotion (mm) 2000 Skid Max Angle 90 Maximumheight Ground(mm) 320 Rotation Speed(R/Min) 0-100 Usage Water Well Power Type Diesel Transport Package Wooden Box Specification 5425*2250*2470mm Trademark HF Origin Zhengzhou City Production Capacity 50/Months

Product Description

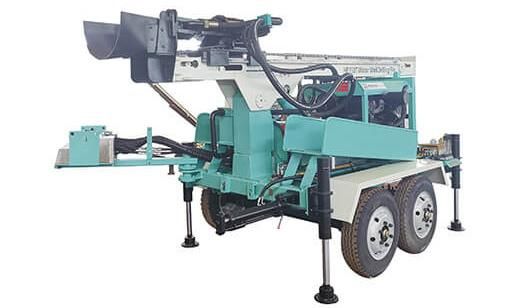

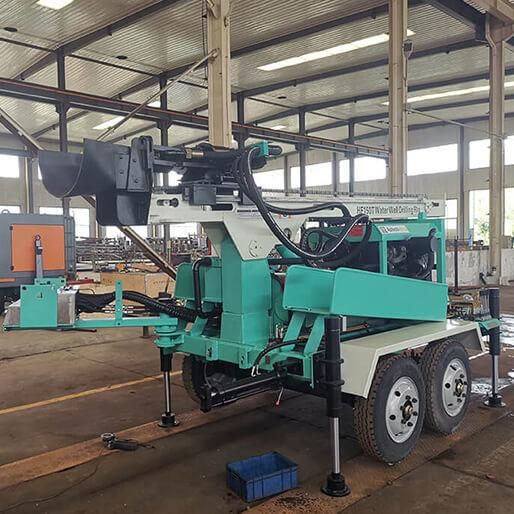

High Quality! Hf510t Hydraulic Professional Water Well Drill Equipment

1.HF510T drilling for groundwater can use air, foam or mud rotary for water well drilling according to different textures.

2.It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes.

3.In particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement,loose gravel drilling rock formation connected with a variety of engineering.

Technical Data


Bore diameter(mm)	115-320
Bore depth(m)	270
Walk speed(km/h)	45
For rock(F)	6--20
Air pressure(Mpa)	1.05-3.0
Air consumption(m³/min)	16-30
Once promotion(mm)	2000
Skid max angle(°)	90
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-100
Rotation torque(NM)	4000
Lifting power(T)	6.5T
Dimension(L*W*H)(mm)	5425*2250*2470
Host power(Kw)	56/87(Optional)
weight(Kg)	6000
Mud pump	BW450/5
Pump speed(L/min)	172--450
Pressure (Mpa)	2.0--5.0

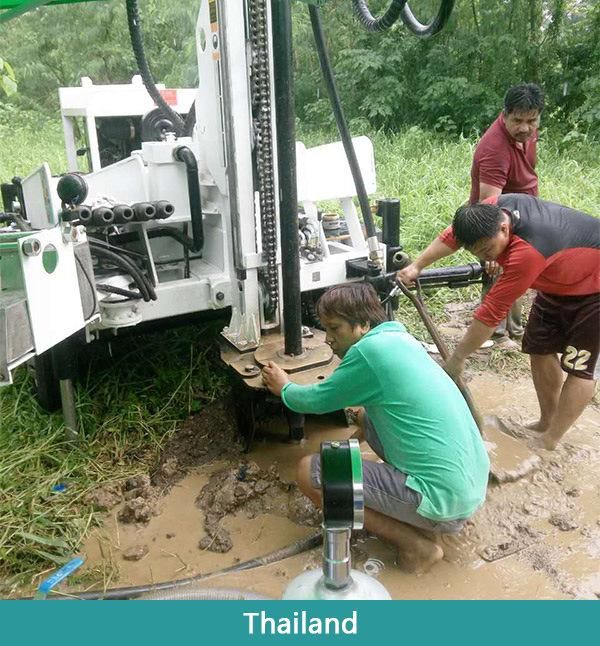

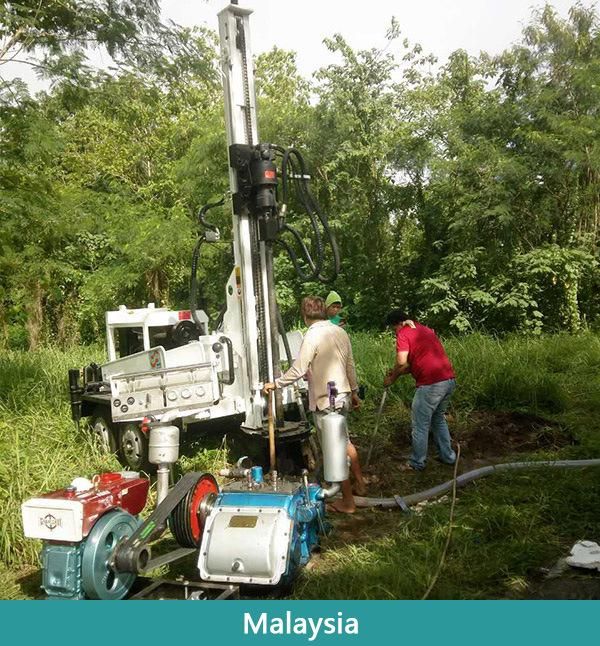

At Working Site





Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.



1. More than 30 years of experience

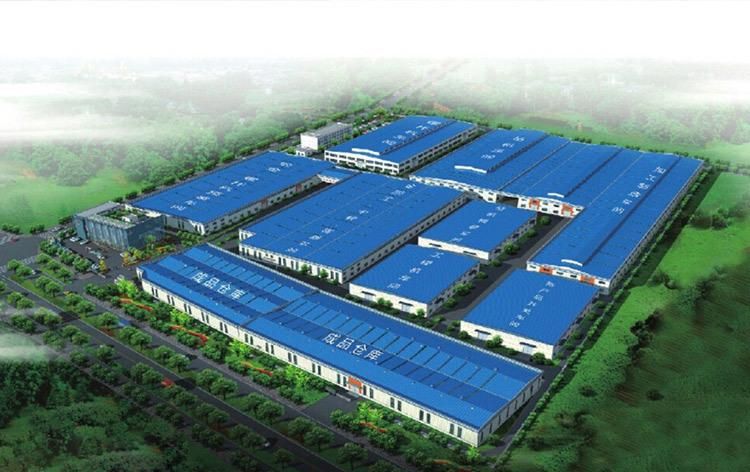

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
