• Model NO.：ZSL-70
• Type：Crawler
• Model：Zsl-70
• Air Consumption (M3/Min)：9-12
• Drill Bit Diameter(mm)：80-180
• Impacter：CIR110,CIR150
• Drilling Depth(M)：20-60
• Drilling Angle(°)：0-360
• Power Head Output Speed(Rpm)：0-50(Adjustable)
• Host(Kg)：770
• Grade Ability(°)：≤25
• Ground Pressure：0.04
• Transport Package：as Your Requirement
• Specification：CE, SGS
• Trademark：China Coal
• Origin：China
• HS Code：84304122
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. ZSL-70 Type Crawler Model Zsl-70 Air Consumption (M3/Min) 9-12 Drill Bit Diameter(mm) 80-180 Impacter CIR110,CIR150 Drilling Depth(M) 20-60 Drilling Angle(°) 0-360 Power Head Output Speed(Rpm) 0-50(Adjustable) Host(Kg) 770 Grade Ability(°) ≤25 Ground Pressure 0.04 Transport Package as Your Requirement Specification CE, SGS Trademark China Coal Origin China HS Code 84304122 Production Capacity 1000 Sets Per Month

Product Description

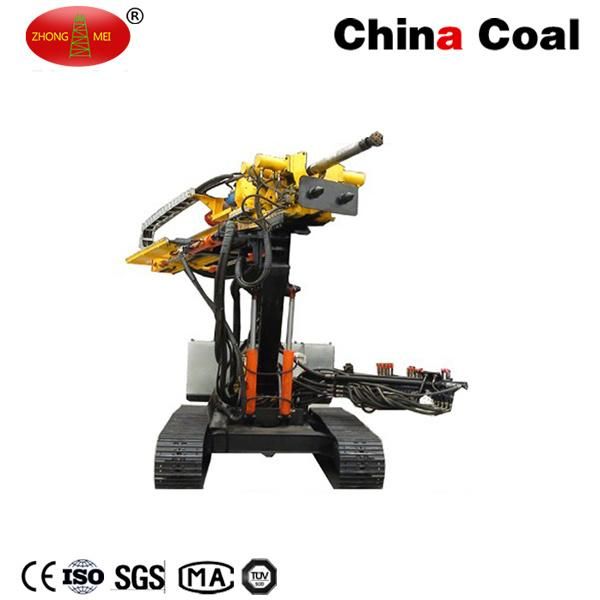

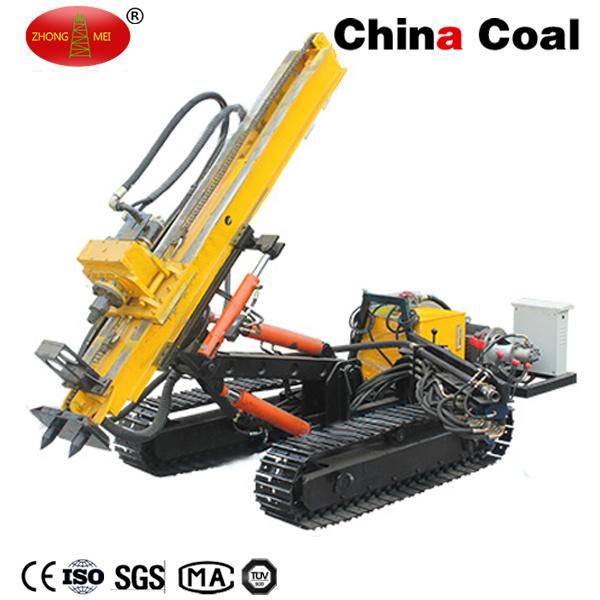

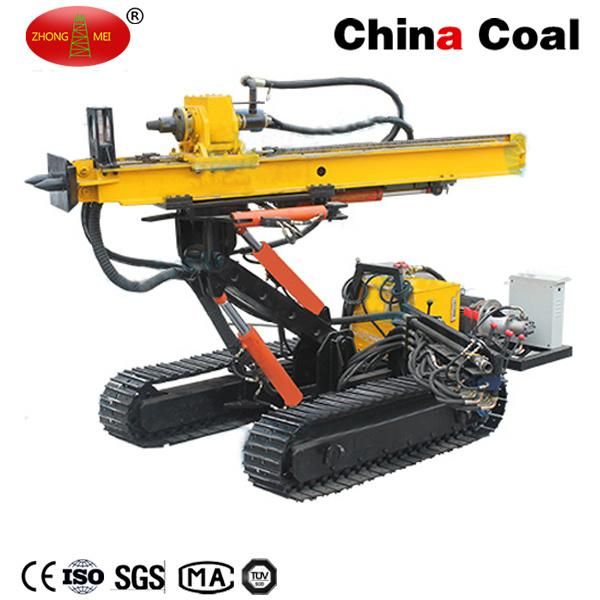

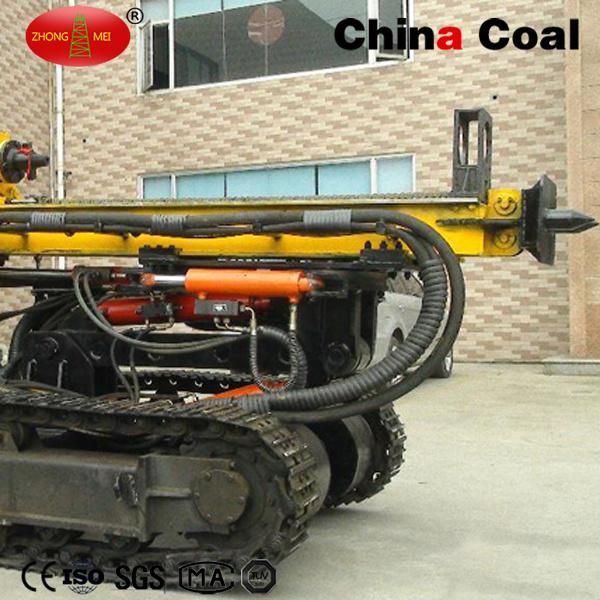

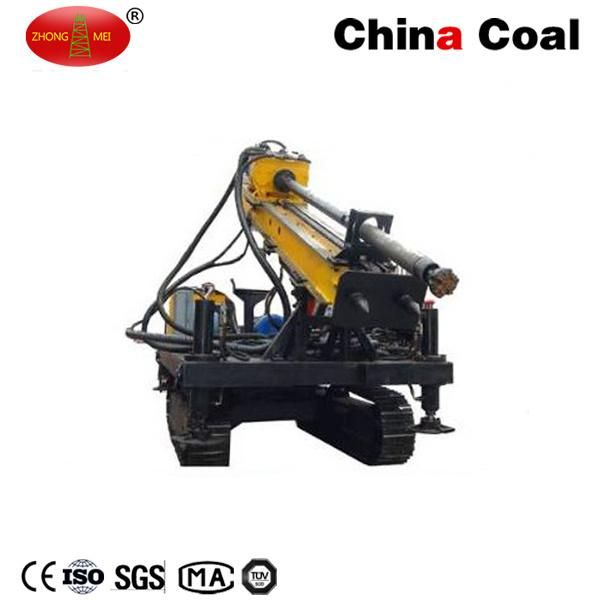

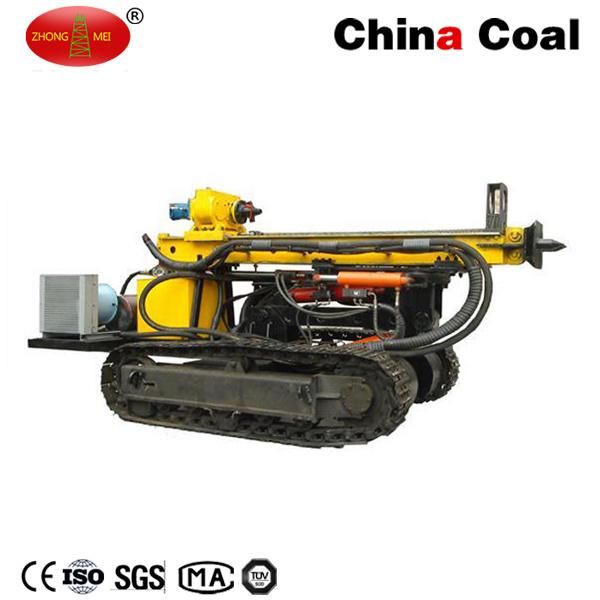

Description of Zsl-70 Full Hydraulic Engineering Crawler Mounted Horizontal Directional Drilling Rig

Zsl-70 Full Hydraulic Engineering Crawler Mounted Horizontal Directional Drilling Rig mainly used for mountain slope treatment, anchor cable reinforcement of power station, highway and railway, tunnel pipe shed advance support, foundation pit cable-stayed pile anchor, anti floating anchor, ground source heat pump wells, subgrade strengthening, hydropower engineering dam foundation and dam body anti-seepage treatment, drainage hole, mines and quarries blasting hole micro pile hole, etc.,
Especially suitable for deep hole drilling with casing of crushed strong-weathered rock cover strata, particularly reflect its efficient, quality, can rapidly drilling complex strata, Zsl-70 Full Hydraulic Engineering Crawler Mounted Horizontal Directional Drilling Rig has broad application prospect in all kinds of geotechnical anchor engineering.

2. Main Features of Zsl-70 Full Hydraulic Engineering Crawler Mounted Horizontal Directional Drilling Rig

1. Zsl-70 Full Hydraulic Engineering Crawler Mounted Horizontal Directional Drilling Rig anchor drill is based on our years of construction experience, after contacting various types of anchor drill, we develop it.
2. Low speed high torque hydraulic motor transmit torque directly, large cylinder speed feeding, big promoting force, good base plate tank heat dissipation, reliable performance of hydraulic system. With advantages such as concise and compact structure, safe and reliable, short auxiliary time, flexible response, operate and maintain simple and convenient etc. Drilling rock in ideal drilling speed among Platts hardness coefficient f=6~15.
3. In all kinds of complex formation and different drilling methods, the excellent punching performance obtained the construction unit and peers' acceptance.

3. Parameter of Zsl-70 Full Hydraulic Engineering Crawler Mounted Horizontal Directional Drilling Rig

Model	ZSL-70
Air consumption (m3/min)	9-12
Drill bit diameter(mm)	80-180
Impacter	CIR110,CIR150
Broken way	Impact rotary
Drilling depth(m)	20-60
Drill pipe spec.(mm)	Φ60×1500, Φ76×1500/2000, φ89×1500/2000
Drilling angle(°)	0-360
Power head output speed(rpm)	0-50(adjustable)
Power head output max torque(N·m)	4000
Power head stroke(mm)	1800
Deputy rail travel(mm)	500
Power head max lifting force(KN)	45
Power head max feed force(KN)	30
Rated pressure of hydraulic system(Mpa)	16
Motor	22KW+1.5KW
Host(kg)	770
Grade ability(°)	≤25
Ground pressure	0.04
Whole weight(kg)	3800
Overall dimensions (L×W×H)(mm)	3890*1800*1700
Transport state	3890*1800*1700
Vertical drilling state	3290*4200*1700
