• Model NO.：GS700-LS
• Type：Track
• Engine Power：199kW
• Max Torque：30000 N·m
• Max Mud Pump Flow：600 L,min
• Rig Weight：15000 kg
• Transport Package：Nude Packing
• Specification：9100*2280*2585 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS700-LS Type Track Engine Power 199kW Max Torque 30000 N·m Max Mud Pump Flow 600 L/min Rig Weight 15000 kg Transport Package Nude Packing Specification 9100*2280*2585 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.The rotation is equipped with German Rexroth closed-circuit system, which is efficient, stable and reliable. German Rexroth auto-variable system is adopted for push & pull and walk and load-sensing control is also used. Rotation motor is originally imported French Poclain brand which is famous all over the world, and push &pull motor is high pressure plunger motor and which increases work efficiency more than 20%, and totally saves about 20% energy compared with traditional system.
2.Hydraulic control is adopted for rotation and push & pull, reducing the faults resulted from the aging of electrical components, realizing more stable and reliable control and quicker response.
3.It is equipped with Weichai engine specialized in engineering machinery with strong power.
4.Driving head reserves reinforced power (push & pull force). Push & pull force can be increased to 1400KN, which ensures the safety of the big diameter construction
5. Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
6.Wire-control walking system can be used to ensure the safety in the process of walk, transfer and load & unload.
7.Reversible manipulator is convenient for loading and unloading drill rod, which can greatly reduce the workers labor intensity, and improve work efficiency.
8.With φ89×4500mm or φ102×4500mm drill rod, the machine can be used in medium field area, meeting the requirement for high efficiency construction in small place.
9.Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.
10.Electric design is reasonable with low failure rate, which is easy to maintain.
11.Push & pull contains rack and pinion push-pull system, which is good for high efficiency, long lifespan, stable work, and maintenance is also convenient.
12.Steel track with rubber plate can be loaded heavily and walks on all kinds of roads as well.


[Main Technical Parameters]


Engine Power	199 kW	Max Torque	30000 N·m
Rig Weight	15000 kg	Dimension(L*W*H)	9100*2280*2585 mm
Max. Push & Pull Force	700/1400 kN	Max Rotation Speed	125 r/min
Max. Push & Pull Speed	40 m/min	Max Mud Pump Flow	600 L/min
Caterpillar Walking Speed	3-5 km/h	Max Mud Pump Rressure	10 Mpa
Enter Drill Angle	12-22°	Max Climbing Gradient	18°
Max Aperture Diameter	Φ1500 mm(Soil Depended)	Max Crossing Length	900 m(Soil Depended)

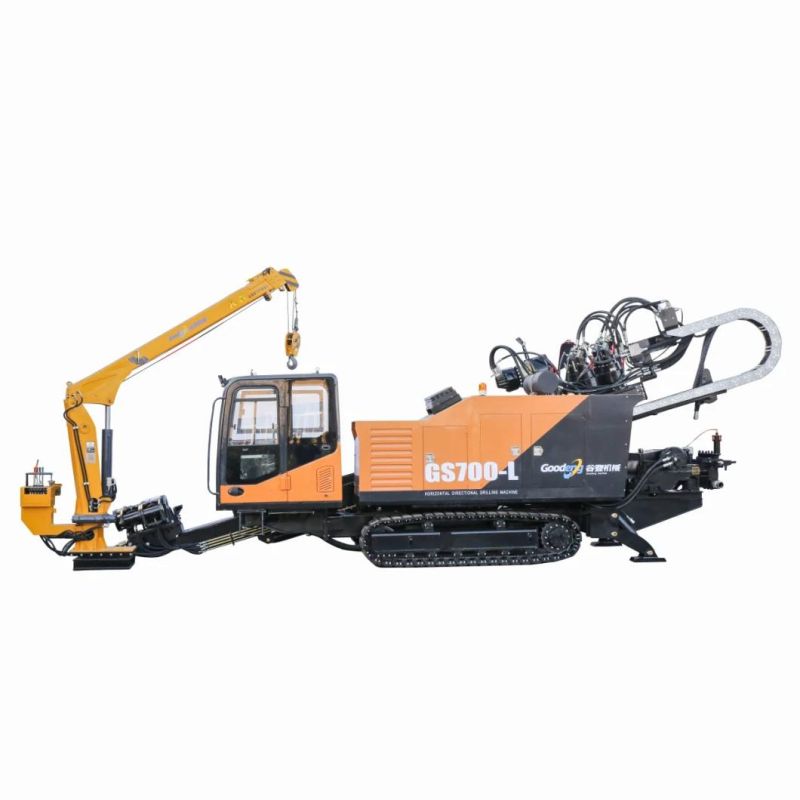

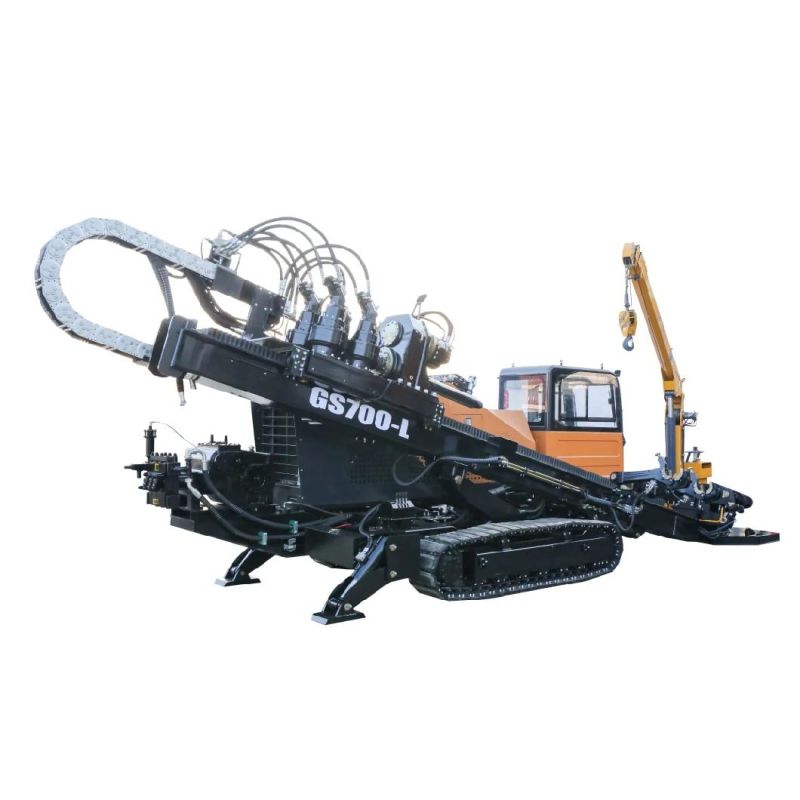

[Product Photos ]





[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is a national high-tech enterprise, which is specialized in research & development, manufacturing, sales and service for trenchless equipment. Our main products are GD/GS series of horizontal directional drilling machine and accessories. As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which has filled in multiple domestic and foreign technical blanks. Many kinds of products have obtained national and provincial progress prize in science and technology of machinery industry. In 2018, "Goodeng Machine" had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
