Hz-180y High Speed Geological Core Drilling Machine Rig Crawler Core Drilling Rig
Zhejiang Miningwell Supply Chain Management Co., Ltd.- After-sales Service：Video Technical Support, Free Spare Parts, Online
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：42-60mm
- Drill Hole Depth：180m
Base Info
- Bit Type：DTH Bit, Cone Bit, Drag Bit
- Drilling Way：Impactor
- Air Capacity：17-30 M3,Min
- Weight：6.1t
- Power Type：Diesel
- Drilling Pipe Length：3m,6m
- Type：Truck Mounted
- Swing Speed：45-70 Rpm
- Diameter of Drill Rod：89mm,102mm,114mm
- Equipped Capacity：70kw
- Core Components：Motor, Pump, Other, Gear, Gearbox
- Key Selling Points：Competitive Price
- Transport Package：Carton
- Specification：2400*600*1400mm
- Trademark：D Mining Well
- Origin：Zhejiang, China
- HS Code：8430419000
- Production Capacity：50PCS Per Month
Description
Basic Info.
Bit Type DTH Bit/ Cone Bit/ Drag Bit Drilling Way Impactor Air Capacity 17-30 M3/Min Weight 6.1t Power Type Diesel Drilling Pipe Length 3m/6m Type Truck Mounted Swing Speed 45-70 Rpm Diameter of Drill Rod 89mm/102mm/114mm Equipped Capacity 70kw Core Components Motor, Pump, Other, Gear, Gearbox Key Selling Points Competitive Price Transport Package Carton Specification 2400*600*1400mm Trademark D Mining Well Origin Zhejiang, China HS Code 8430419000 Production Capacity 50PCS Per MonthProduct Description

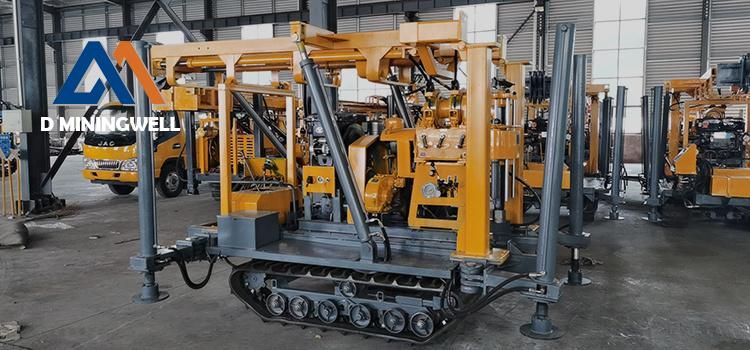

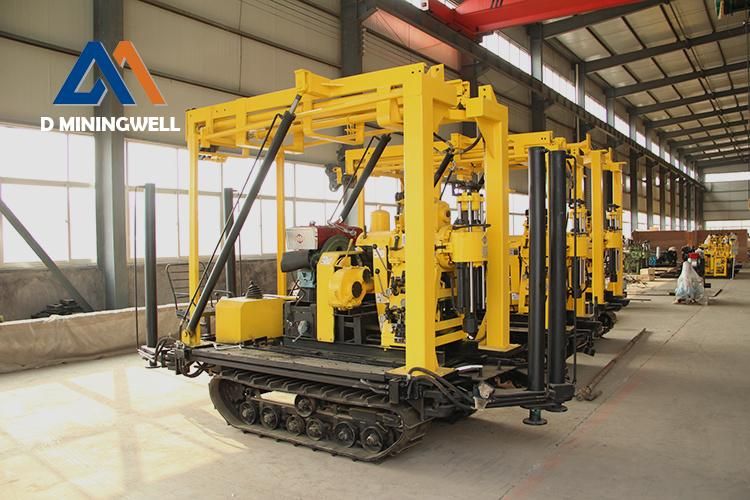

HZ180Y Crawler Hydraulic High-speed Water Well Drilling Rig
| Model | HZ-130Y/130YY | HZ-180Y/180YY | HZ-200Y/200YY |
| Drilling depth(m) | 130 | 180 | 200 |
| Open hole diameter(mm) | 220 | 220 | 325 |
| End hole diameter(mm) | 75 | 75 | 75 |
| Drill rod diameter(mm) | 42-60 | 42-60 | 42-60 |
| Drill angle(°) | 90-75 | 90-75 | 90-75 |
| Matching power(kW) | 13.2 | 13.2 | 15 |
| Weight without power(kg) | 560 | 610 | 1150 |
| Dimension(mm) | 2400*700*1400 | 2400*600*1400 | 2700*900*1600 |
| Revolvtion(rpm) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Max pull force(kg) | 1600 | 2000 | 2400 |
| Pull speed(m/min) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope diameter(mm) | 9.3 | 9.3 | 12.5 |
| Roll capacity(m) | 27 | 35 | 35 |
| Rated load(ton) | 2 | 2 | 5 |
| Height(m) | 6 | 6 | 6 |
| Dispalcement(L/min) | 95 | 95 | 145 |
| Max pressure(Mpa) | 1.2 | 1.2 | 2 |
| ToFrequency(times/min) | 93 | 93 | 93 |
| Inlet hose diameter(mm) | 51 | 51 | 51 |
| Outlet hose diameter(mm) | 32 | 32 | 32 |
