Portable Rotary Geotechnical Survey Core Drilling Equipment with Pump Integrated (XY-1B)

Changsha Miracleland Import & Export Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：XY-1B Drilling Rig with Pump Integrated
  • Drill Hole Depth：100-150m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Usage：Ore, Water Well, Coal
  • Power Type：Diesel
  • Transport Package：in Plywood Case
  • Specification：1B
  • Trademark：Csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430691900
  • Production Capacity：30 Sets,Month

Description

Basic ParametersDrilling Depth75 120 150mDrilling Hole Diameter130 75 46mmDrill Pipe Diameter42mmGross Weight Of Drilling Machine480kgDimension L*W*H1800*835*1150 mmRotary TableSpeed140  305  480  1050  r/minMaximum Torque550 N*mMaximum Cylinder Driving Force20kNMaximum Cylinder Lifting Force30kNHoistLifting Capacity Single Pipe10kNBobbin Line Speed0.4  0.87  1.48  3.23  m/sRope Diameter9.3 mmRope capacity18 mtypeStaircase Tower(or Steel Pipe Quadripod)height5.9 mPower MachinetypeDiesel enginerated power12.1 kwweight155kg

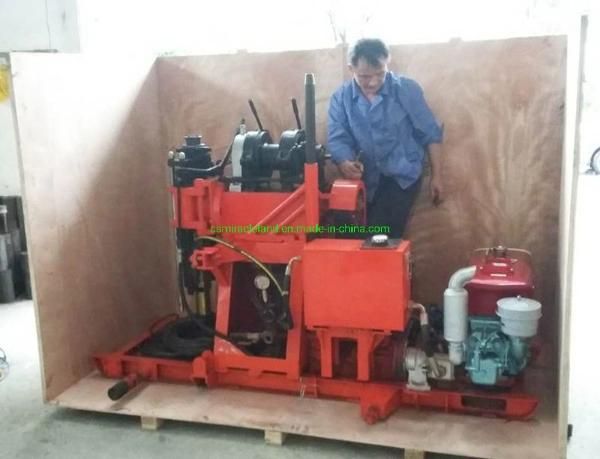

Portable Rotary Geotechnical Survey Core Drilling Equipment with Pump Integrated (XY-1B)

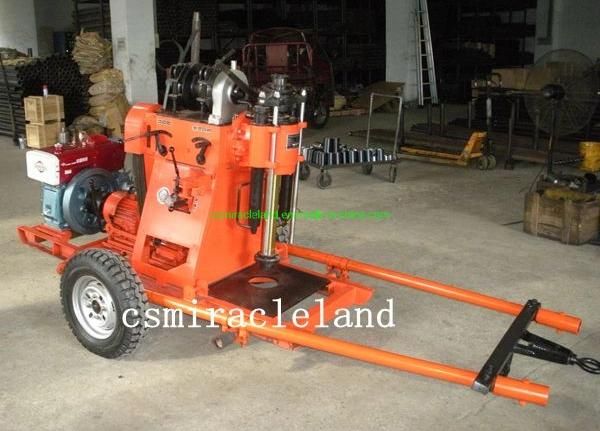

Portable Rotary Geotechnical Survey Core Drilling Equipment with Pump Integrated (XY-1B)

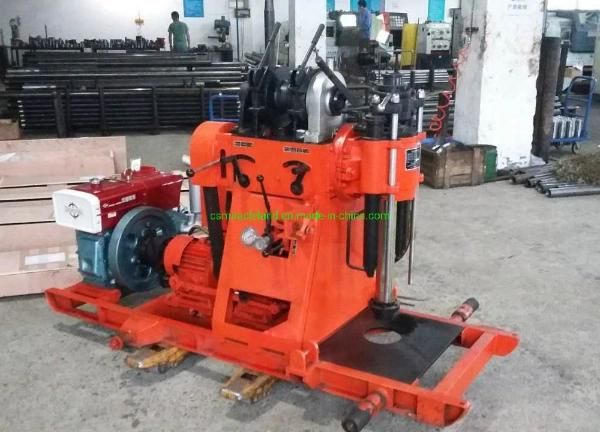

Portable Rotary Geotechnical Survey Core Drilling Equipment with Pump Integrated (XY-1B)

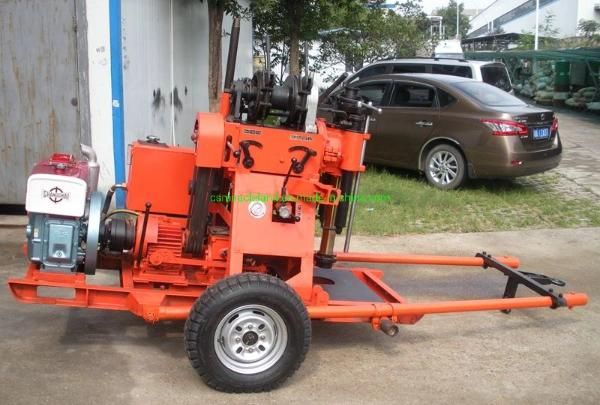

Portable Rotary Geotechnical Survey Core Drilling Equipment with Pump Integrated (XY-1B)
