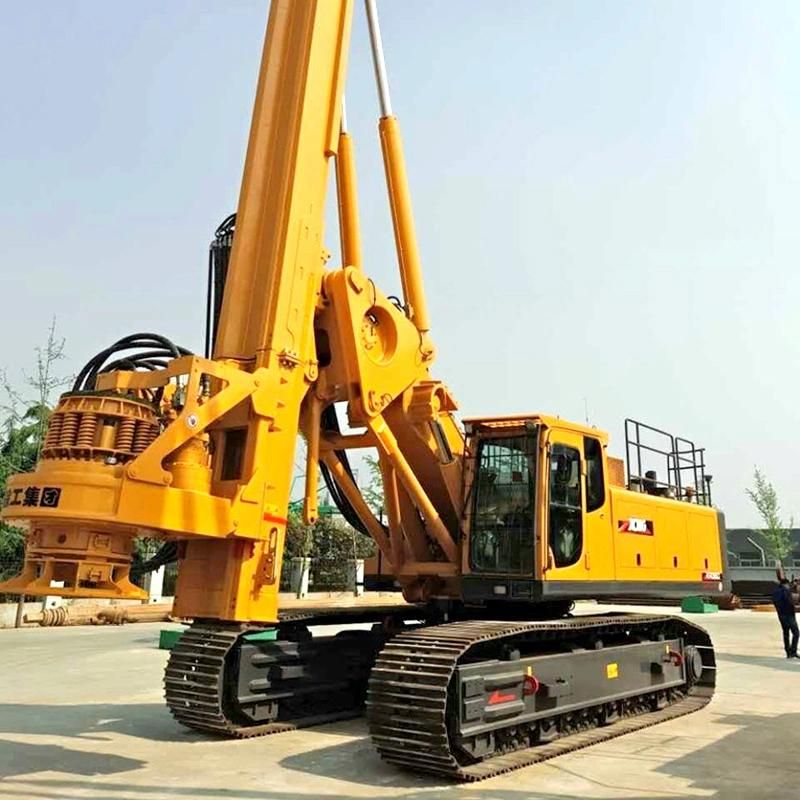

• Model NO.：XR220D
• Type：Crawler
• Uncased：2000
• Max.Drilling Depth：80 M
• Engine Model：Cummins Qsl-325
• Engine Rated Power：242,2100 Kw
• Working Pressure：35 MPa
• Max. Output Torque：220 Kn.M
• Rotary Speed：7~22 R,Min
• Max.Pull-Down Piston Push：200 Kn
• Max.Pull-Down Piston Pull：200 Kn
• Max.Pull-Down Piston Stroke：5000 mm
• Max.Pulling Force：230 Kn
• Max. Single-Rope Speed：70 M,Min
• Diameter of The Steel Wire Rope：30 mm
• Max. Traveling Speed：1.5 Km,H
• Max.Grade Ability：35%
• Transport Package：Nude
• Specification：16355*3500*3510mm
• Trademark：Acntruck
• Origin：China, Shanghai
• HS Code：8429521200
• Production Capacity：200 Units, Month

EngineEngine BrandCUMMINSEngine TypeQSL9Rated PowerkW242Rotary DriveMax output torquekN . m220Rotary speedr/min7~22Max Drilling Diametermm2000Max Drilling Depthm67(special designed 80)Crowd CylinderMax pull-down piston pushkN200Max pull-down piston pullkN200Max pull-down piston strokem5Crowd WinchMax pull-down piston pushkN250Max pull-down piston pullkN250Max pull-down piston strokem15Main WinchMax Pulling forcekN230Max line speedm/min70Auxiliary WinchMax Pulling forcekN80Max line speed_m/min60Mast RakeSide⁰± 4⁰Forwards± 5⁰Backwards± 15⁰UndercarrigeMax traveling speedkm/h1.5Max grade ability%35Min Clearancemm450Track shoe widthmm800Distance between tracksmm3250 ~ 4400Hydraulic SystemWorking pressureMpa35Overall Drilling Weightt78DimensionWorking conditionmm8968 x 4400 x 22688Transportation condition mm16785 x 3250 x 4305
